An In‑depth Look at Aftermarket Automotive Smart Screens

Portable CarPlay Monitors – An In-depth Look at Aftermarket Automotive Smart Screens

In general terms, a portable CarPlay monitor is the generational successor to the traditional PND (Portable Navigation Device). It replaces the old WIN-CE-based GPS navigation hardware with pre-loaded maps, and adopts a Linux-based display unit built for CarPlay and Android Auto screen projection. Since it relies on a smartphone to function, it is also widely known as an automotive smart monitor.

The concept of an in-vehicle smart monitor first emerged around 2018 with an 8.9-inch dual-camera dash-cam product launched by DDpai for the Huawei HiCar ecosystem. That device pioneered the mainstream integration of mobile-phone-to-car connectivity.

Portable CarPlay monitors now dominate the market for portable aftermarket car devices. Some industry insiders still refer to them as PNDs. Virtually every unit supporting CarPlay is also compatible with Android Auto, so we will not repeat this point in the following text. This category sells primarily in overseas markets. Common English product names include wireless CarPlay monitor, smart monitor, connected monitor system, and CarPlay monitor system. For simplicity, this article sticks to the term “portable CarPlay monitor”.

CarPlay and Android Auto were originally released in 2014. A small number of compatible production vehicles arrived on the market in 2015. Vehicle models supporting CPAA (short for CarPlay and Android Auto) have grown steadily and are now factory-fitted standard equipment on most new cars. Still, this roll-out took place gradually. Almost all vehicles built before 2015, plus a large share of cars produced before 2020, lack native CPAA support. Due to cost constraints and carmakers’ long-term strategies for building proprietary in-car ecosystems, many future vehicle models will ship without built-in CPAA functionality. This creates substantial market opportunities for aftermarket CarPlay-enabled hardware. Related product categories include retrofit head units, wired-to-wireless CarPlay dongles (for vehicles offering only wired CarPlay), replacement rear-view mirror displays, and smart monitors built for motorcycles. This article focuses specifically on the portable CarPlay monitor form factor.

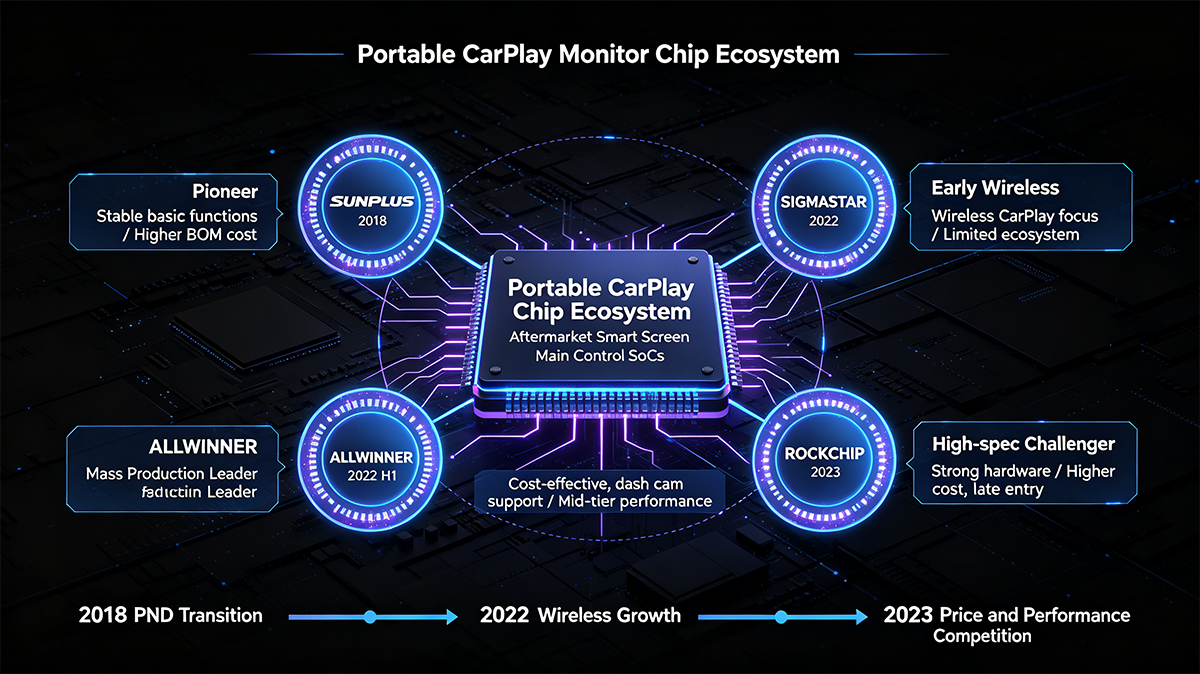

According to industry records, the first-generation portable CarPlay monitors appeared around 2018, mostly powered by SUNPLUS chip solutions. Those early units were wired-only (requiring a physical cable connection to a smartphone), lacked Android Auto support, and sold for USD 300-400 on Amazon. Commercial-grade wireless CarPlay monitors were not widely available until the first half of 2022. Early releases ran on the SIGMASTAR platform, before ALLWINNER-based hardware entered the market. However, these early generations suffered from poor maturity, with frequent connection drops and unexpected reboots. By the second half of 2022, ALLWINNER solutions became stable enough for mass production and added support for front-and-rear dash-cam recording. Market demand then surged, and ALLWINNER quickly became the dominant chip platform.

As an early pioneer, SUNPLUS maintained respectable market share, yet its higher bill-of-material cost and lack of dash-cam functionality led to gradual decline. ROCKCHIP, a long-time competitor of ALLWINNER, saw several solution vendors roll out products with stronger hardware specifications. Nevertheless, high costs, imperfect product experience and late market entry prevented ROCKCHIP from mounting real competitive pressure. SIGMASTAR, an early entrant, largely vanished from the segment for reasons related to chip-maker policies and IDH partners. It was not until late 2023 that another solution provider re-entered the space with a differentiated solution targeting niche markets. Chip developers including Ezviz-affiliated Goke and Eeasytech, which have gained traction in dash-cam and security camera segments, are also preparing to launch competing hardware.

When it comes to operating-system platforms, Linux 4.9 is currently the most widely deployed OS for portable CarPlay monitors. It should be noted that this Linux version reached its End-of-Life (EOL) back in 2023 and no longer receives security patches or maintenance updates. To date, no solution vendor has publicly released hardware running newer Linux kernel builds.

To satisfy local in-car media playback requirements, a small number of suppliers offer CarPlay monitors built on Android, spanning Android 10 through Android 14. These are powered by Spreadtrum quad-core or octa-core SoCs. Some ALLWINNER partners are preparing their own Android-based releases to compete. Android-powered units carry higher hardware costs, yet deliver richer software ecosystems and greater expandability. When paired with GPS modules, they support offline map navigation — a valuable feature for niche use-cases such as off-roading, overlanding and commercial freight transport where reliable standalone navigation is critical. One major downside is dash-cam image quality (IQ): the ISP hardware on these Android platforms yields noticeably poorer video quality compared with Linux-based alternatives.

RTOS represents another operating-system option, though it sees more limited adoption, mainly on the ALLWINNER F133 platform (commonly referred to as the “light-weight system”). Unlike most competing platforms built around ARM Cortex-A7 or A53 single-/dual-core chips running at 1.2 GHz, the F133 uses an RISC-style CPU clocked at merely 533 MHz. This streamlined hardware-software stack delivers low cost, solid stability and extremely fast boot-up times, giving it considerable market share driven by high cost-performance. The main limitation of the F133 is native lack of dash-cam recording capability. Some vendors add this function via external auxiliary modules. Recently the chip manufacturer increased on-board RAM, and new revisions supporting dual-channel dash-cam recording are forthcoming. However, video encoding uses MPEG rather than mainstream H.264 / H.265 codecs, producing much larger video files, and real-world image quality remains to be validated. This new chip variant may trigger another round of industry price competition.

While portable CarPlay monitors improve the driving experience and bring modern connectivity affordably to older-model vehicles, most commercially available products suffer from noticeable flaws in industrial design, build quality and real-world usability, alongside severe market homogenization.

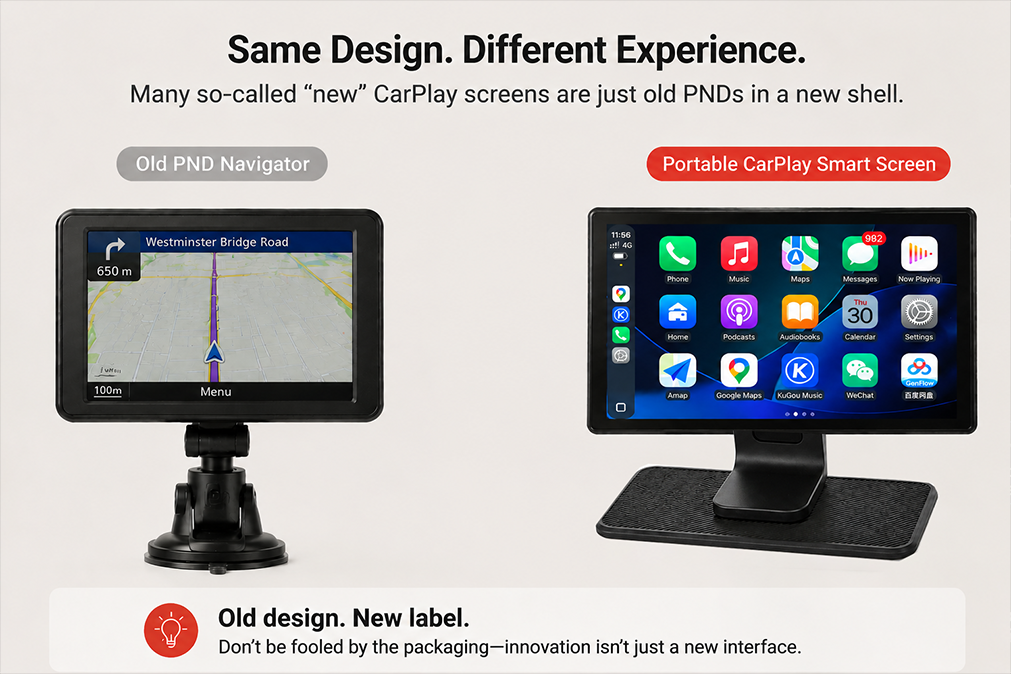

Exterior designs largely copy the form factor of decade-old PND hardware; the only major update has been switching Mini-USB ports to USB-C. Mounting approaches, power-supply schemes and rear-camera wiring layouts have barely changed for years, leaving many units looking dated and crudely finished.

This status quo stems from how the industry supply chain is structured. Although portable CarPlay monitors evolved directly out of the PND ecosystem, many original PND-era IDH solution houses have moved on: some shifted to security-camera projects, others transitioned to OEM automotive-grade development, and many simply shut down. As the broader aftermarket automotive electronics market has contracted, portable CarPlay monitors remain a relatively niche category. Large, technically capable IDHs tend to overlook this segment. Most current solution providers come from small dash-cam development firms. Facing fierce competition and thin technical barriers, these companies rush products to market to capture short-term profit opportunities, frequently adopting existing reference designs. Small engineering teams prevent heavy investment into original development. Manufacturers prioritize basic function and reliability while paying far less attention to appearance, build quality, human-machine interaction, reliability validation and compliance certification.

Furthermore, solution houses typically supply only main circuit boards. All other key components — housings, display panels, touch panels, speakers, power modules, mounting brackets and cameras — are sourced from separate, highly fragmented upstream suppliers. Original design changes require substantial R&D investment for every single part. Re-using proven legacy PND mechanical designs lets brands leverage mature existing supply chains to launch products quickly at low cost. Meaningful innovation demands close cross-supplier collaboration across multiple links of the value chain. Since component vendors operate largely independently, even modest product improvements become difficult to implement without aligned cooperation across the ecosystem.

Final-assembly OEMs act essentially as assemblers and packagers. Product quality and grade are heavily constrained by upstream component suppliers. Most so-called high-end customizations amount to superficial tweaks to ID appearance and GUI graphics. Within this small, relatively low-margin aftermarket segment, even leading solution providers are limited in engineering capacity, capital resources and industrial-design competence. Widespread product similarity sparks cut-throat price wars and shrinking profit margins. Faced with risky, costly original R&D, most market participants choose to stick with proven legacy designs.

We will dive deeper in future articles into concrete product improvement directions, the rationale behind design changes, overall industry trends, and the outlook for both B-to-B and end-consumer markets.
