Design B CarPlay
Connected Monitor System 550A
Wireless CarPlay and Android Auto
Display size
Built-in Dash Cam

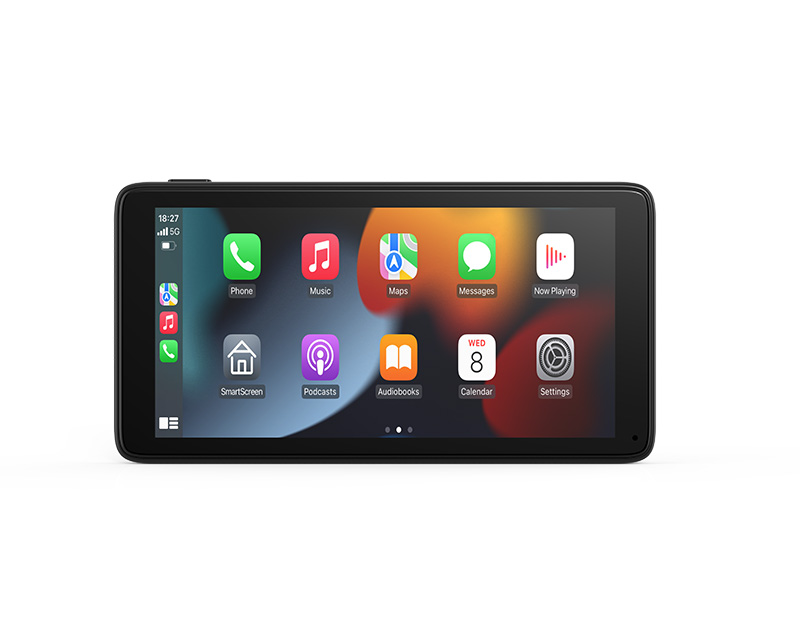

Universally compatible with all vehicles. Effortless Plug-and-Play via Type-C Car Charger Port. Presenting a 5.5-inch IPS touchscreen display that sets itself apart from the market with its unique size, blending compact beauty with exquisite precision. Furthermore, it offers versatile mounting options to suit your preferences.
USP
-
01

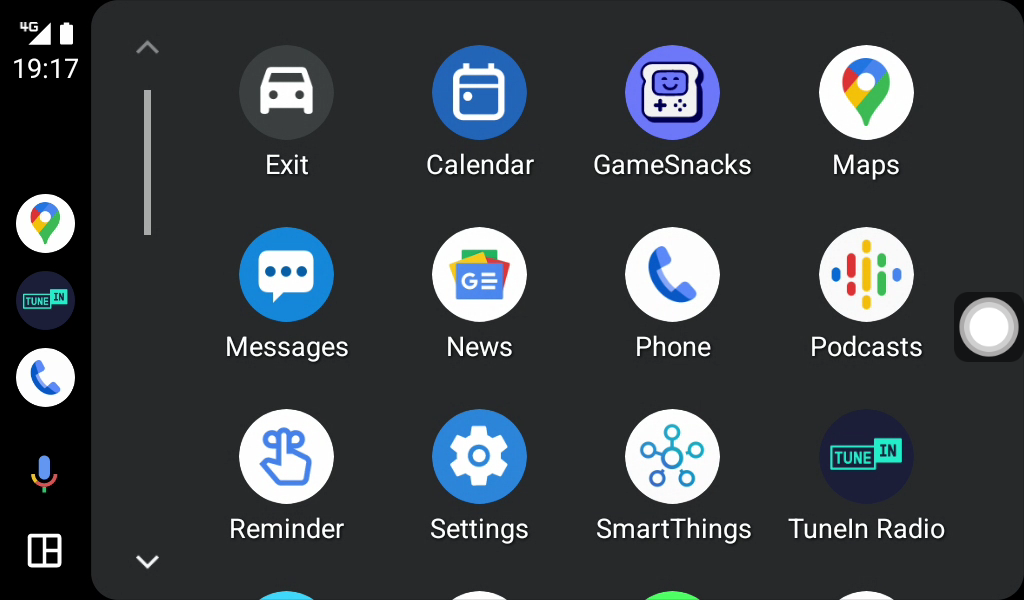

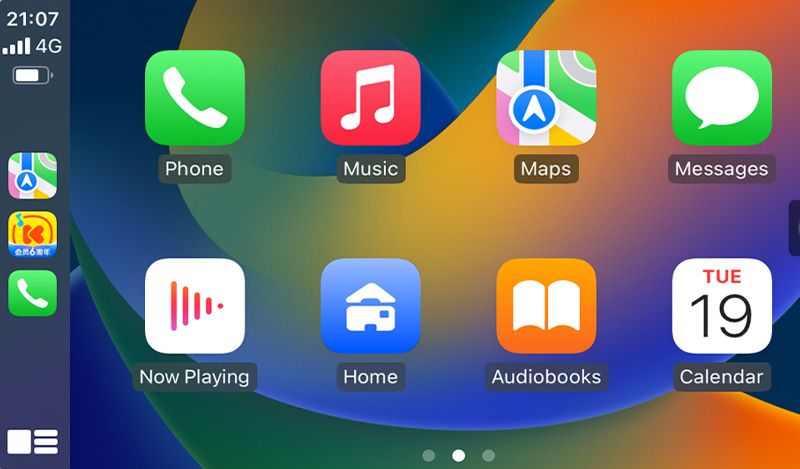

Supporting CarPlay and Android Auto.
-
02
Offering seamless Bluetooth integration, allowing you to easily connect your devices without the hassle of cables, enhancing your driving experience
-
03
Equipping full high definition display allows easy operation through intuitive HMI design.
-
04
Featuring a 5.5-inch IPS touchscreen display, it's a standout size in the market that combines compact elegance with refined sophistication

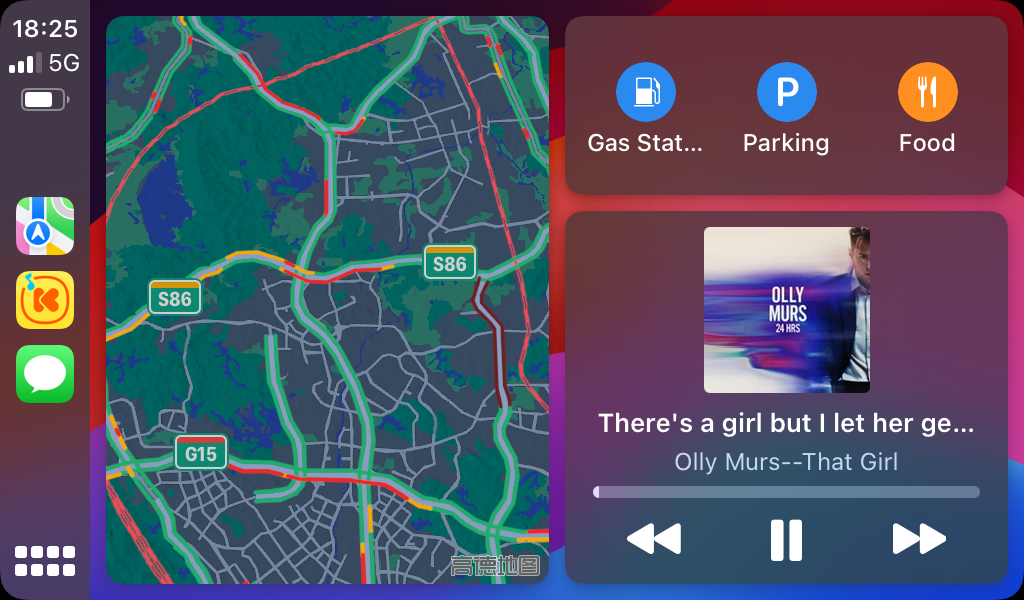

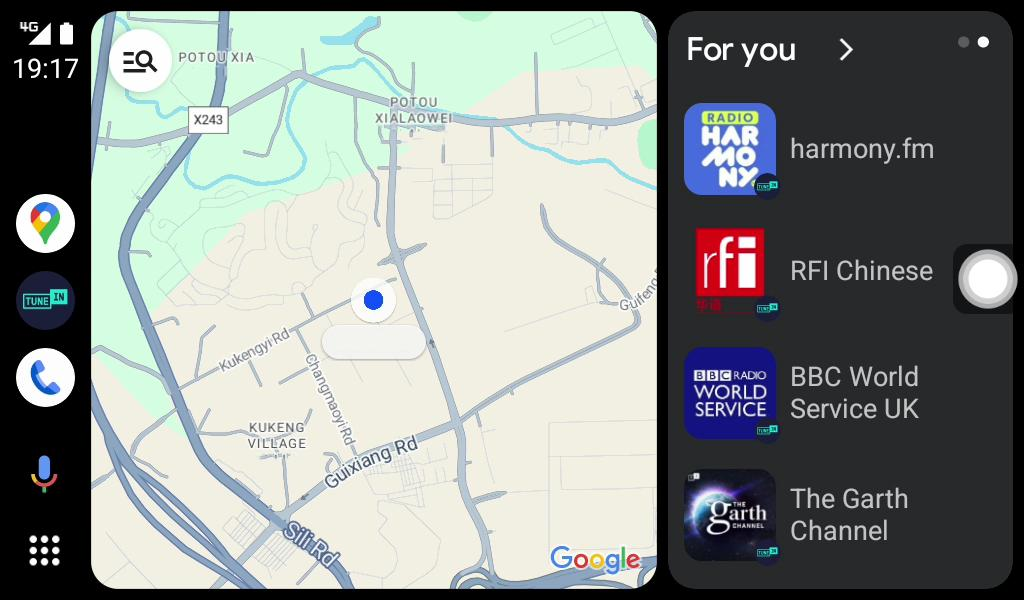

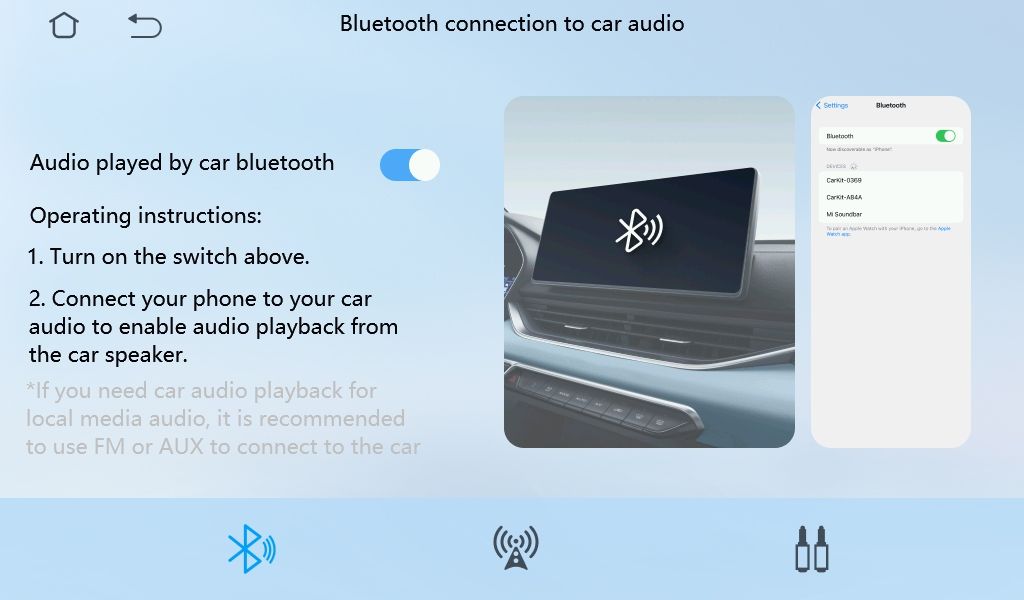

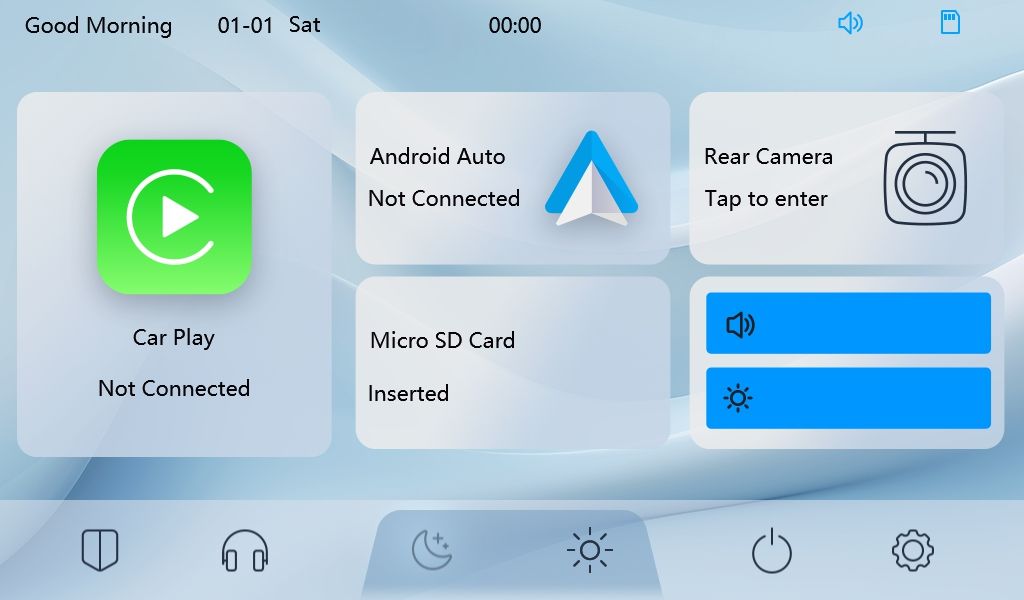

550A GUI

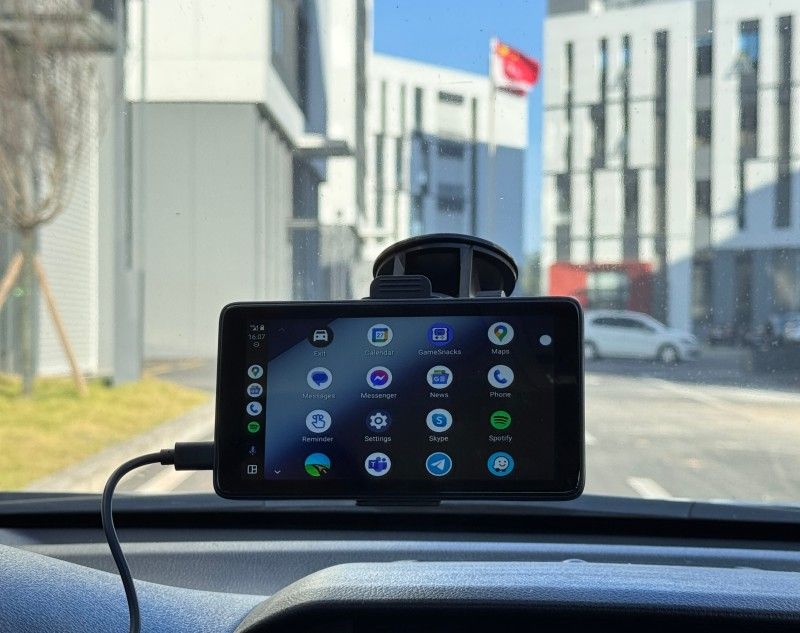

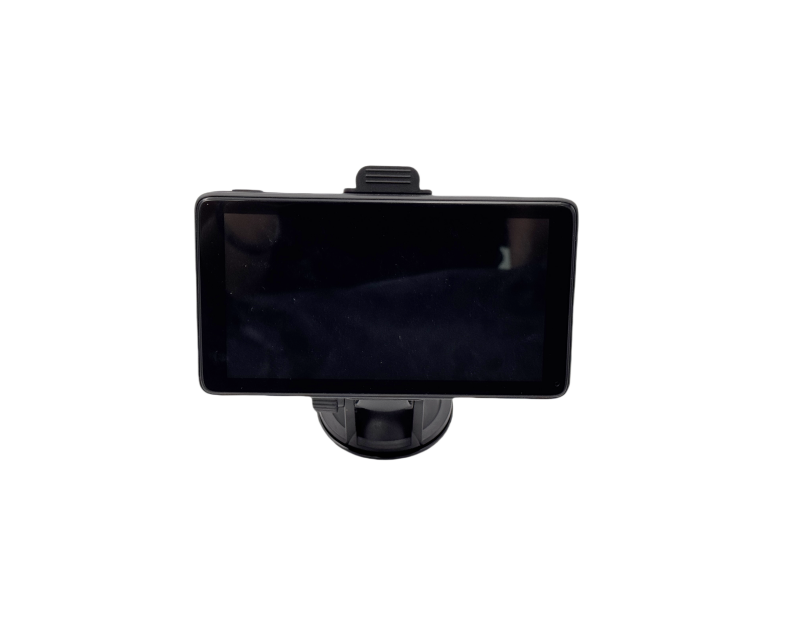

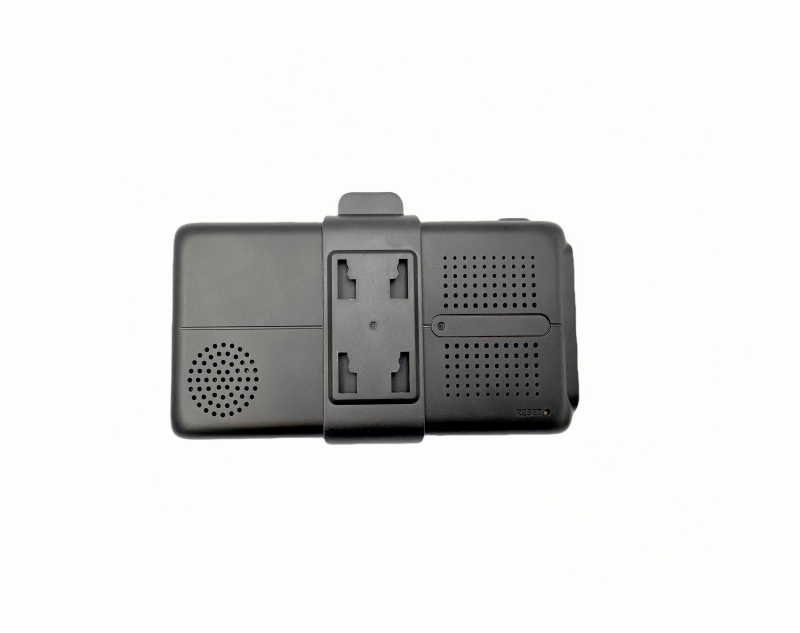

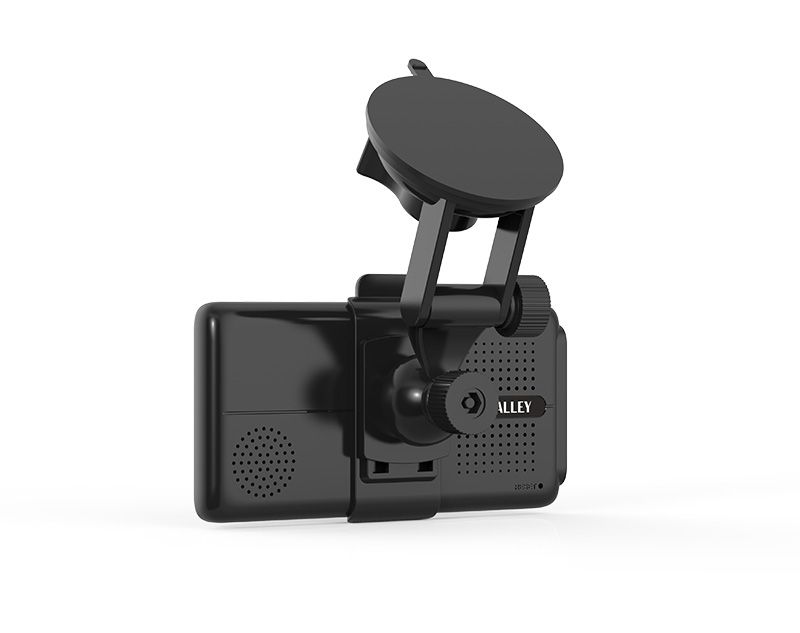

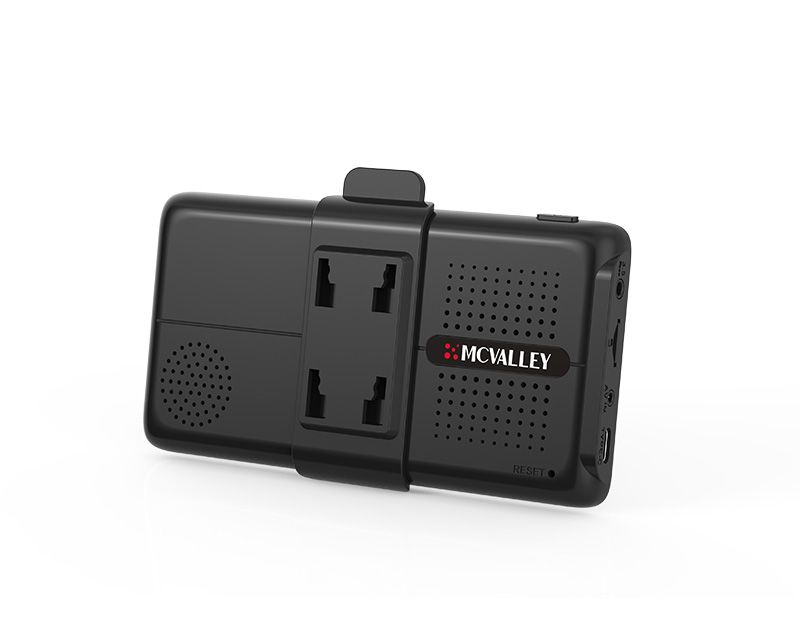

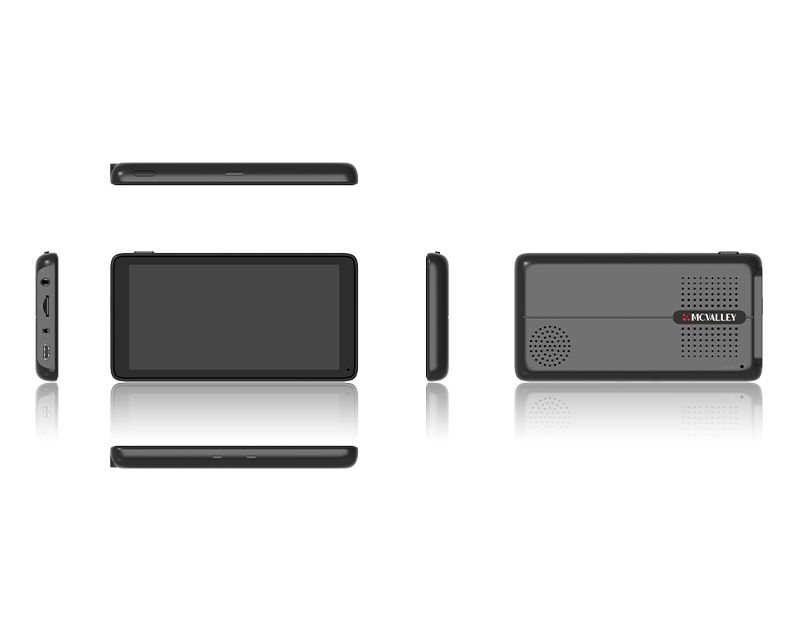

PRODUCT PHOTOS
SPECIFICATION
| 550A Specifications | ||
| General | ||
| Processor: | F133-B, RISC CPU | |
| FLASH： | 16MB | |
| DDR: | 64MB | |
| Display type: | Glass capacitive multi-touch IPS | |
| Display size&resolution: | 5.5 inch, 960*480 | |
| Display brightness: | 650Nit | |
| Battery： | NO | |
| Camera Features | ||
| Front lens | Resolution/FPS | N/A |
| Aperture/construction: | N/A | |
| Rear lens | Resolution/FPS | AHD 1080p/25fps |
| Aperture/construction: | F2.0/2G2P | |
| extention Cable length: | 5.5M | |
| Other features: | Switch to rear view image automatically while reversing, parking assistance line is adjustable | |
| Loop recording | N/A | |
| Parking monitor: | N/A | |
| Wireless connections&sensors | ||
| WiFi: | Support carplay or Android Auto | |
| BT: | 5.0 | |
| FM transmitter: | Yes | |
| GPS: | No | |
| G-sensor: | No | |
| I/O Ports | ||
| Mic: | Yes-Electret MIC-1.5*4MM, -34DB | |
| Speaker: | 8ohm,2W | |
| Voice command: | Via Siri/Google assistant | |
| AUX socket | Yes, 3.5mm | |
| Rear Camera connector: | 2.5mm socket | |
| Micro SD card slot: | Yes, up to 128GB | |
| External GPS antenna socket | N/A | |
| Power input： | Type C | |
| Physical Buttons: | Power, Reset | |
| Advanced features | ||
| Light sensor | N/A | |
| ADAS | N/A | |
| Power consumption | ||
| Working voltage： | DC5V | |
| Working current： | <1A | |
| Quiescent current： | <10MA | |
| Power supply: | Car charger or hardwire kit(optional) | |
| Software and update | ||
| OS: | RTOS | |
| Firmware update: | Through Micro SD card, OTA will be available in future | |
| Environment | ||
| Operating Temp： | （-10℃-70℃） | |
| Storage Temp： | （-20℃-80℃） | |
| Mechanical | ||
| Product dimensions: | ||
| Product weigiht: | 137g | |

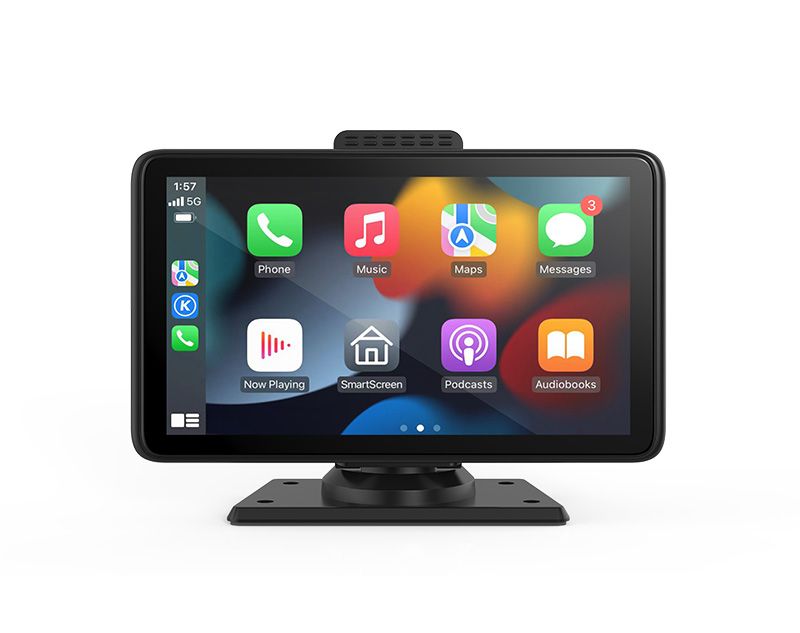

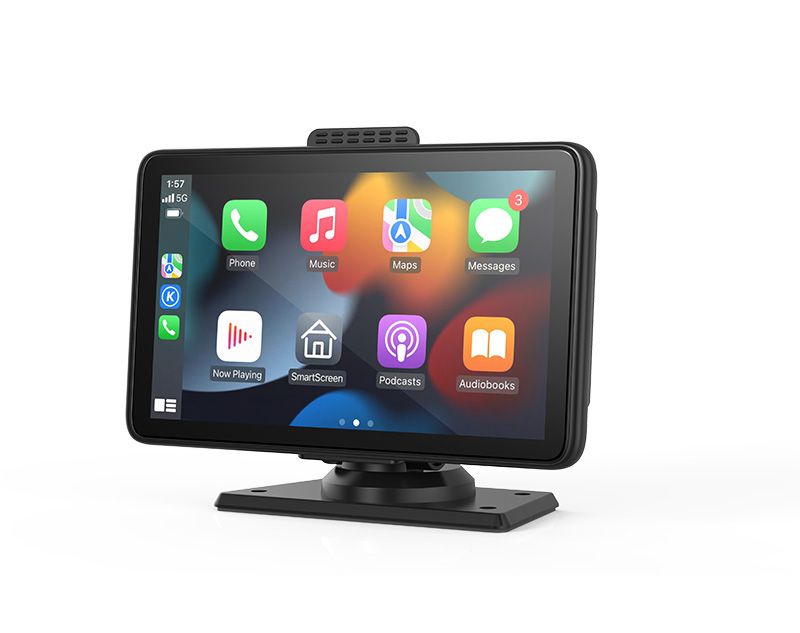

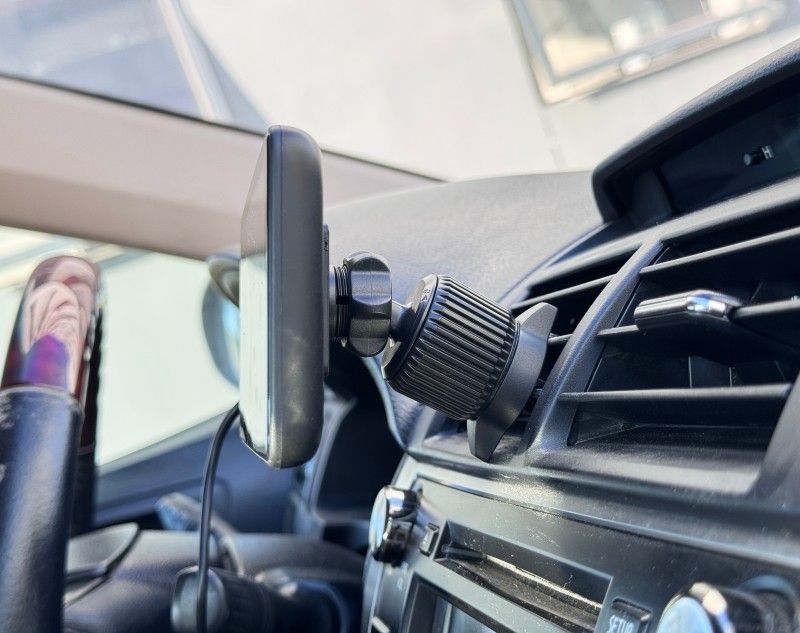

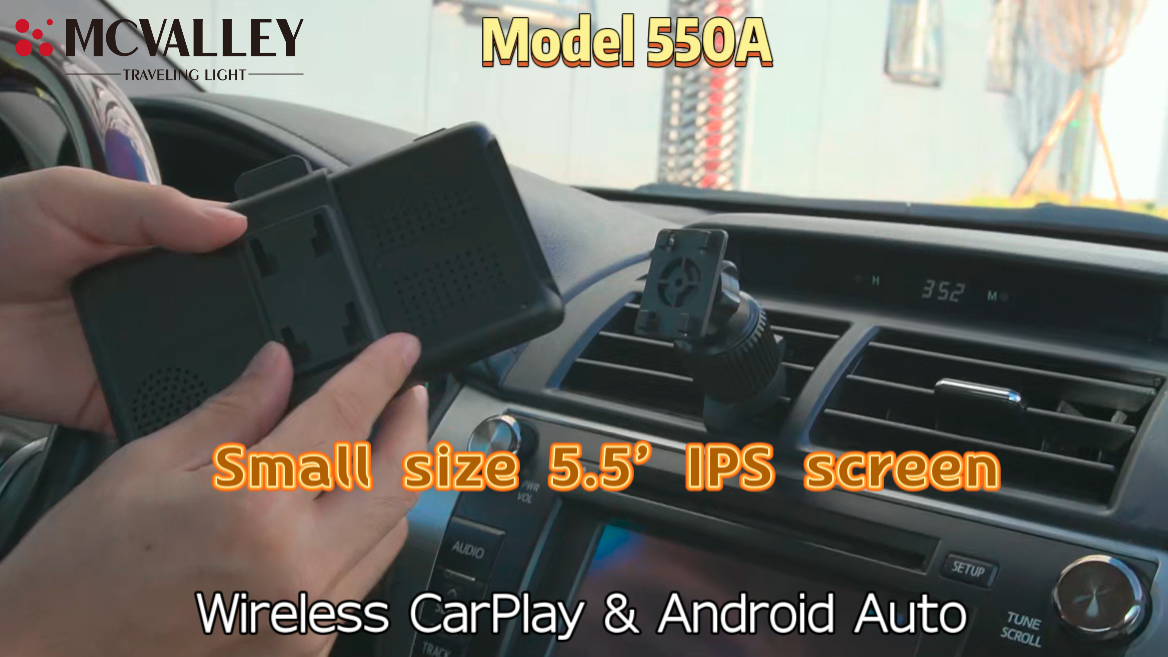

| Install method: | Suction mount, dashboard mount, airvent mount | |
In The Box
Main device
Cradle

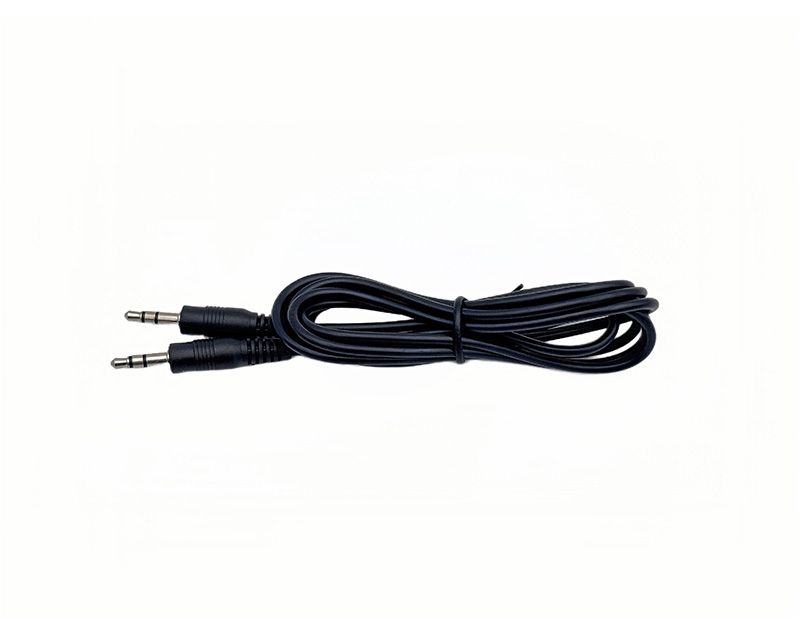

AUX cable

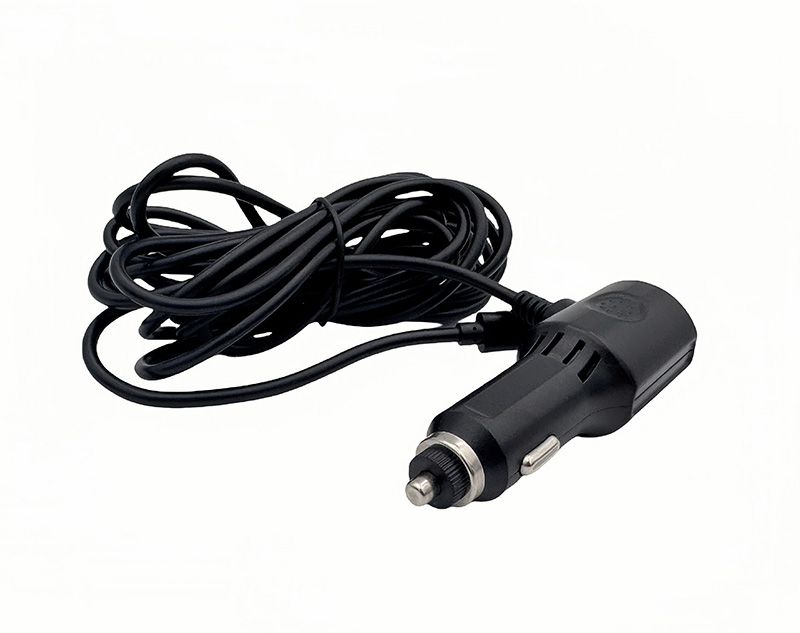

Car Charger

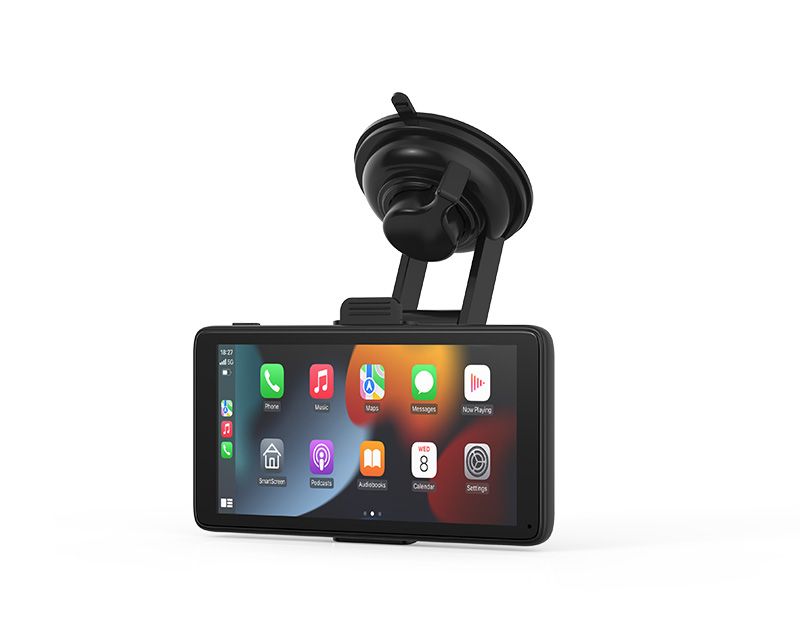

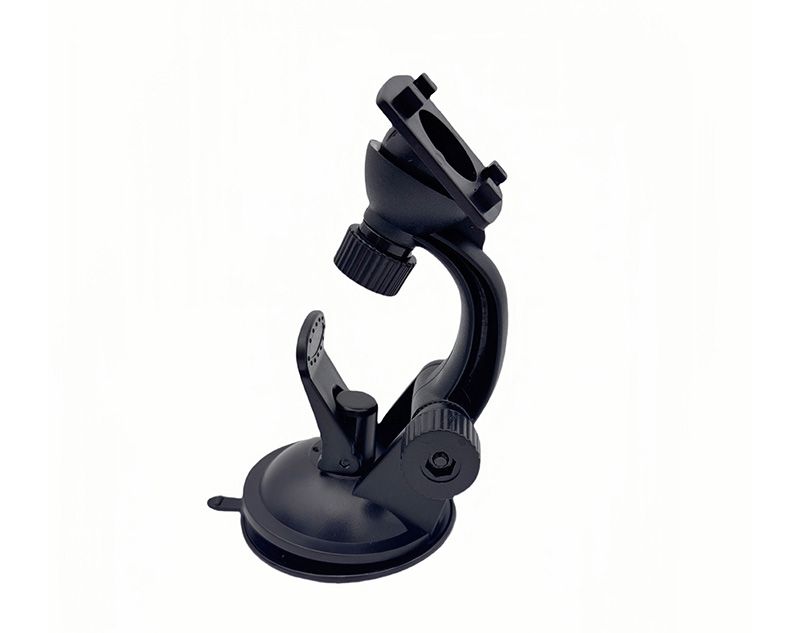

Suction Mount
User Manual
Accessories
ALL IN ALL, WE CARE THE CUSTOMER EXPERIENCE A LOT, AND WE PAY BIG EFFORT TO MAKE OUR PRODUCT BEST POSSIBLE.
