Design Series E
This product is compatible with all car models. Simply power it via the TYPE-C port using the car charger to upgrade your vehicle with wireless CarPlay. The device features a high-definition IPS screen, providing crystal-clear visuals for an immersive driving experience.
USP
-
01
Supporting CarPlay and Android Auto, providing universal compatibility with your smartphone
-
02
Offering seamless Bluetooth integration, allowing you to easily connect your devices without the hassle of cables, enhancing your driving experience
-
03
Providing an intuitive touch screen interface, navigate through apps and settings effortlessly.
-
04
Equipping with a dual-channel dash camera, this wireless connected monitor enhances your vehicle's safety by providing clear, high-definition visuals of both front and rear views, helping to capture every moment on the road.

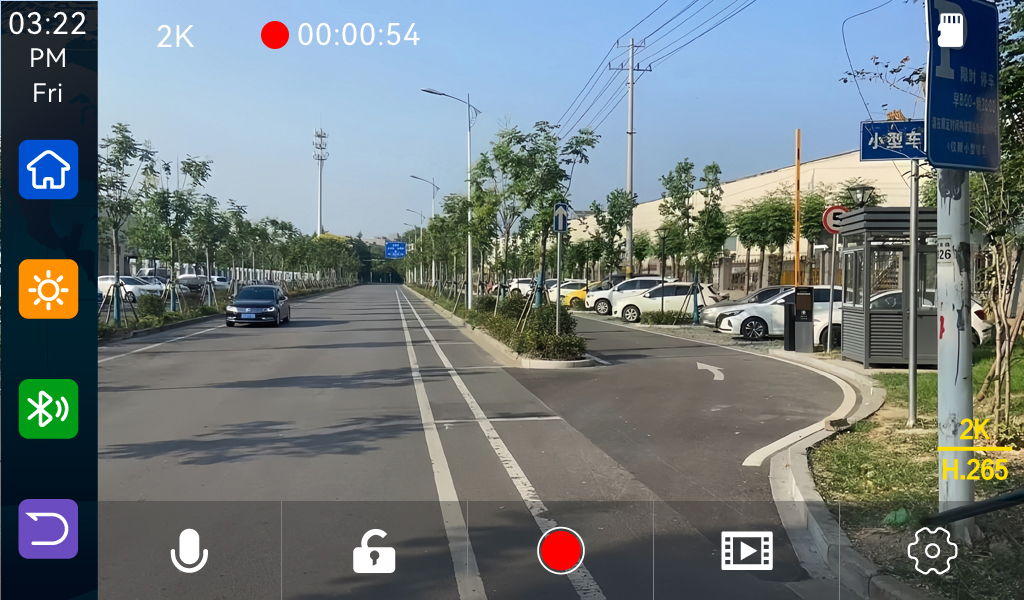

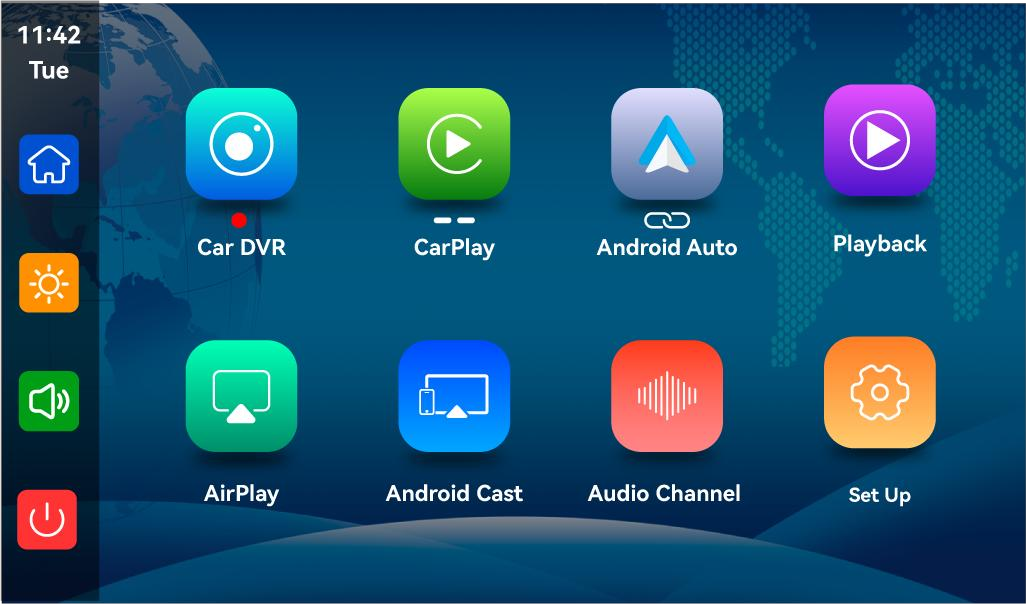

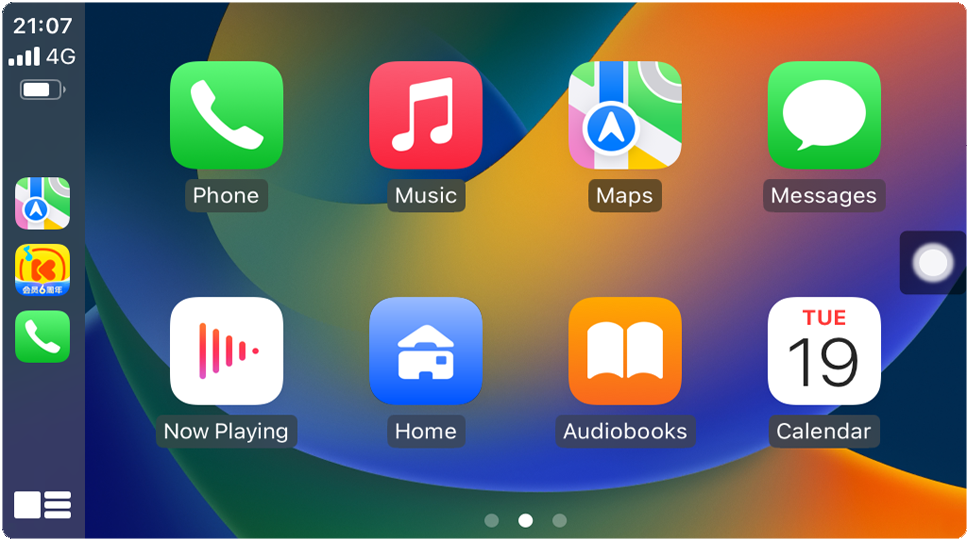

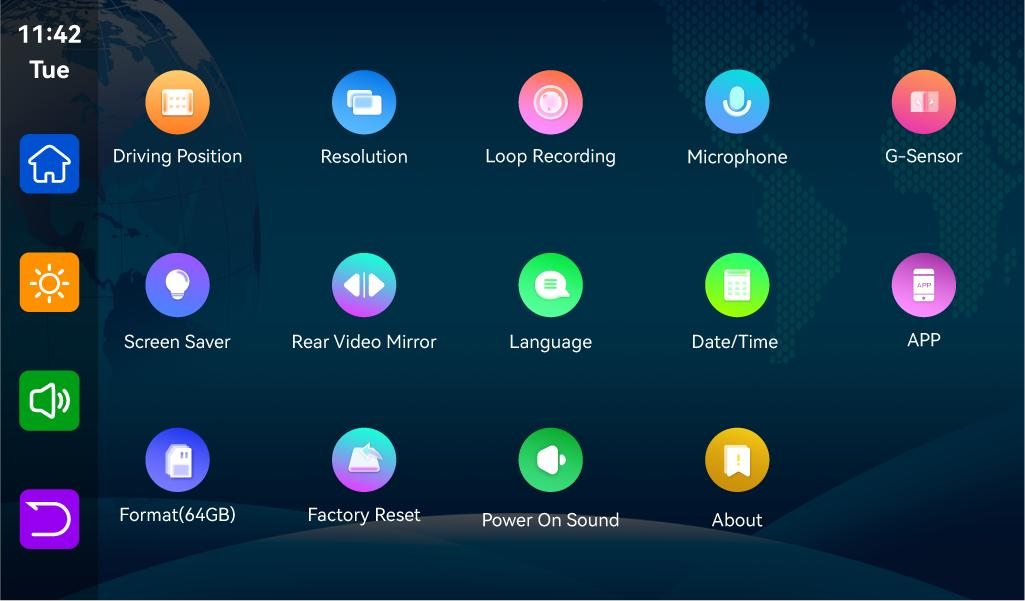

719 GUI

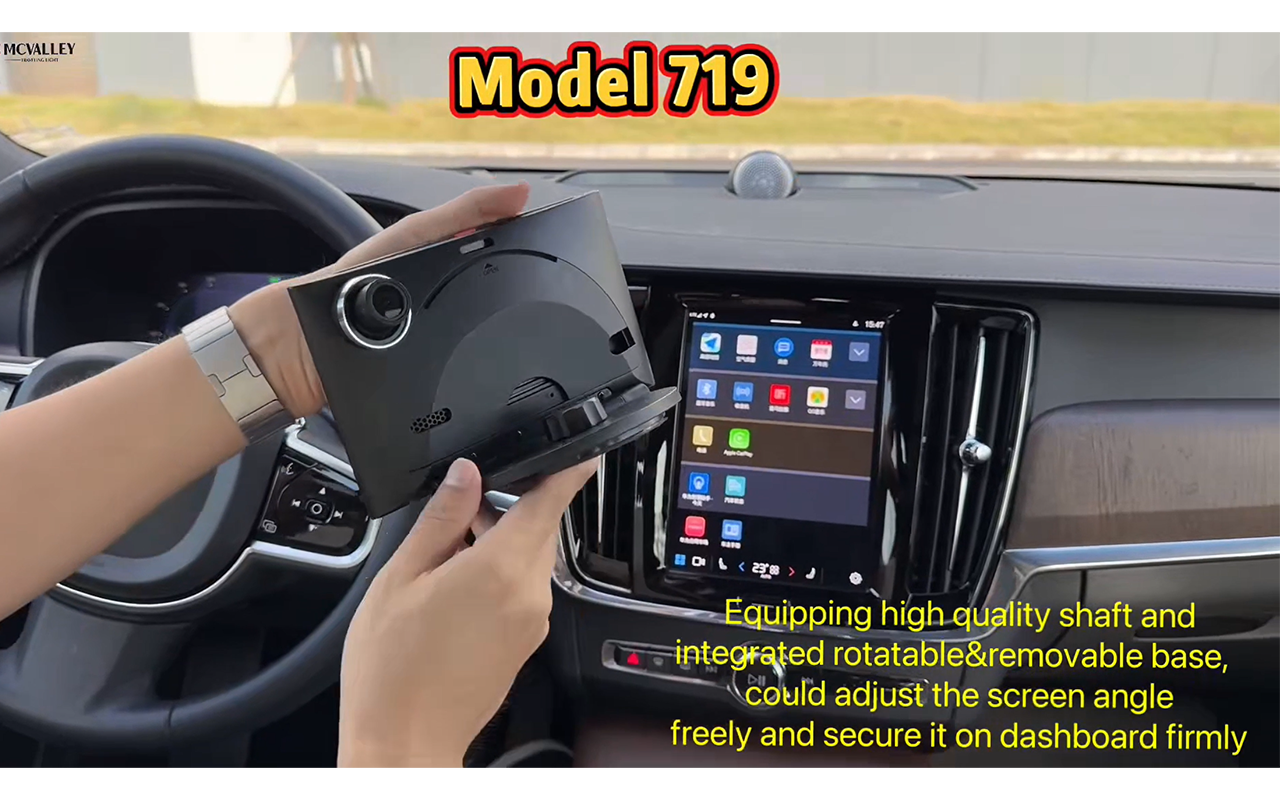

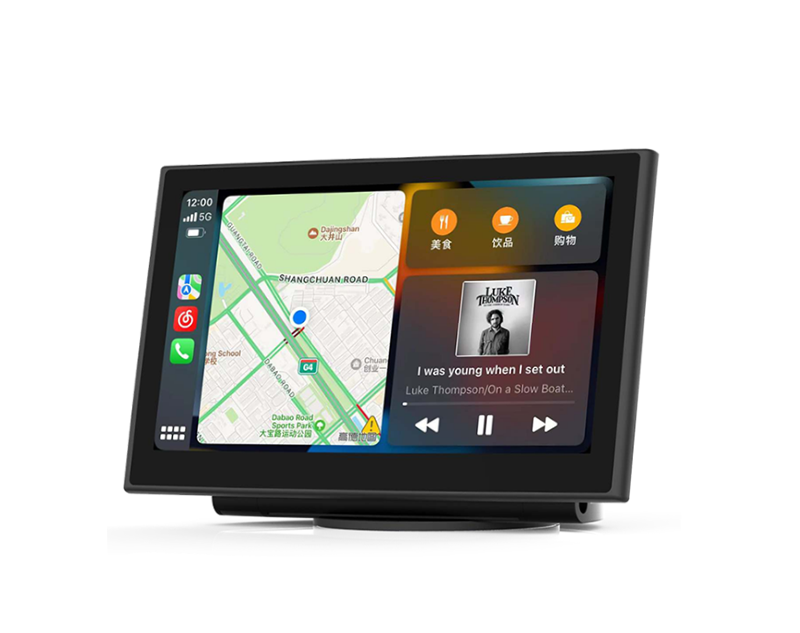

PRODUCT PHOTOS
SPECIFICATION
| 719 Specifications | ||
| General | ||
| Processor: | AW V833,Cortex A7@1.2GHz | |
| Storage： | 128MB | |
| Memory: | 256MB | |
| Display Type: | Glass capacitive multi-touch IPS | |
| Display Size&Resolution: | 7.0inch, 1024*600 | |
| Display Brightness: | 495Nit | |
| Battery： | Cell battery（for RTC） | |
| Wireless Connections&Sensors | ||
| WiFi: | Dual-band （2.4 GHz & 5.0 GHz） | |
| BT: | 4.2 | |
| FM Transmitter: | Yes | |
| GNSS: | No | |
| G-sensor: | Yes | |
| Physical Interface | ||
| Mic: | Yes-Electret MIC-1.5*4MM, -34DB | |
| Speaker: | 8ohm,2W | |
| Voice Command: | Via Siri/Google assistant | |
| AUX Socket: | Yes, 3.5mm | |
| Rear Camera Connector: | 2.5mm socket | |
| Micro SD card slot: | Yes, up to 256GB | |
| Power Input： | Type C | |
| Light sensor: | N/A | |
| Camera Features | ||
| Front Cam | Resolution/FPS: | Onboard type, 1080p/25fps |
| Aperture/construction: | F2.0/2G2P | |
| Rear Cam | Resolution/FPS: | AHD 1080p/25fps |
| Aperture/construction: | F2.0/2G2P | |
| Extention Cable length: | 5.5M | |
| Other features: | Switch to rear view image automatically while reversing | |
| Wireless Rear Cam: | N/A | |
| Loop recording: | Yes, 1min/3min/5min | |
| Parking monitor: | Optional (has to be used together with 3 wires hardwire kit) | |
| Buttons | ||
| Physical Buttons: | Power, Reset | |
| Touch Key: | N/A | |
| Power Consumption | ||
| Working voltage： | DC5V | |
| Working current： | <3A (typical) | |
| Quiescent current： | <10MA | |
| Power supply: | Car charger or hardwire kit(optional) | |
| Software And Update | ||
| OS: | LINUX 4.9 | |
| Firmware update: | Through Micro SD card, OTA will be available in future | |
| Environment | ||
| Operating Temp： | （-10℃-70℃） | |
| Storage Temp： | （-20℃-80℃） | |
| Mechanical | ||
| Product dimensions: | 177*106*37.4mm | |
| Product weigiht: | 433g | |
| Install method: | Dashboard mount | |
In The Box
Main device
AUX cable
Car Charger
User Manual

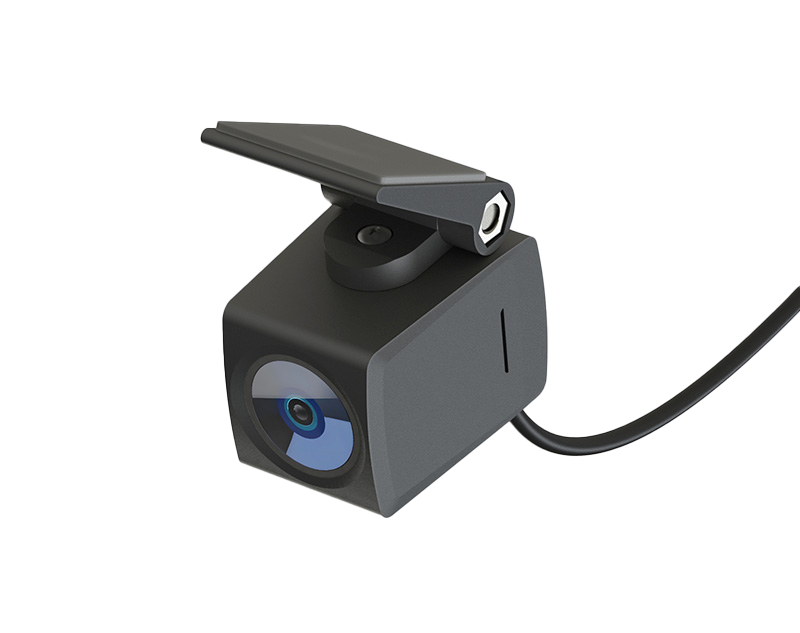

Rear Cam
Base disc
Accessories
AUX cable
Rear Cam

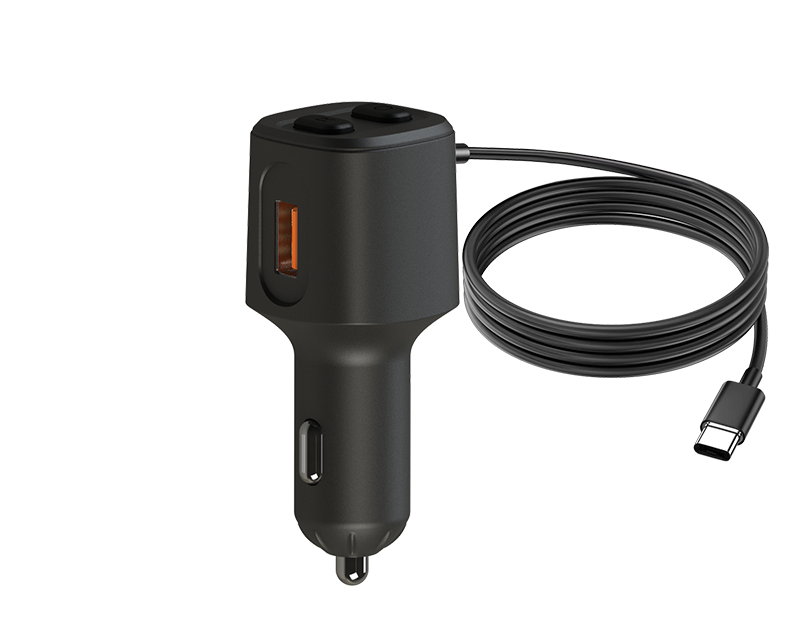

Car Charger

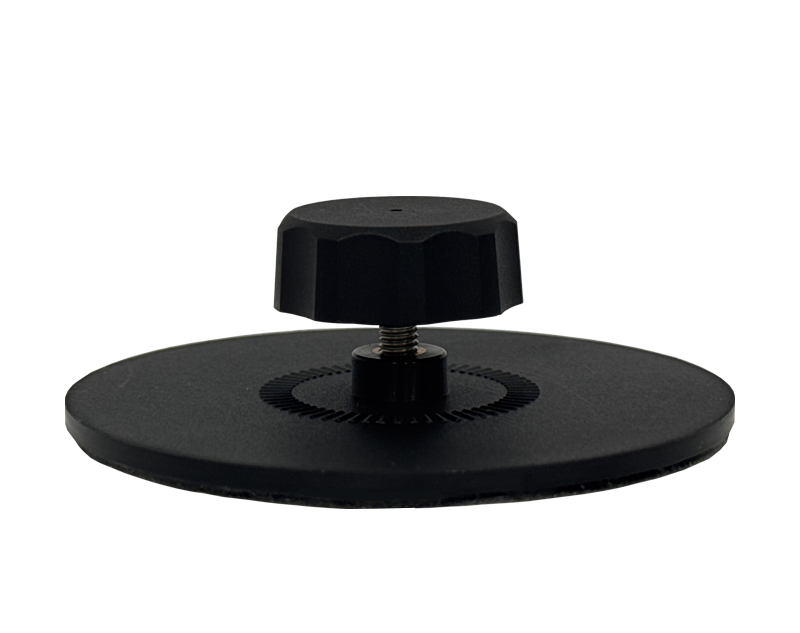

Base Disc
