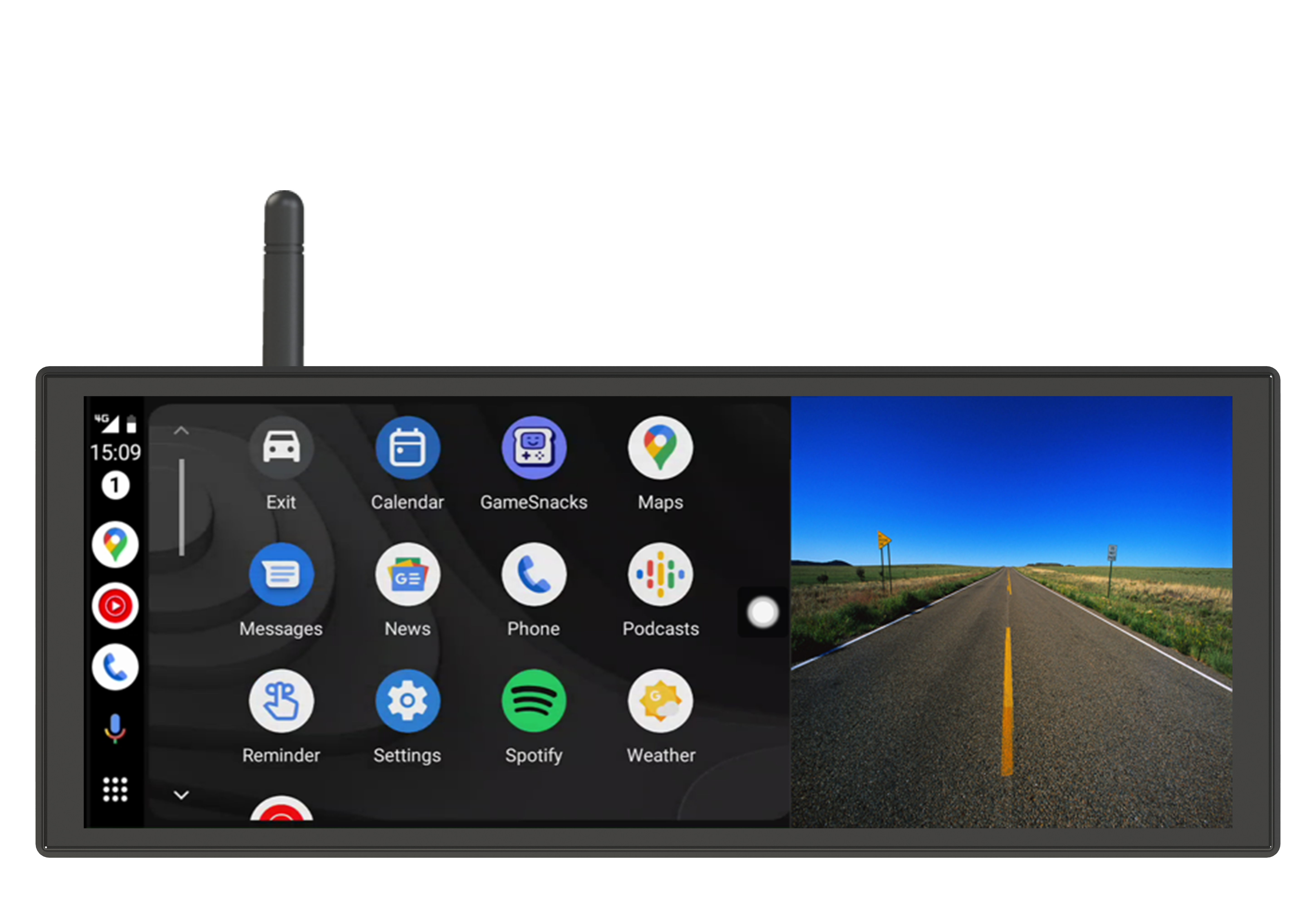

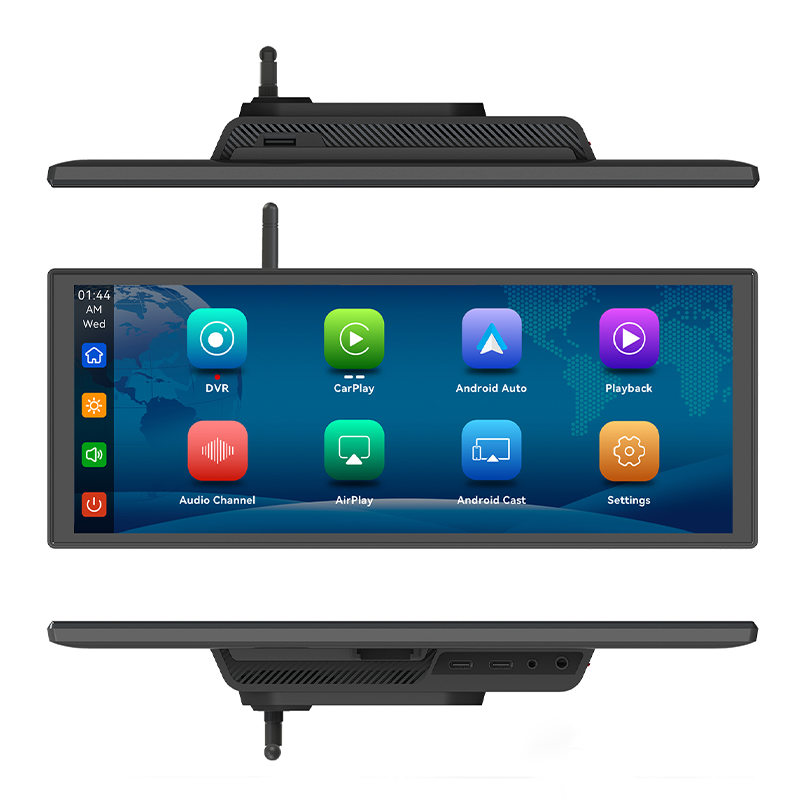

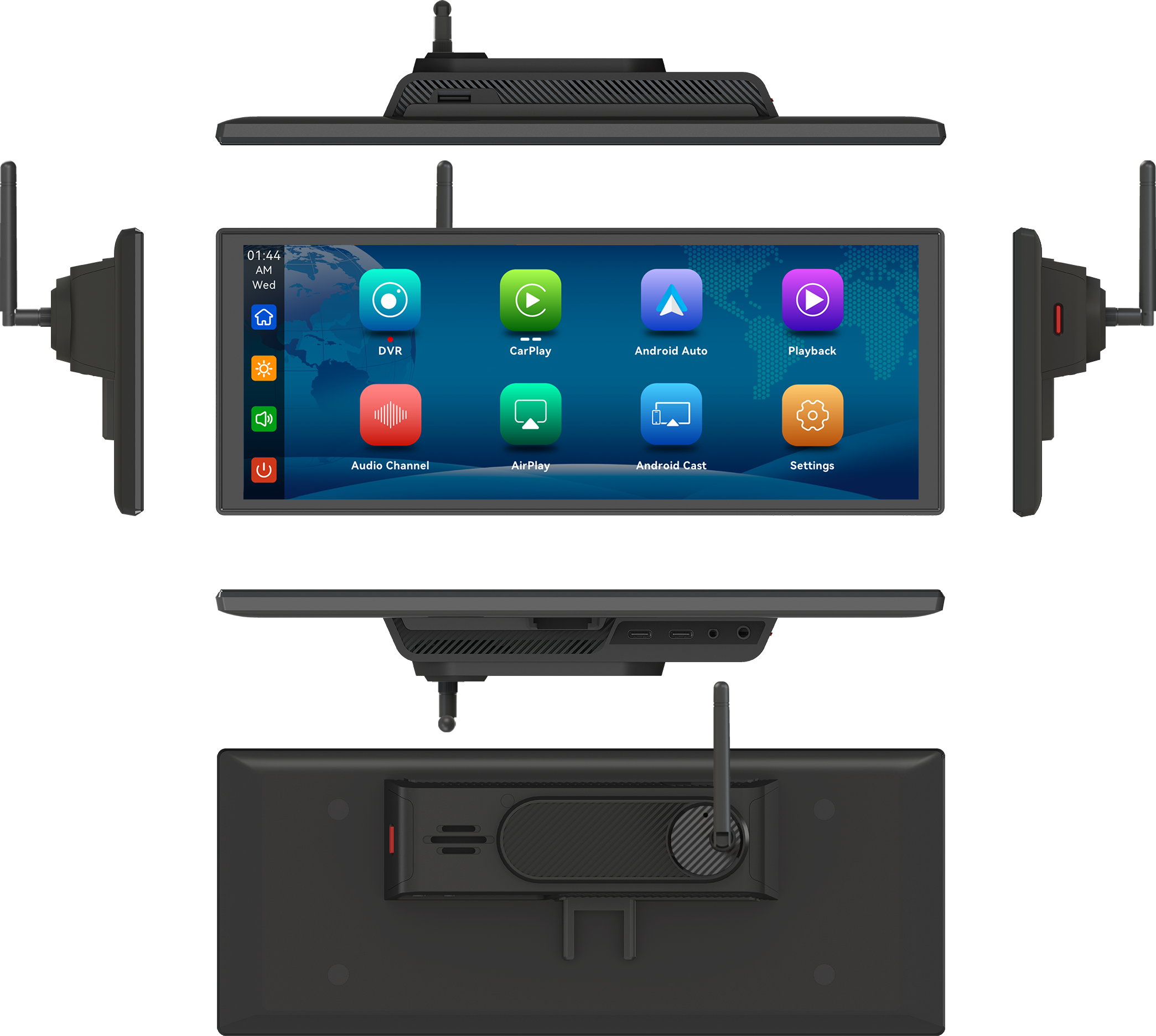

Connected Monitor System 1025W

Wireless CarPlay and Android Auto with built-in dash cam and wireless rear camera

Built-in Dash Cam

Yes No

This product is compatible with all car models. Simply power it via the TYPE-C port using the car charger to upgrade your vehicle with wireless. Featuring an exclusive private mold design, with an 10.25-inch IPS high-definition display, it provides a vibrant and clear visual experience. Featuring built-in GPS and supporting wireless CarPlay/Android Auto.

USP

01

Exclusive private mold and supporting CarPlay and Android Auto.

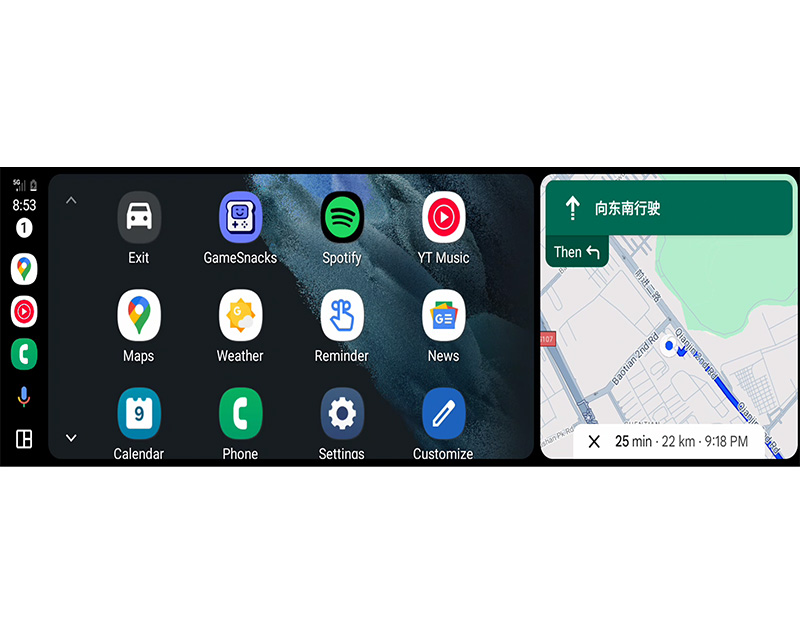

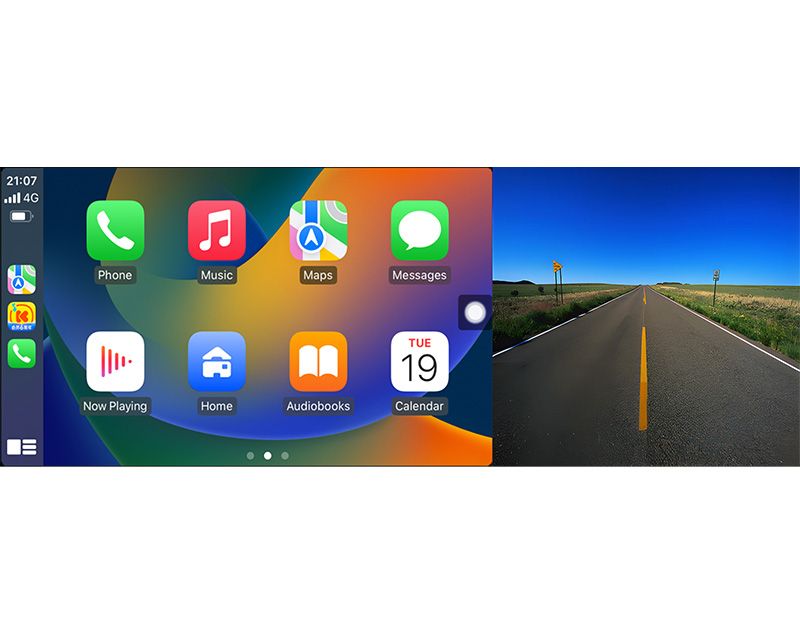

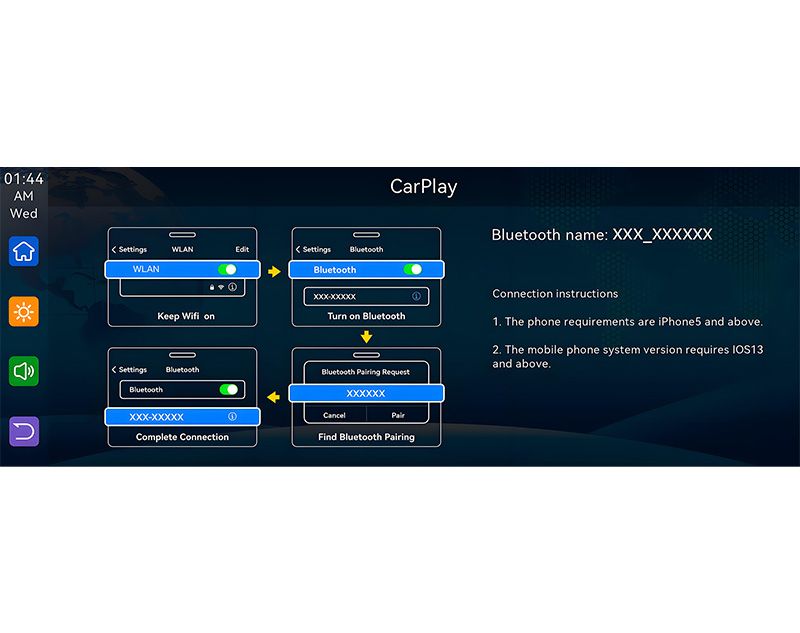

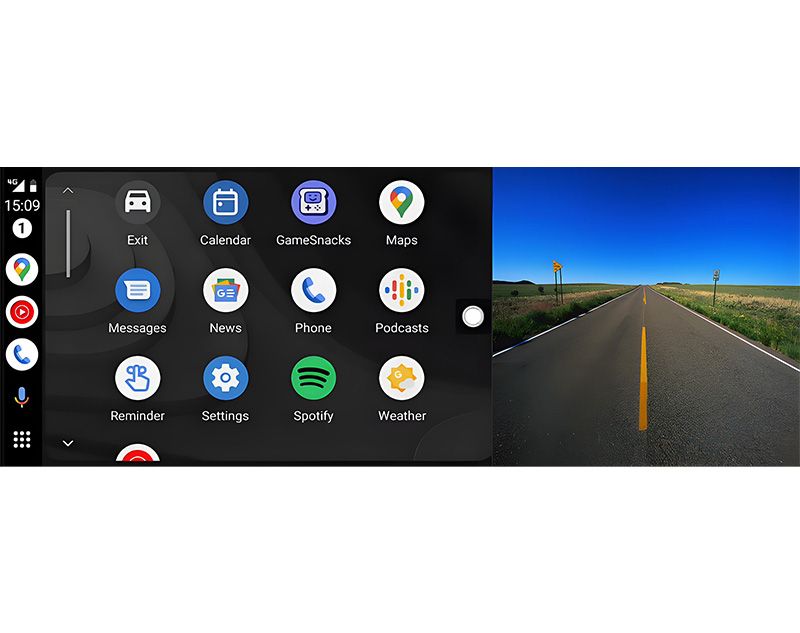

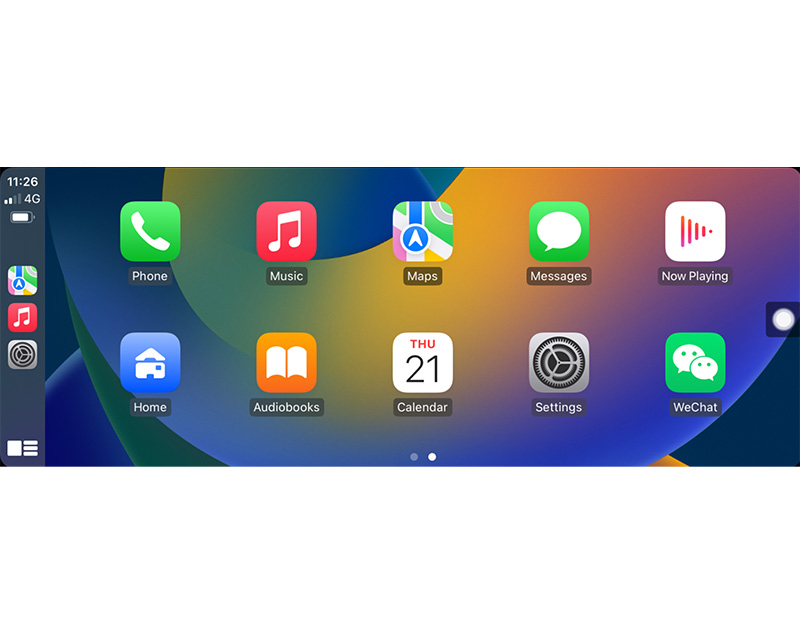

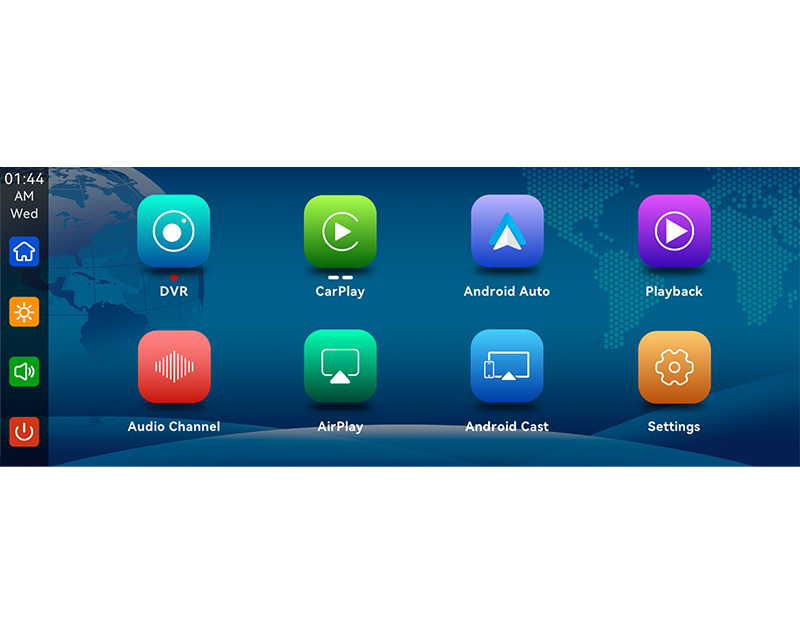

GUI

SPECIFICATION

1025W Specifications
General
Processor:		Dual-core A53 1.2Ghz Sigmastar SSC8836Q
FLASH：		128MB
DDR:		256MB
Display type:		Glass capacitive multi-touch IPS
Display size&resolution:		10.25.0inch, 1920*720
Display brightness:		495Nit
Battery：		Cell battery（for RTC）
Camera Features
Front lens	Resolution/FPS	1080p/25fps

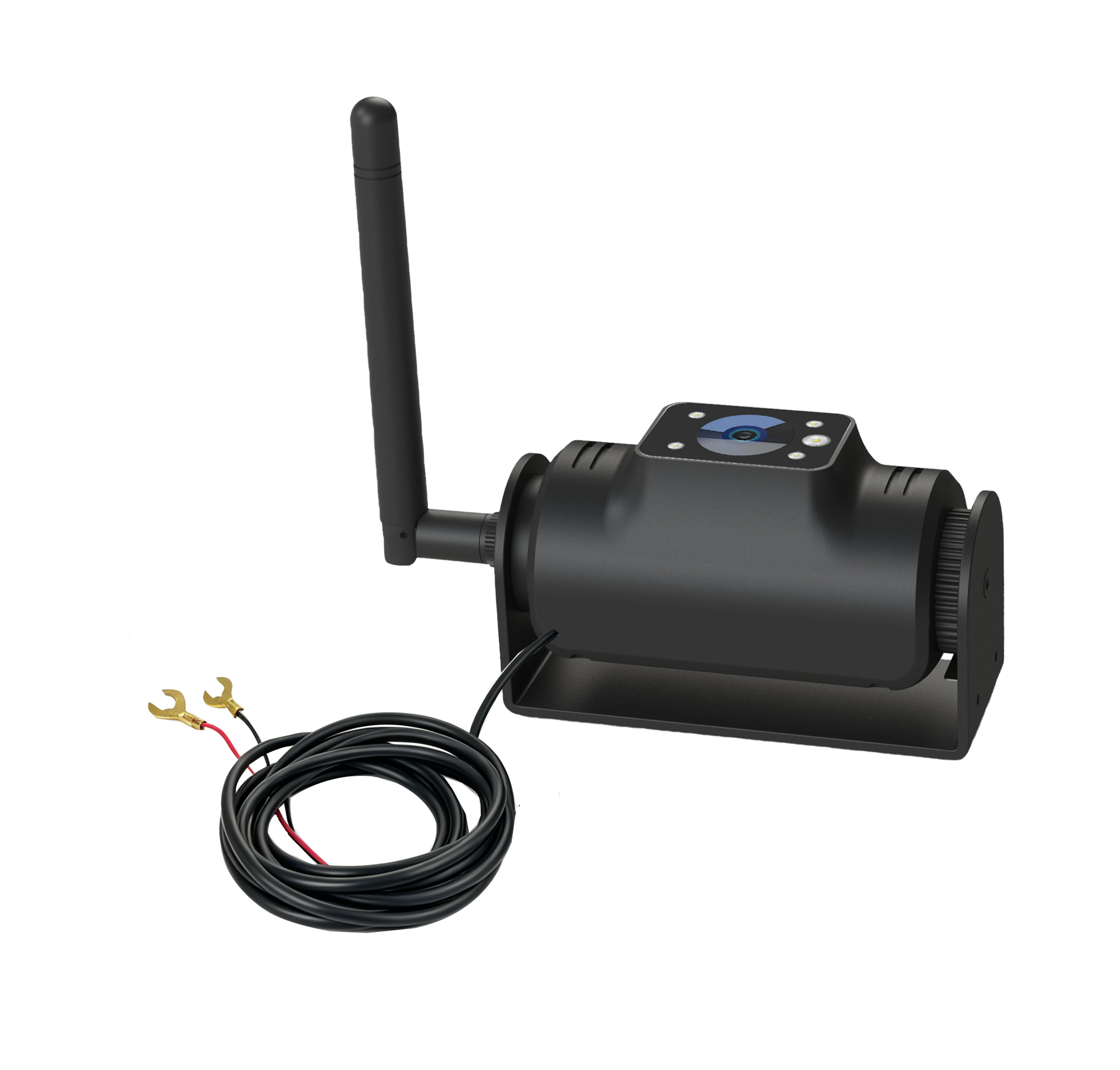

Wireless Rear Camera	Resolution/FPS	1280*720/25fps
Loop recording		yes, 1min/3min/5min
Parking monitor:		NA
Wireless connections&sensors
WiFi:		Support carplay or Android Auto
BT:		4.2
FM transmitter:		Yes
GPS:		NA
G-sensor:		NA
I/O Ports
Mic:		Yes-Electret MIC-1.5*4MM, -34DB
Speaker:		8ohm,2W
Voice command:		Via Siri/Google assistant
AUX socket		Yes, 3.5mm
Rear Camera connector:		2.5mm socket
Micro SD card slot:		Yes, up to 128GB
External GPS antenna socket		N/A
Power input：		Type C
Physical Buttons:		Power, Reset
Advanced features
Light sensor		Built-in
ADAS		Optional
Power consumption:
Working voltage：		DC5V
Working current：		<1A
Quiescent current：		<10MA
Power supply:		Car charger or hardwire kit(optional)
Software and update
OS:		LINUX 4.9
Firmware update:		Through Micro SD card, OTA will be available in future
Environment
Operating Temp：		（-20℃-70℃）
Storage Temp：		（-20℃-75℃）
Mechanical;
Product dimensions:		26.010.310.3*7.6cm
Product weigiht:		427g
Install method:		Dashboard mount

In The Box

Main device

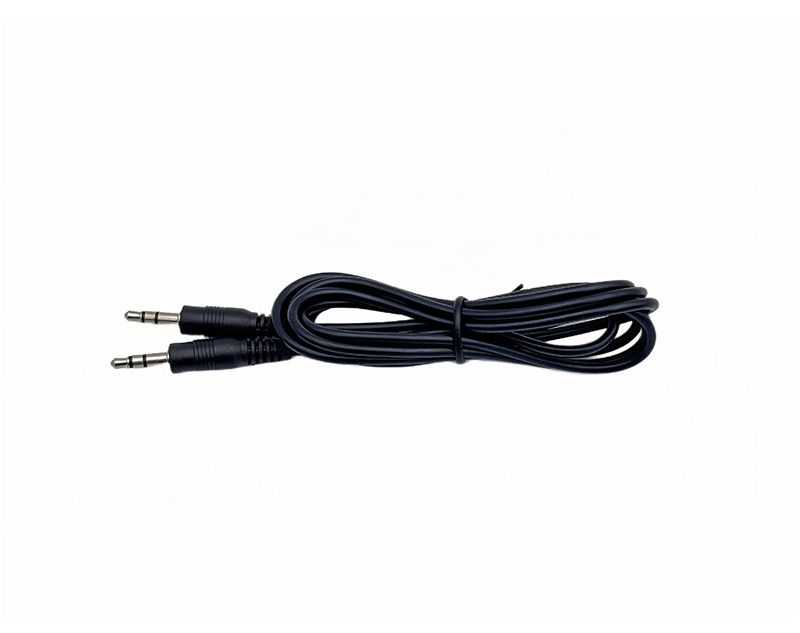

AUX cable

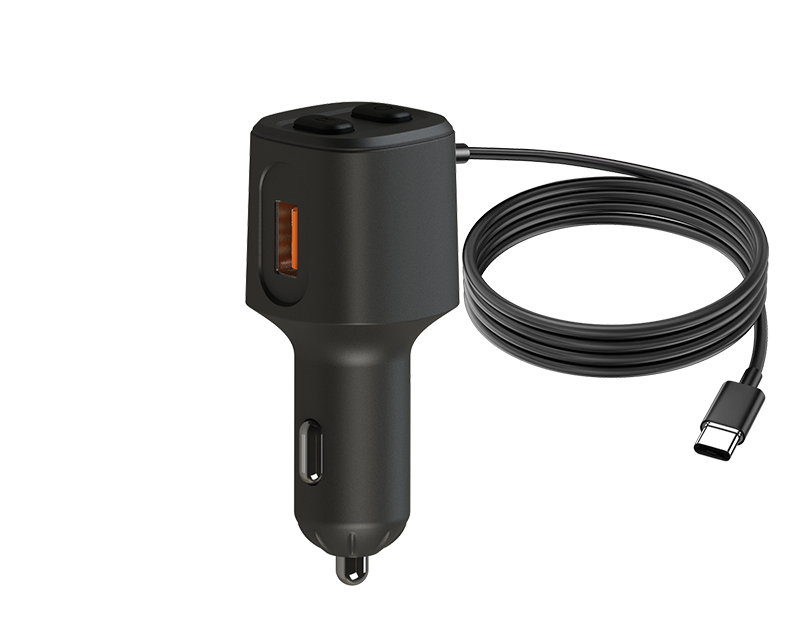

Car Charger

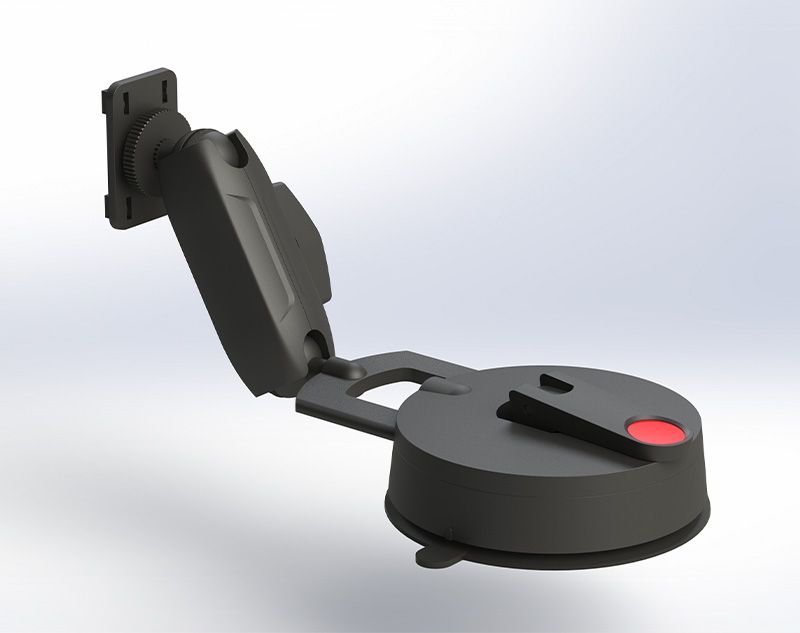

Suction Mount

User Manual

Rear Camera
