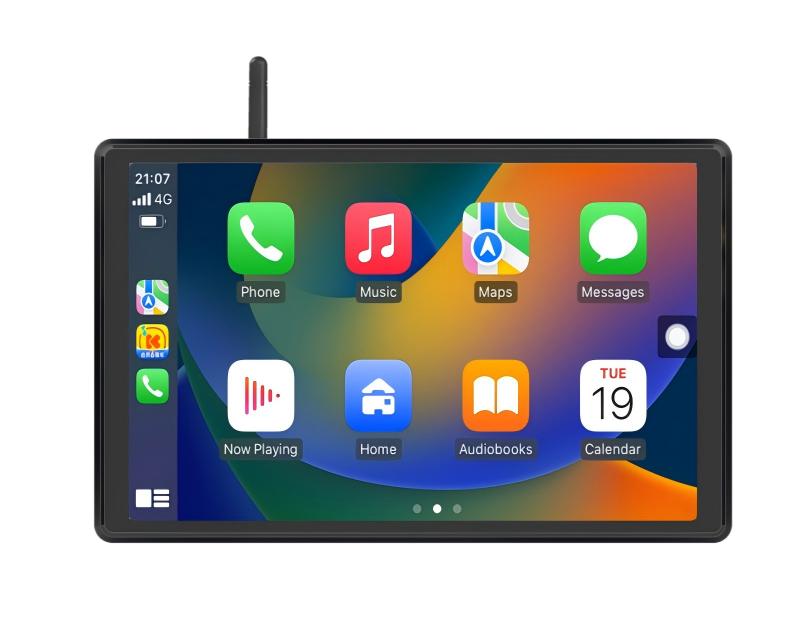

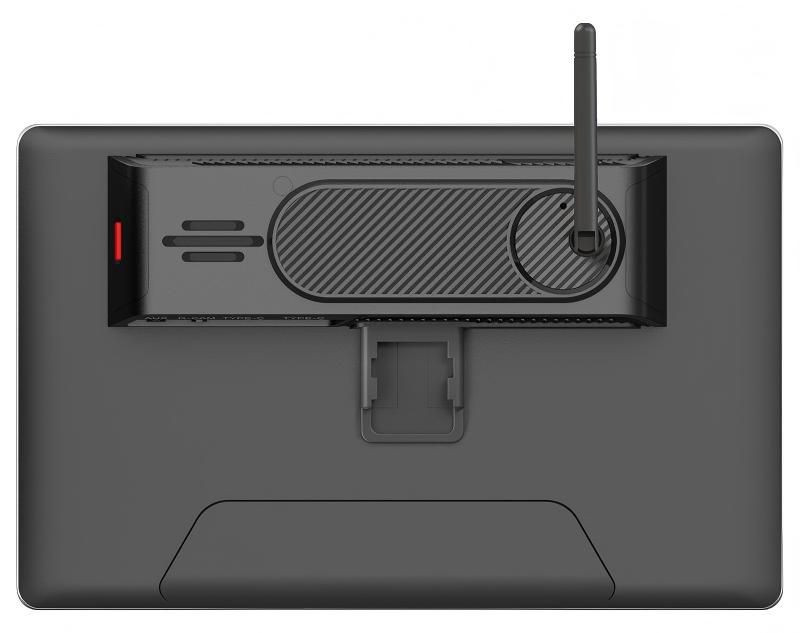

Connected Monitor System 803W

Wireless CarPlay and Android Auto

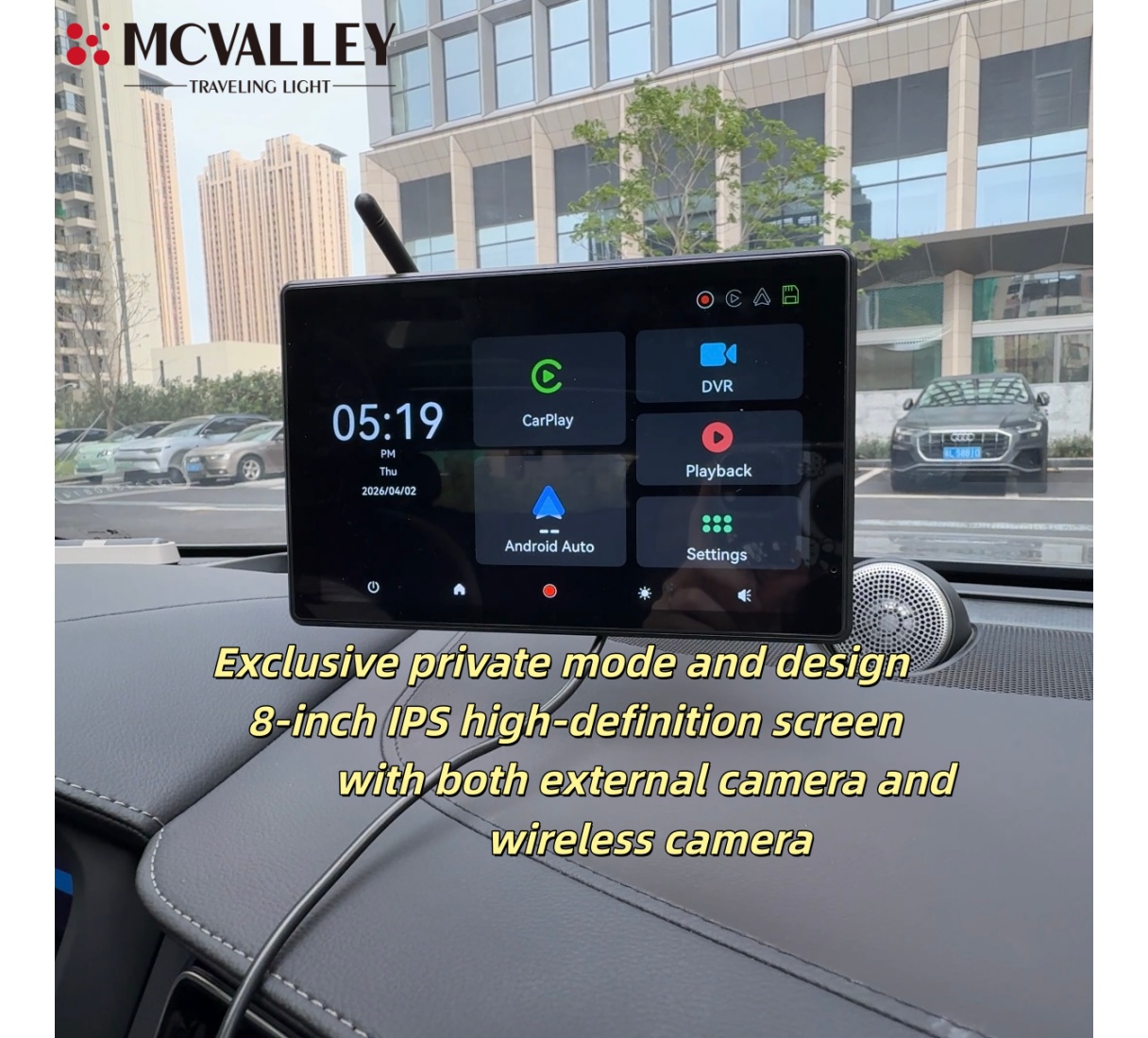

This product features an exclusive custom design for off-road vehicles, RVs and trucks. It is equipped with an 8-inch IPS high-definition screen, supports wireless CarPlay and Android Auto, and is compatible with both external cameras and wireless cameras.

USP

01

Exclusive private mode and design
02

8-inch IPS high-definition screen
03

with both external camera and wireless camera

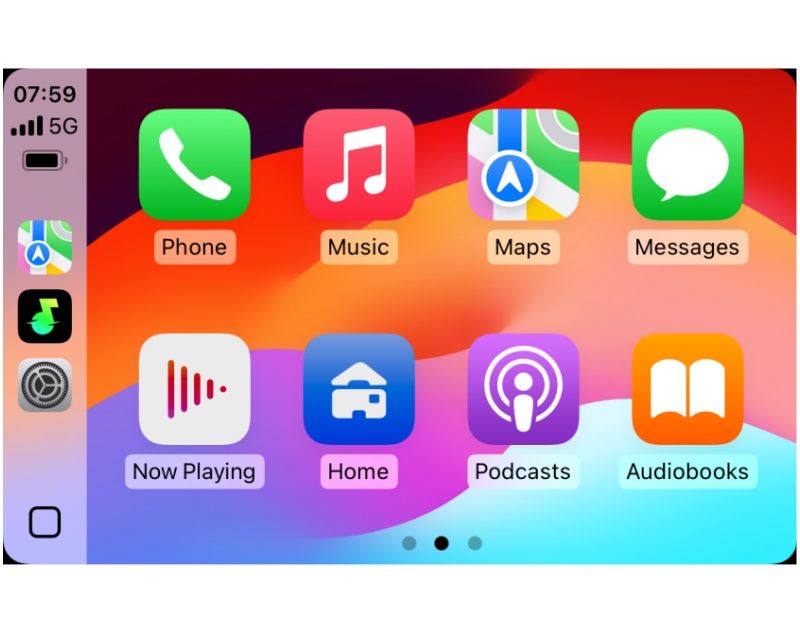

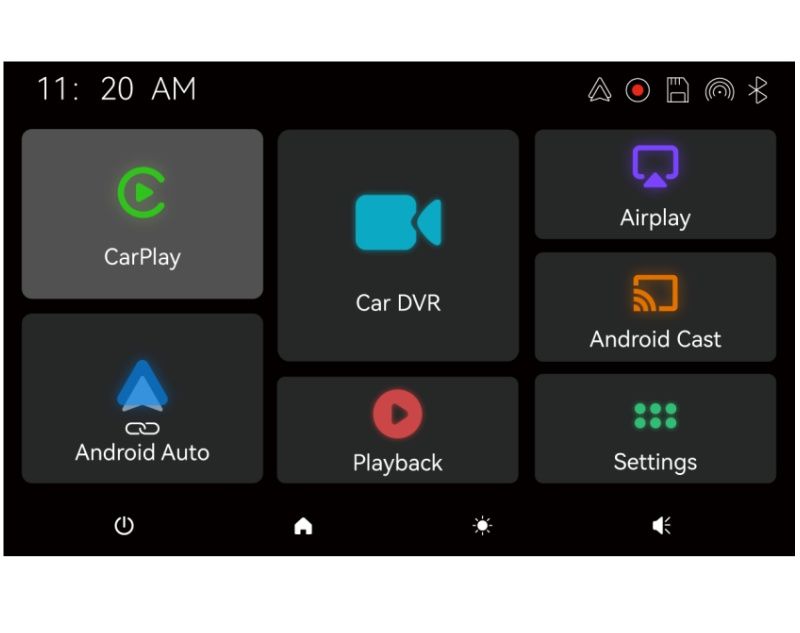

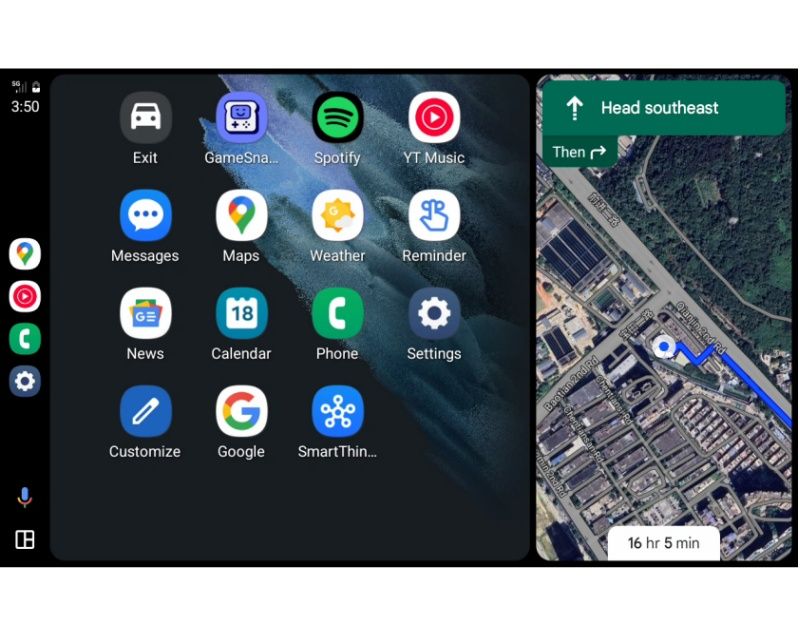

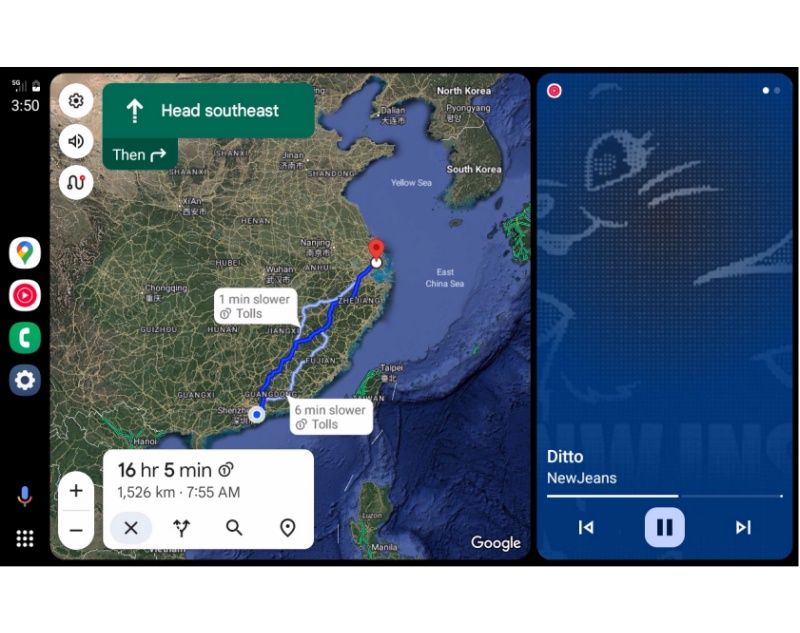

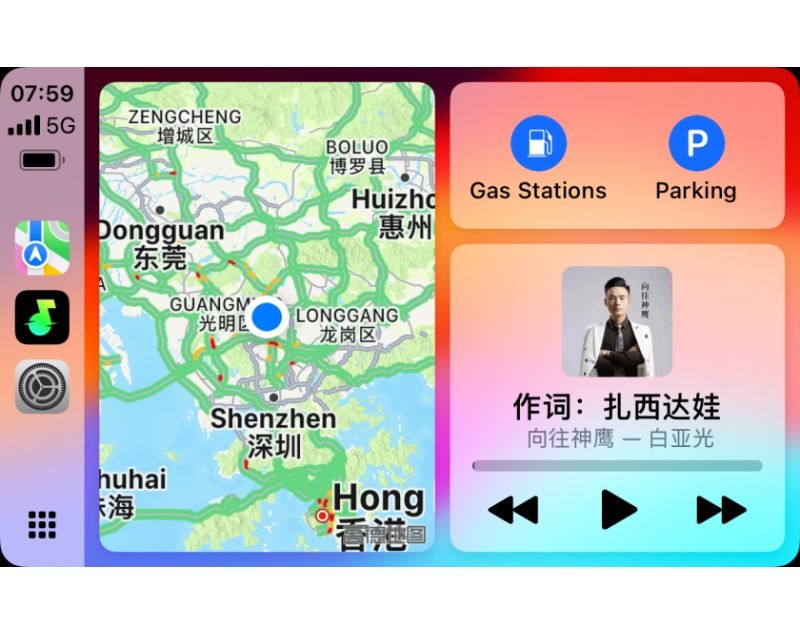

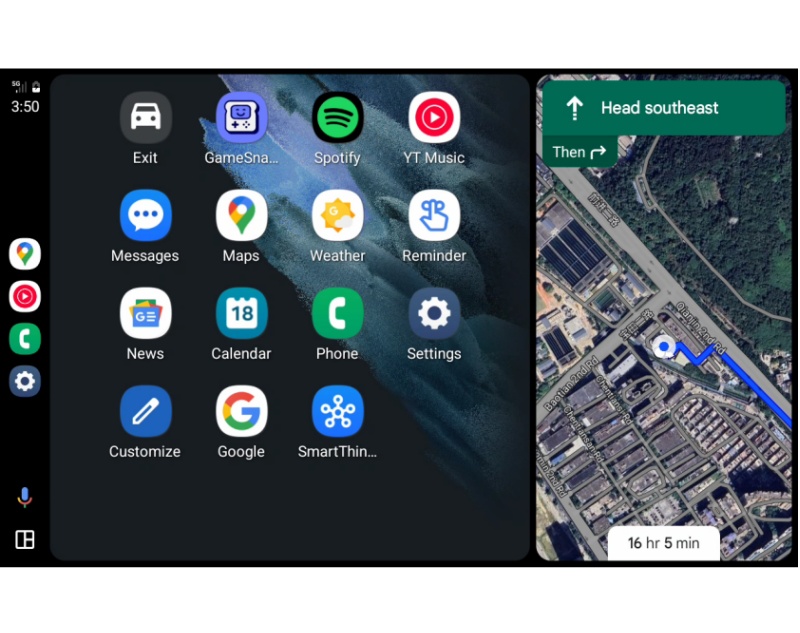

GUI

SPECIFICATION

803W Specifications
General
Processor:			Dual core A53-1.2Ghz
FLASH：			128MB
DDR:			256MB
Display type:			Glass capacitive multi-touch IPS
Display size&resolution:			8.0inch, 1280*800
Display brightness:			450Nit
Battery：			Cell battery（for RTC）
Camera Parameters
Front Camera		Optical Sensor	GC2053
		Resolution/FPS	Onboard type, 1080p/25fps
		Aperture/construction:	F2.0/2G2P
Wireless Rear Camera	BASEBAND SPEC	Power On	3S Max
		Latency	150ms Max
		Resolution/FPS	1920*1080,30fps
		CMOS Sensor	GC2053 (TBD)
		voice sample rate	16KHz/8KHz ADPCM/PCM
		video frequency band	20Hz~20kHz
		system architecture	RISC (32Bit) SOC
	RF SPEC	Operation frequency	2406 ~ 2476MHz & 5250~5350MHz
		Impedance	50Ω, Typ.
		RF Bit Rate	Max 20Mbps
		Modulation	OFDM/CCK
		Hopping Channel	4(2.4G)+24(5G)
		Hopping Rate	1200/S
		Line of Sight Range	300m
		Receiving sensitivity	-86dBm
Loop recording			Front Camera:1min/3min/5min
Parking monitor:			N/A
Wireless connections&sensors
WiFi:			Support carplay or Android Auto
BT:			4.2
FM transmitter:			Yes
GPS:			N/A
G-sensor:			N/A
I/O Ports
Mic:			Yes-Electret MIC-1.5*4MM, -34DB
Speaker:			8ohm,2W
Voice command:			Via Siri/Google assistant
AUX socket			Yes, 3.5mm
Rear Camera connector:			2.5mm socket
Micro SD card slot:			Yes, up to 256GB
External GPS antenna socket			N/A
Power input：			Type C
Physical Buttons:			Power, Reset
Advanced features
Light sensor			Yes
ADAS			N/A
Power consumption:
Working voltage：			DC5V
Working current：			<1A
Quiescent current：			<10MA
Power supply:			Car charger or hardwire kit(optional)
Software and update
OS:			LINUX 4.9
Firmware update:			Through Micro SD card, OTA will be available in future
Environment
Operating Temp：			（-10℃-70℃）
Storage Temp：			（-20℃-80℃）
Mechanical;
Product dimensions:
Product weigiht:
Install method:			Dashboard mount


Remark: If the wireless camera's power is connected to the reverse lamp cord，only rear view, no recording

In The Box

Main device

AUX cable

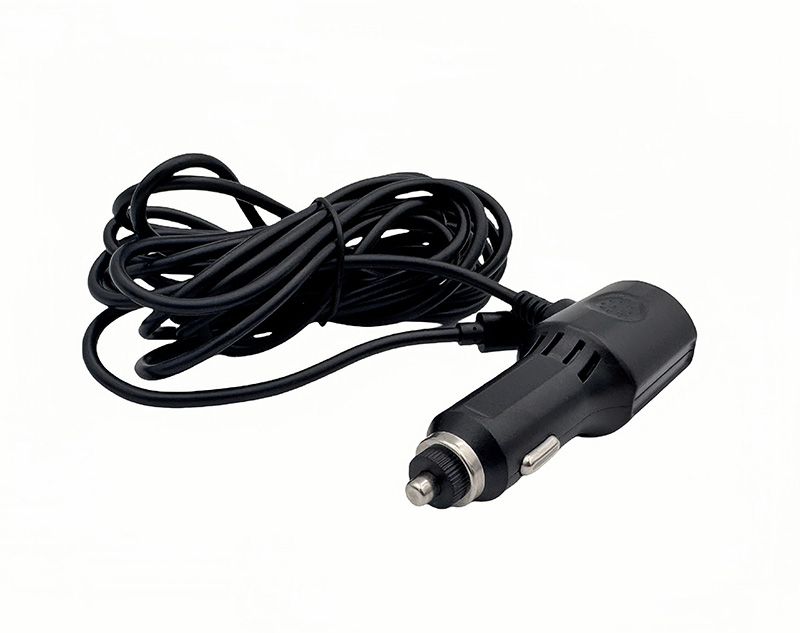

Car Charger

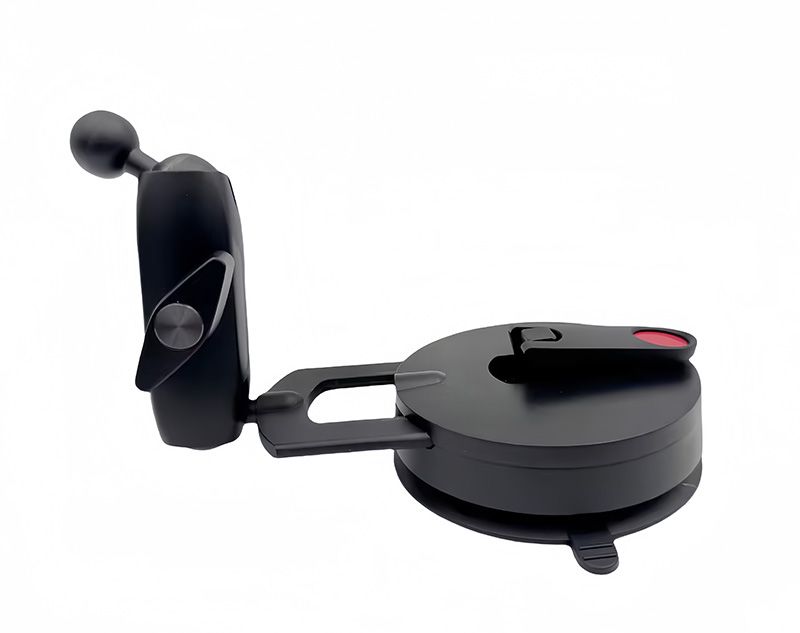

Suction Mount

User Manual
