Design N4 Android
This Android Sat Nav Device is a premium product specifically tailored for off-road adventures. It integrates numerous advanced technologies to provide users with an unparalleled navigation and entertainment experience, whether navigating rugged mountain trails or vast deserts.
The device is equipped with a high-performance GPS system，featuring an exclusive private mold design, it showcases fully laminated screen technology for enhanced viewing. With an 8-inch IPS high-definition display, it provides a vibrant and clear visual experience.
USP
-
01
Supporting CarPlay and Android Auto, providing universal compatibility with your smartphone
-
02
Offering seamless Bluetooth integration, allowing you to easily connect your devices without the hassle of cables, enhancing your driving experience
-
03
Providing an intuitive touch screen interface, navigate through apps and settings effortlessly.
-
04
Equipping with a high-performance GPS system that provides real-time and accurate location information, ensuring users never lose their way in any environment.

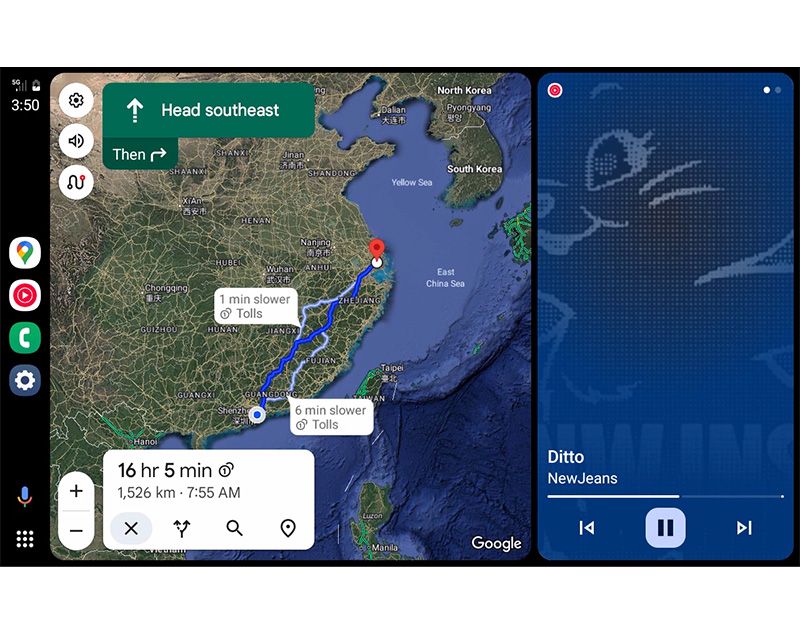

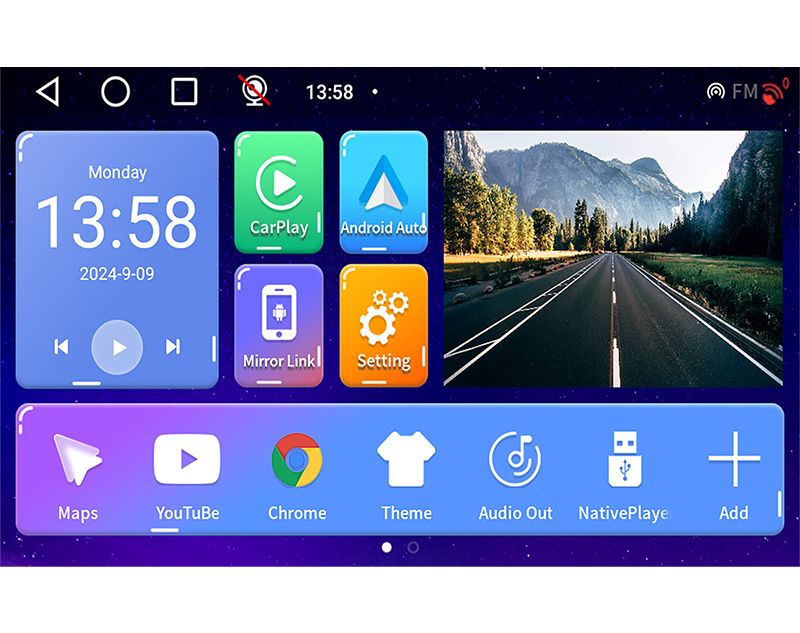

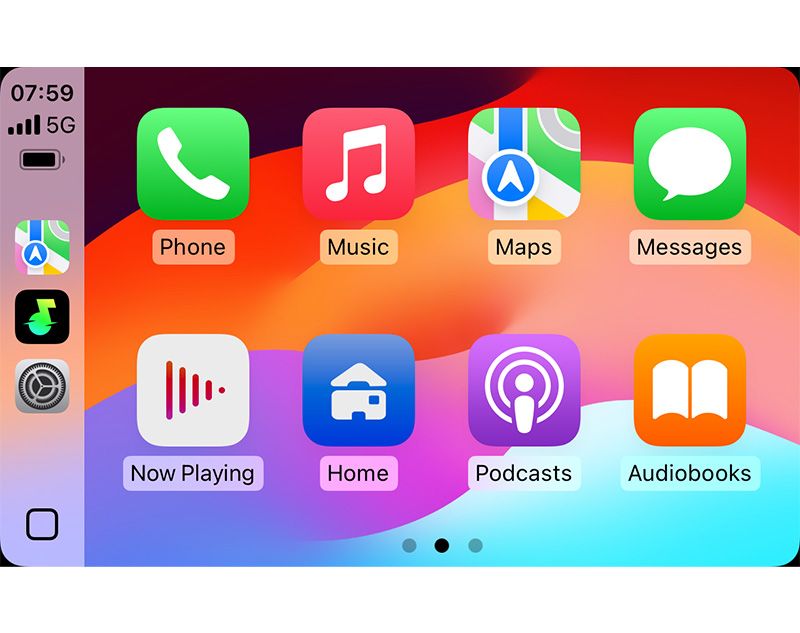

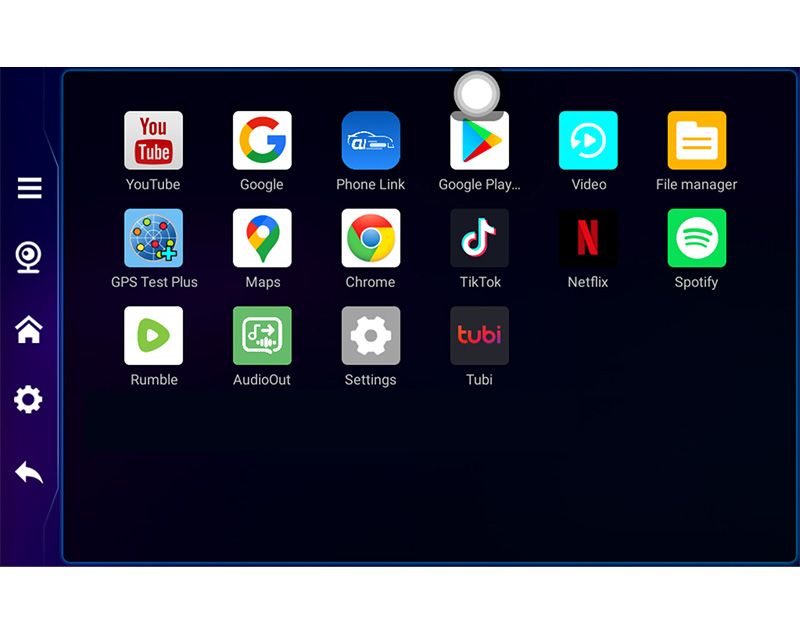

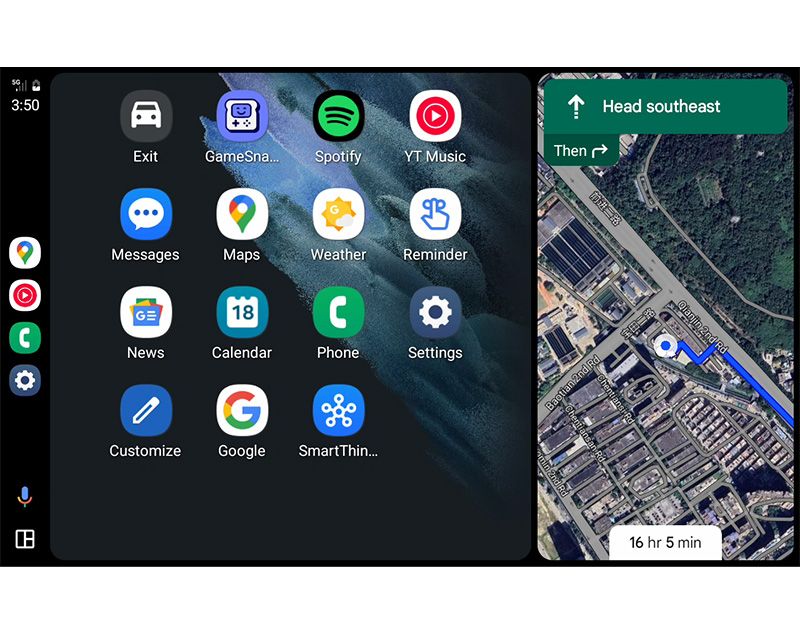

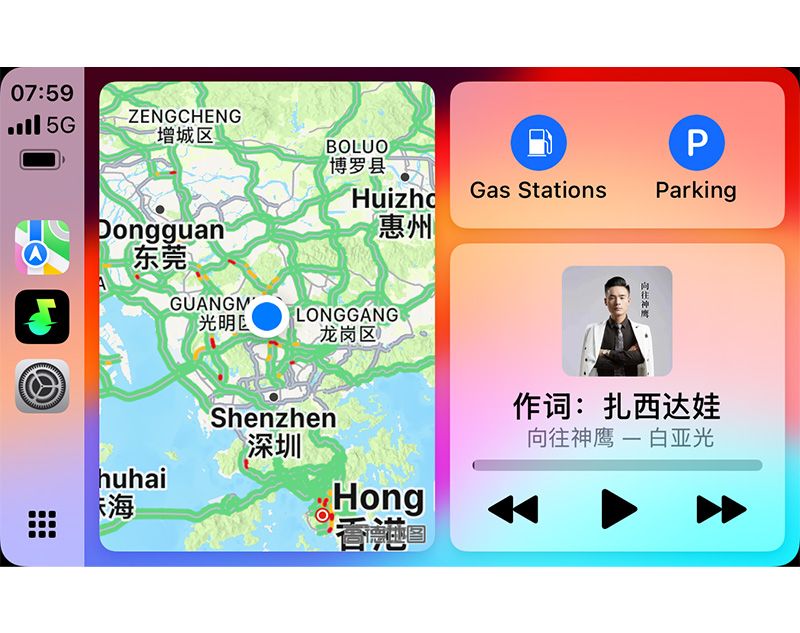

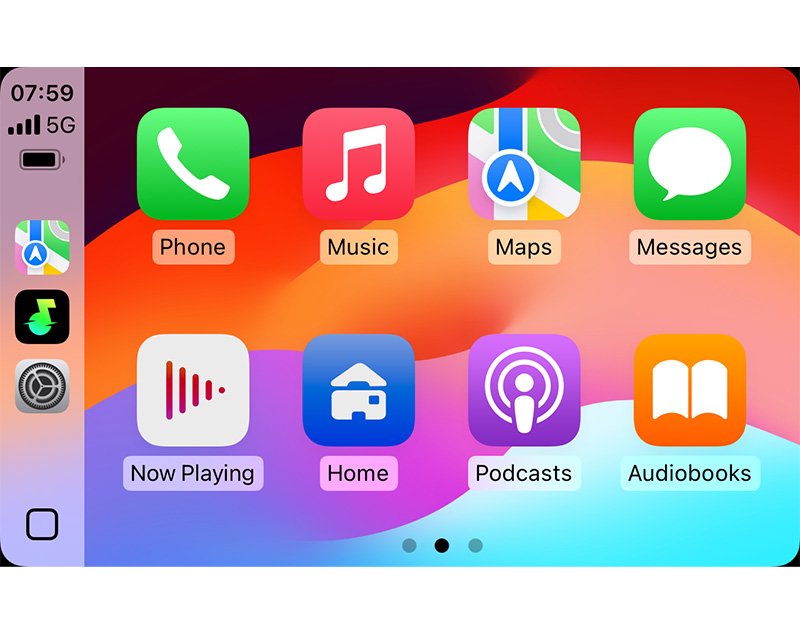

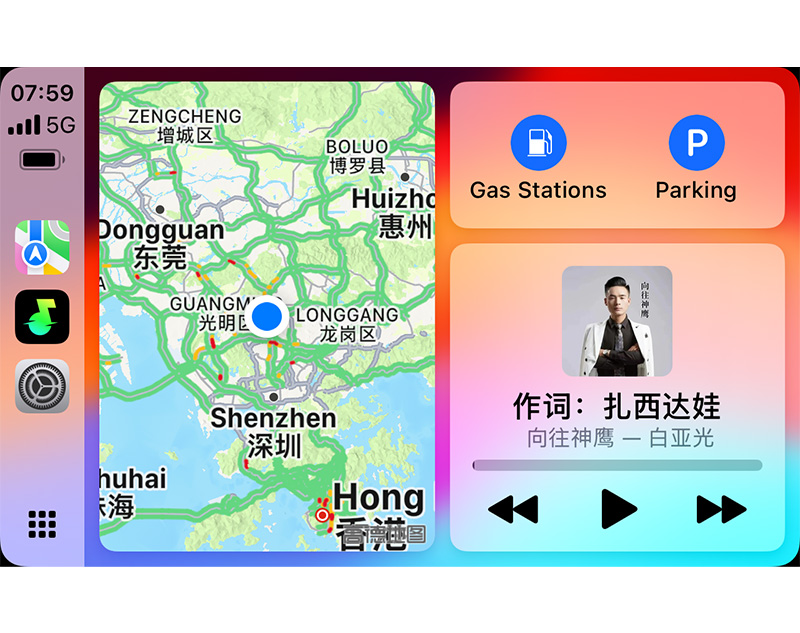

801AS GUI

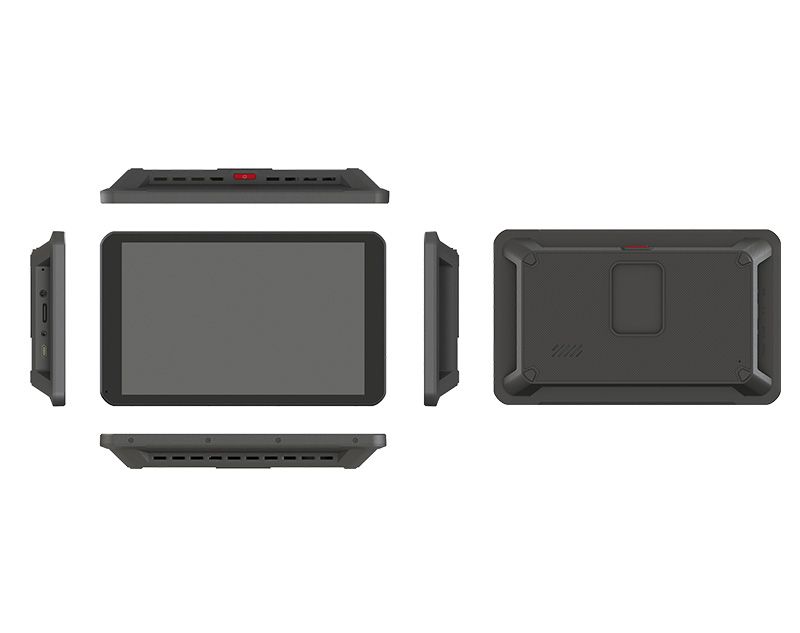

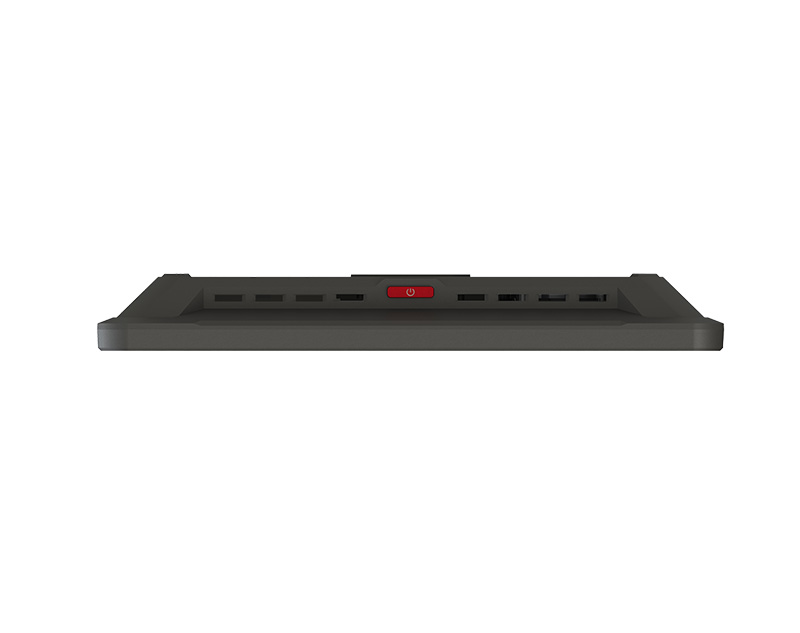

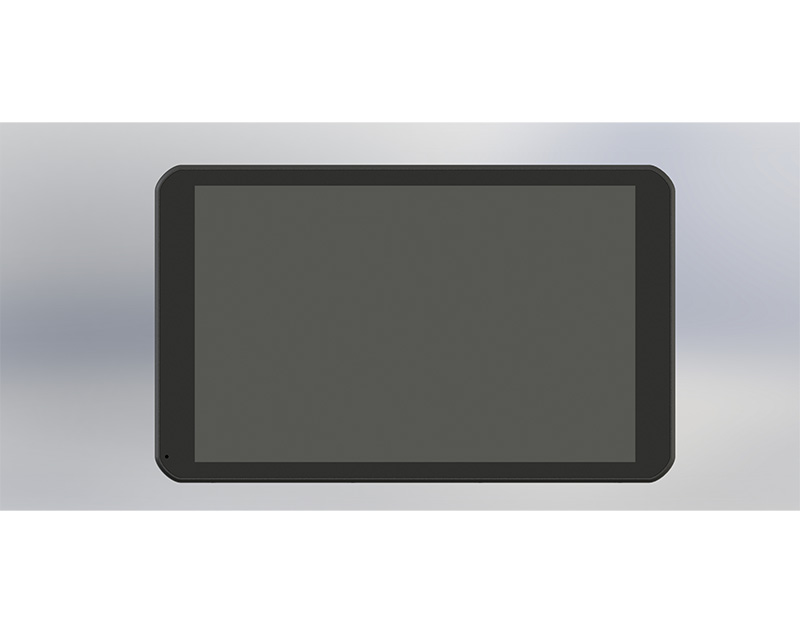

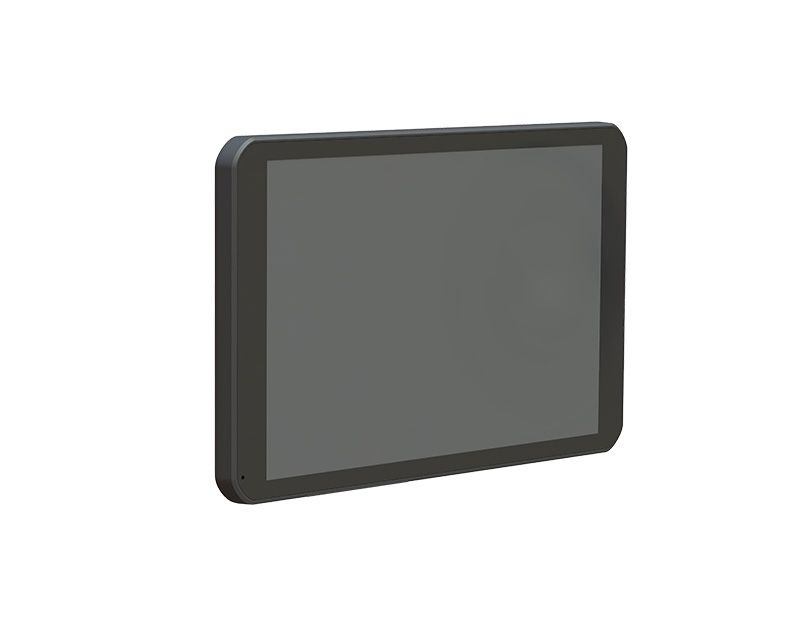

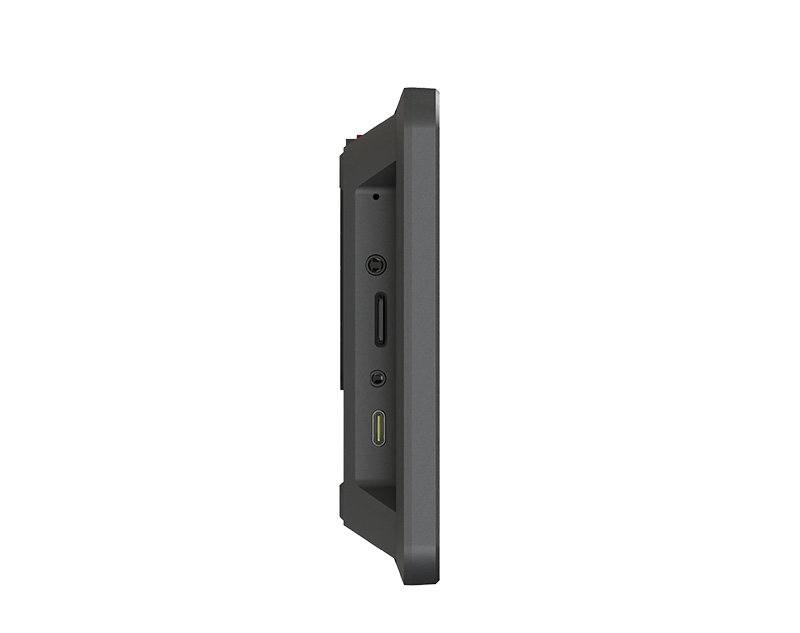

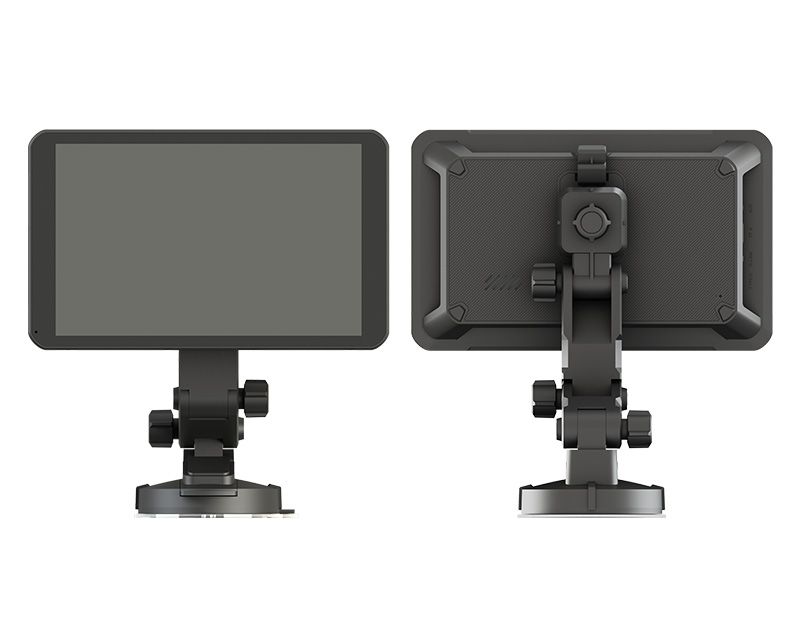

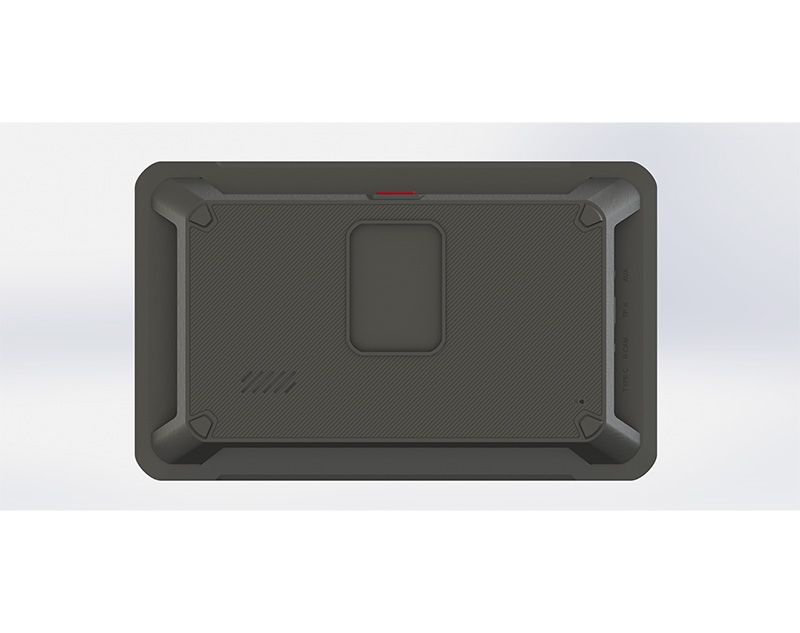

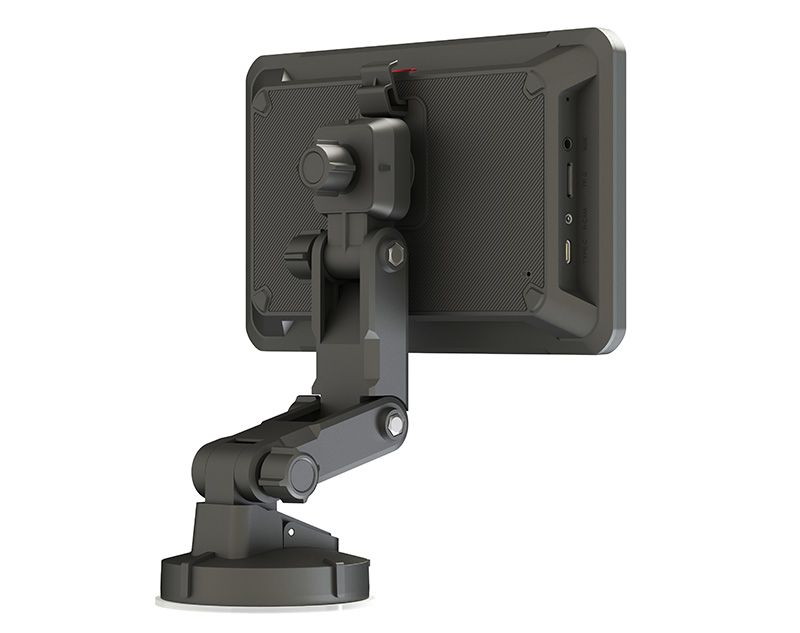

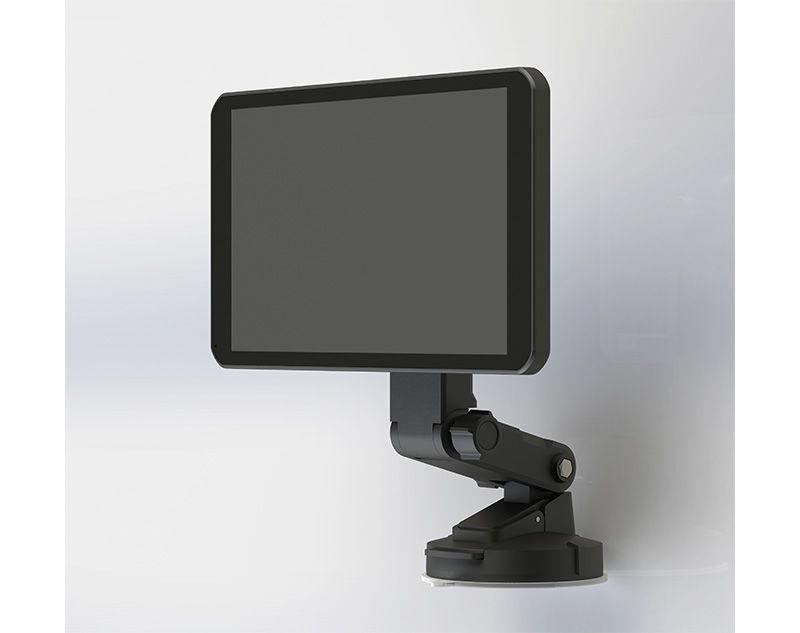

PRODUCT PHOTOS
SPECIFICATION
| 801AS Specifications | ||
| General | ||
| Processor: | UIS7861，8 Core 2*A75 1.6GHz + 6*A55 1.6GHz | |
| FLASH： | 4G | |
| DDR: | 64GB | |
| Display type: | Glass capacitive multi-touch IPS | |
| Display size&resolution: | 8.0inch, 1280*800 | |
| Display brightness: | 495Nit | |
| Battery： | Cell battery（for RTC） | |
| Camera Features | ||
| Front lens | Resolution/FPS | N/A |
| Aperture/construction: | N/A | |
| Rear lens | Resolution/FPS | AHD 1080p/25fps |
| Aperture/construction: | F2.0/2G2P | |
| extention Cable length: | 5.5M | |
| Other features: | Switch to rear view image automatically while reversing, parking assistance line is adjustable | |
| Loop recording | yes, 1min/3min/5min | |
| Parking monitor: | Optional (has to be used together with 3 wires hardwire kit) | |
| Wireless connections&sensors | ||
| WiFi: | Support carplay or Android Auto | |
| BT: | 4.2 | |
| FM transmitter: | Yes | |
| GPS: | Built-in | |
| G-sensor: | Yes | |
| I/O Ports | ||
| Mic: | Yes-Electret MIC-1.5*4MM, -34DB | |
| Speaker: | 8ohm,2W | |
| Voice command: | Via Siri/Google assistant | |
| AUX socket | Yes, 3.5mm | |
| Rear Camera connector: | 2.5mm socket | |
| Micro SD card slot: | Yes, up to 256GB | |
| External GPS antenna socket | N/A | |
| Power input： | Type C | |
| Physical Buttons: | Power, Reset | |
| Advanced features | ||
| Light sensor | NA | |
| ADAS | Optional | |
| Power consumption | ||
| Working voltage： | DC5V | |
| Working current： | <1A | |
| Quiescent current： | <10MA | |
| Power supply: | Car charger or hardwire kit(optional) | |
| Software and update | ||
| OS: | Android | |
| Firmware update: | Through Micro SD card and OTA | |
| Environment | ||
| Operating Temp： | （-10℃-70℃） | |
| Storage Temp： | （-20℃-80℃） | |
| Mechanical | ||
| Product dimensions: | 20.04*12.4cm | |
| Product weigiht: | 479 | |
| Install method: | Suction mount | |
In The Box
Main device

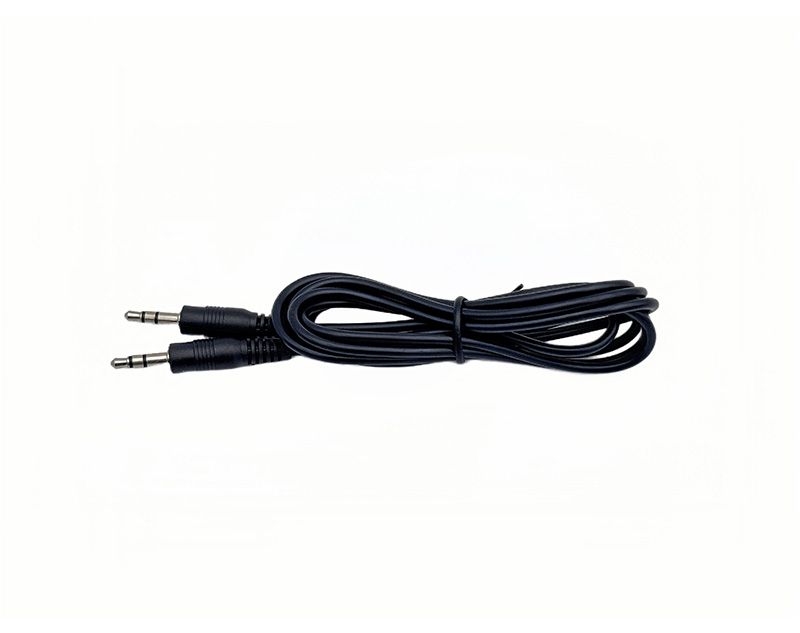

AUX cable

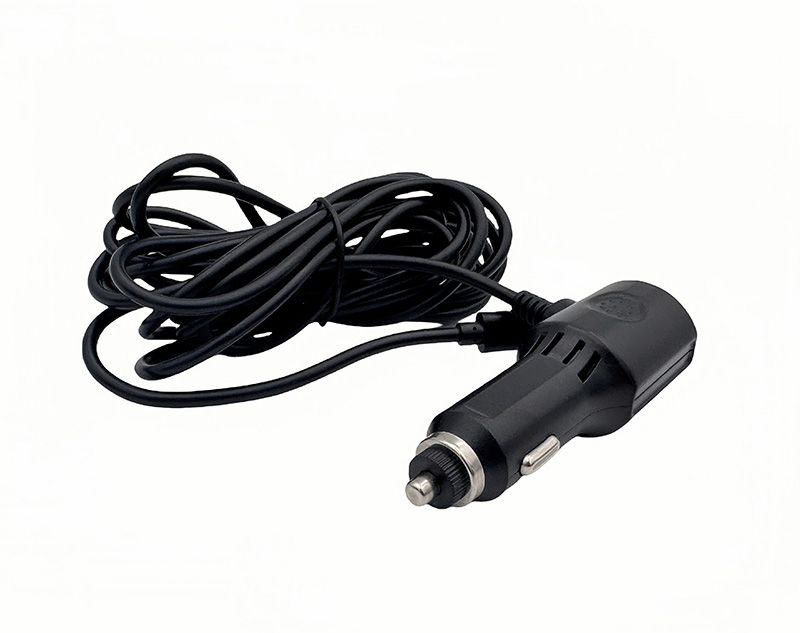

Car Charger
Suction Mount
User Manual
Accessories
ALL IN ALL, WE CARE THE CUSTOMER EXPERIENCE A LOT, AND WE PAY BIG EFFORT TO MAKE OUR PRODUCT BEST POSSIBLE.
