Introducing the V18 Three-Channel Hidden DVR, the ultimate solution for your vehicle's surveillance needs. It integrates high-definition recording, seamless connectivity, sleek design, and robust durability into a single, elegant device. The V18 not only captures a comprehensive and detailed record of the driving process but also offers user-friendly operation and enhanced safety through advanced technology.
USP
-
01
HD Triple Recording-Simultaneous front 2K, rear/interior 1080P recording for comprehensive coverage.
-
02
Cell Phone WIFI Interconnection-Easy access via smartphone app for real-time viewing and management.
-
03
Clear IPS Display-3.16-inch screen for crisp visuals during driving.
-
04
24H Time-lapse Monitoring-Continuous parking surveillance for added security.

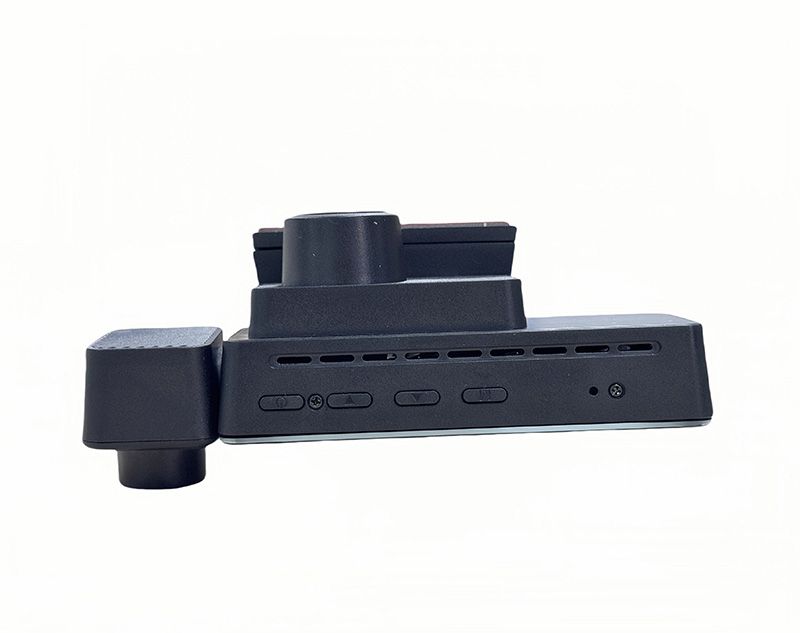

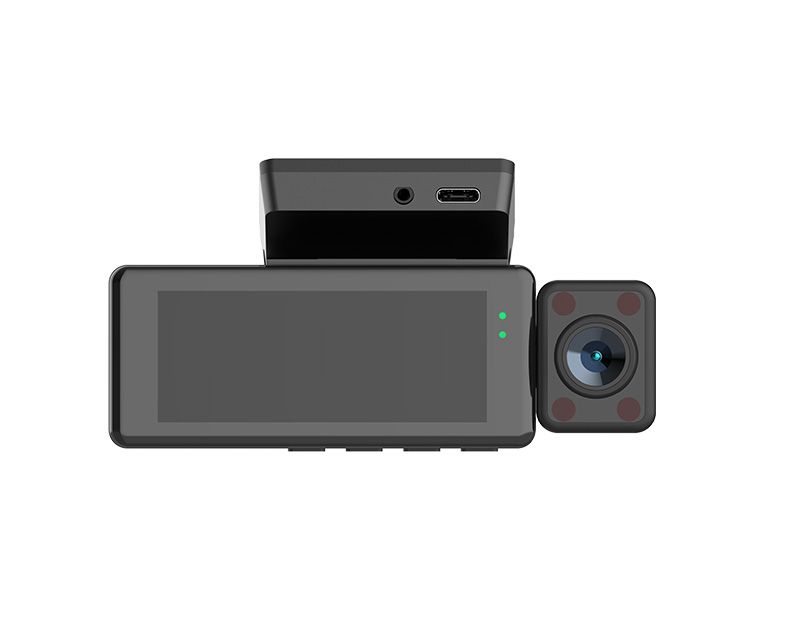

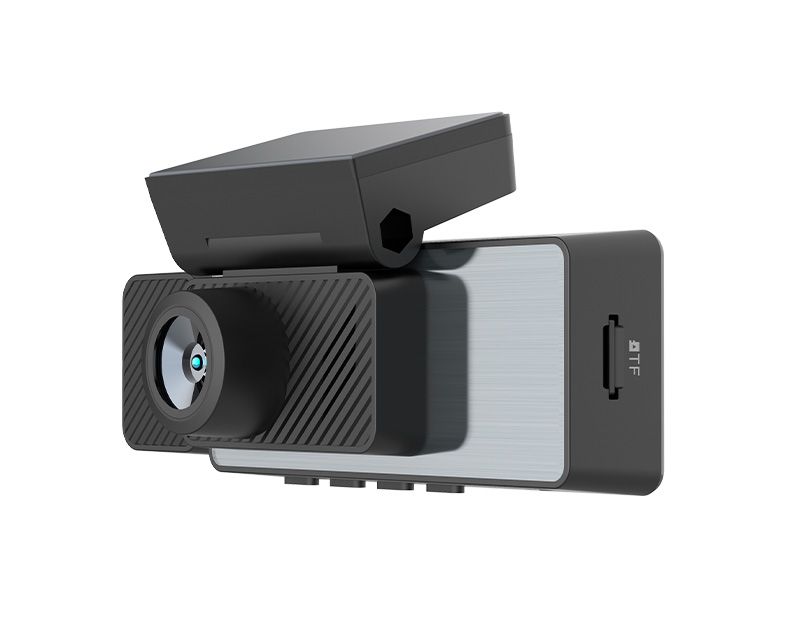

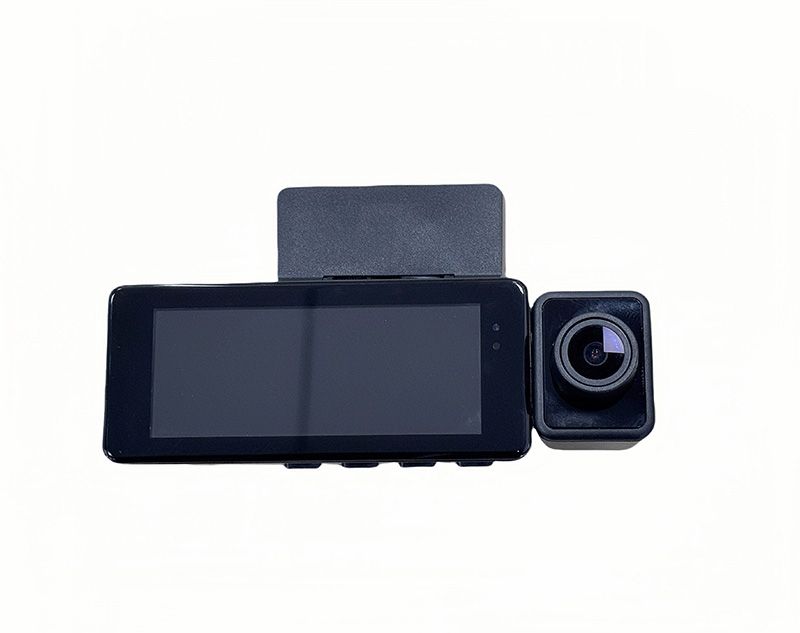

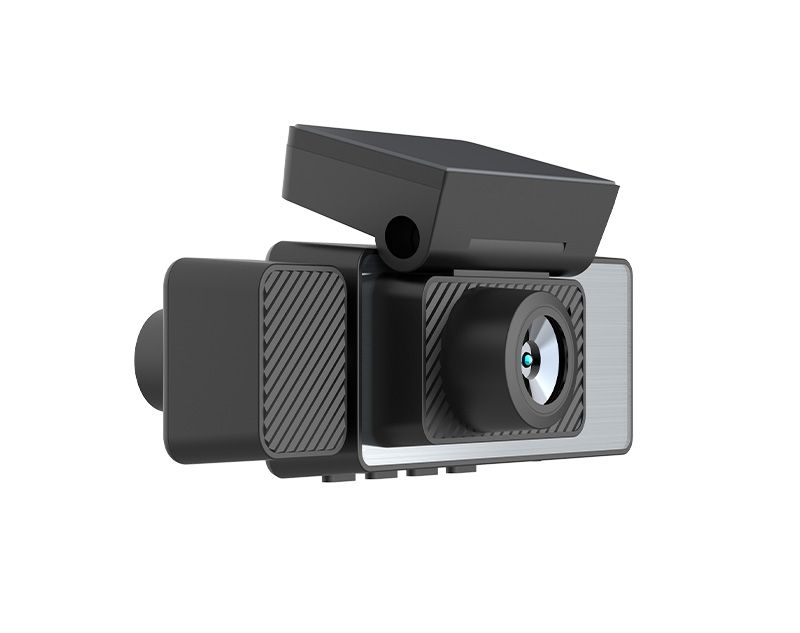

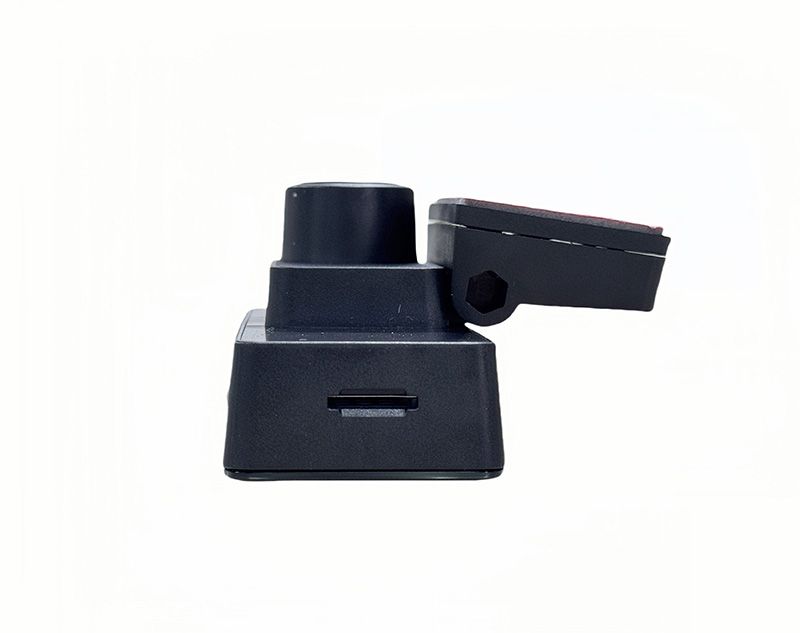

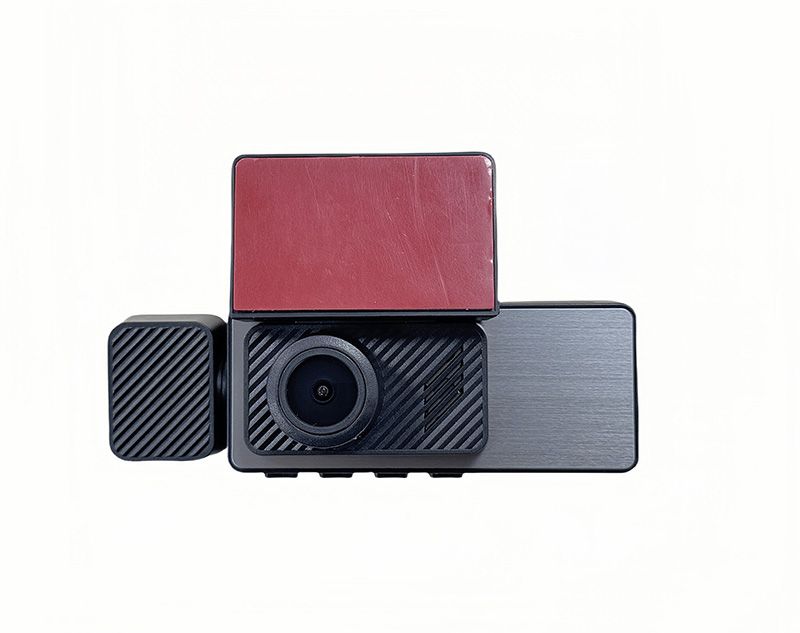

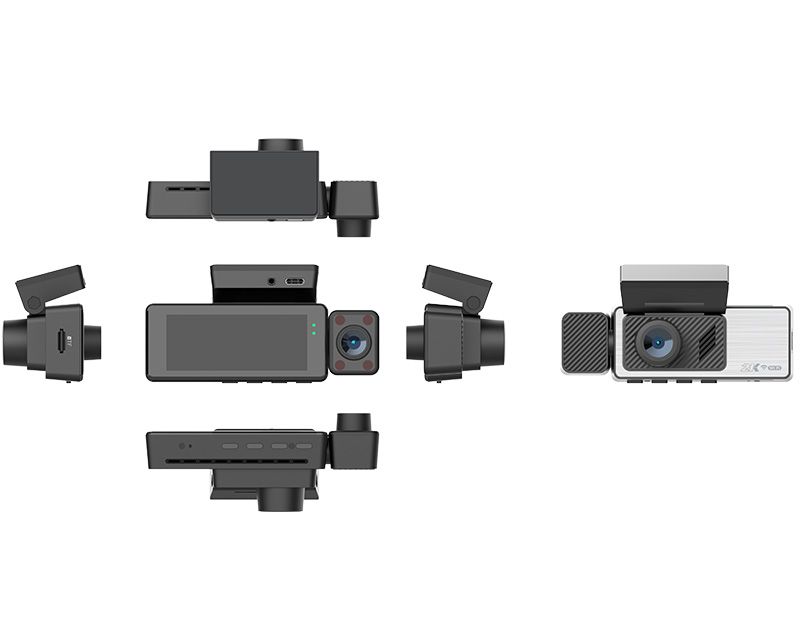

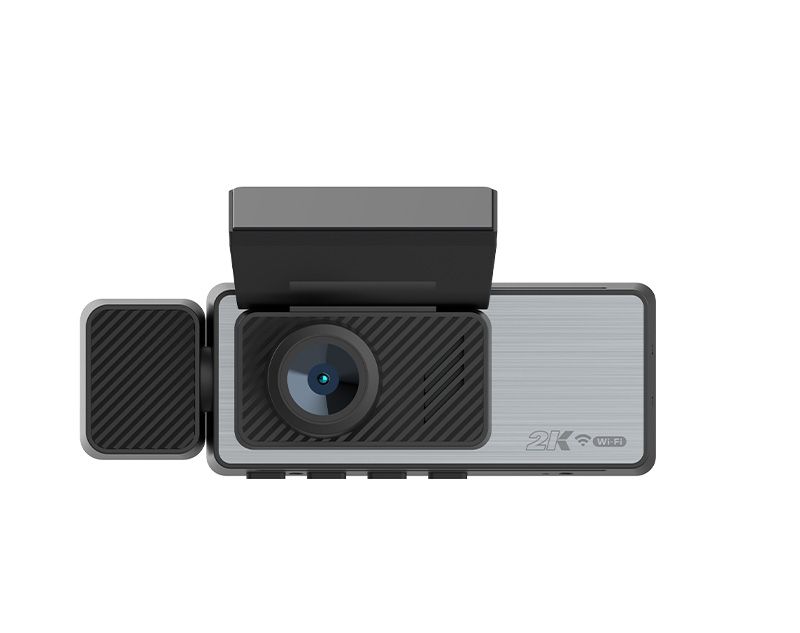

PRODUCT PHOTOS
SPECIFICATION
| V18 Specification | |
| Core | |
| Processor | Allwinner V851S3 |
| Front Sensor | SW2336 2560X1440 30fps |
| Rear Sensor | GC2083, AHD1080p 25FPS |
| Inward Sensor | GC2083， AHD1080p 25FPS |
| External Memory | up to 128GB |
| OS | Linux |
| APP/PC Player app | Viidure |
| Display | |
| LCD Panel | MIPI 3.16 inch |
| Resolutions | 820X320 |
| Touch Panel | N/A |
| Front Lens | |
| Aperture | F2.2 |
| Construction | 2G2P |
| FOV | D:135° H:116° V:60 |
| Resolution/fps | 2560X1440/30FPS(2K) |
| Rear Lens | |
| Aperture | F2.0 |
| Construction | 2G2P |
| FOV | D:126°,H:104°，V:54.5° |
| Resolution/FPS | 1920*1080/25FPS(1080P) |
| Inward Lens | |
| Aperture | F2.0 |
| Construction | 2G2P |
| FOV | D:121°,H:100°，V:53° |
| Resolution/FPS | 1920*1080/25FPS(1080P) |
| Wireless | |
| WiFi | support |
| Bluetooth | N/A |
| Cellular data | N/A |
| Positioning | built-in |
| Features | |
| Audio | Built-in |
| Video | Built-in |
| Video Ecodeing Format | H.264 2K@ H.264@1080P |
| Video Format | MP4 |
| Parking Monitoring | support |
| Motion Detection | support |
| Voice Recognition | support |
| G-Sensor | support |
| Time Lapse | support |
| Others | N/A |
| User-Interface | |
| I/O Ports | Type-C power socket |
| TF Card （support Maximum 128G) | |
| N/A | |
| rear cam connection jack-2.5mm | |
| Microphone | -40db+-2db |
| Speaker | Built-in 8ohm*1W |
| Function Key | Power On/Off, Left/Right Button, Confirm, Menu |
| Indicator Light | WIFI /Power/video indicator |
| Power | |
| DC In | 5V/3A |
| Battery | MS621 RTC |
| Firmware Upgrade | TF Card |
| Environment | |
| Operating Temp | -20℃-70℃ |
| Storage Temp | -30℃-80℃ |
| Operating Humidity | 15%-60%RH |
| IP Rating | N/A |
| Mechanical | |
| Dimensions | mm |
| Docking Station | 3M adhesive |
| Accessories | |
| Standard | User Manual/Car Charger with Cable |
| Optional | hardwire kit |
| Remarks 1, need to use 3 lead hardwire kit to enabe time lapse feature. | |
In The Box
Main device

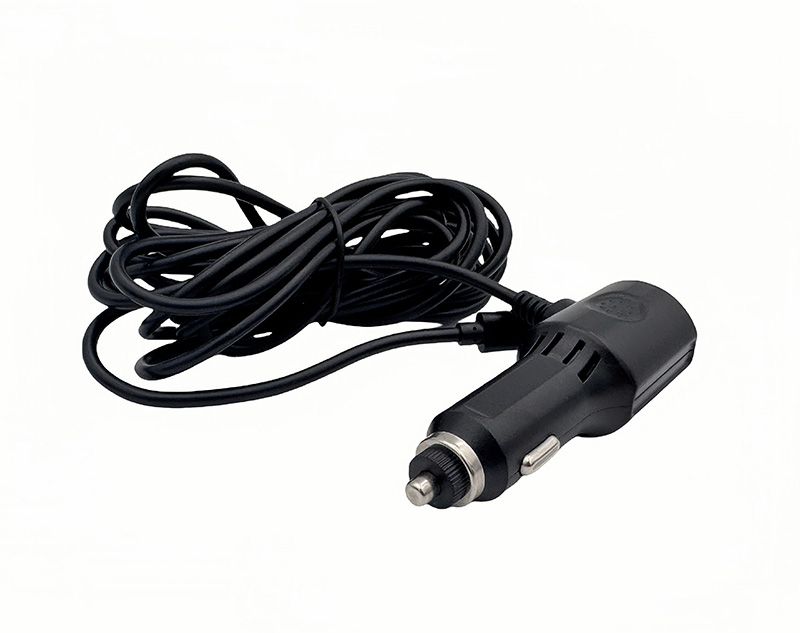

Car charger
User manual
Accessories
