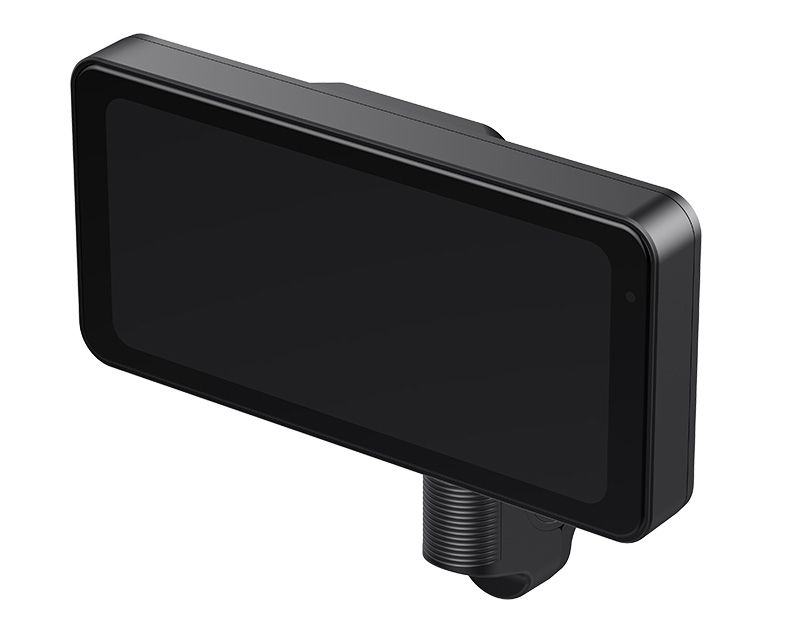

Motorcycle Monitor 623S

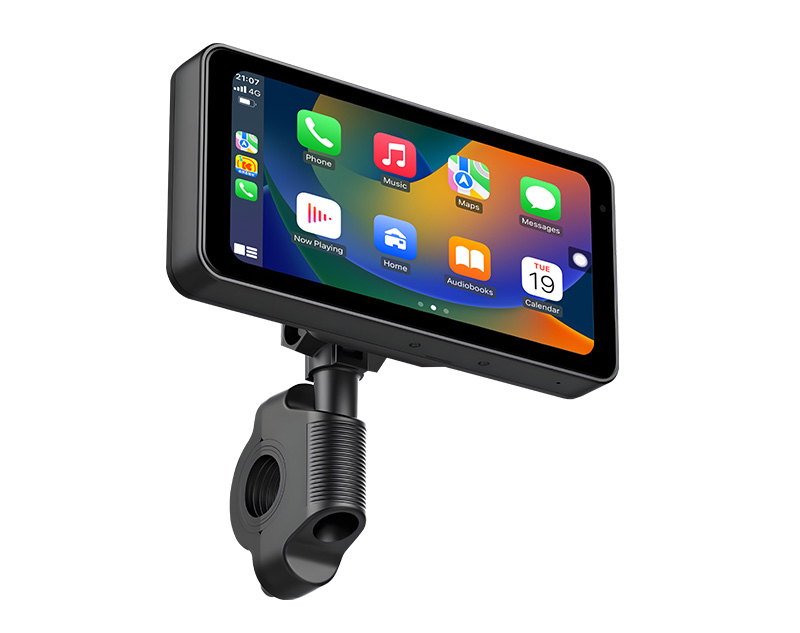

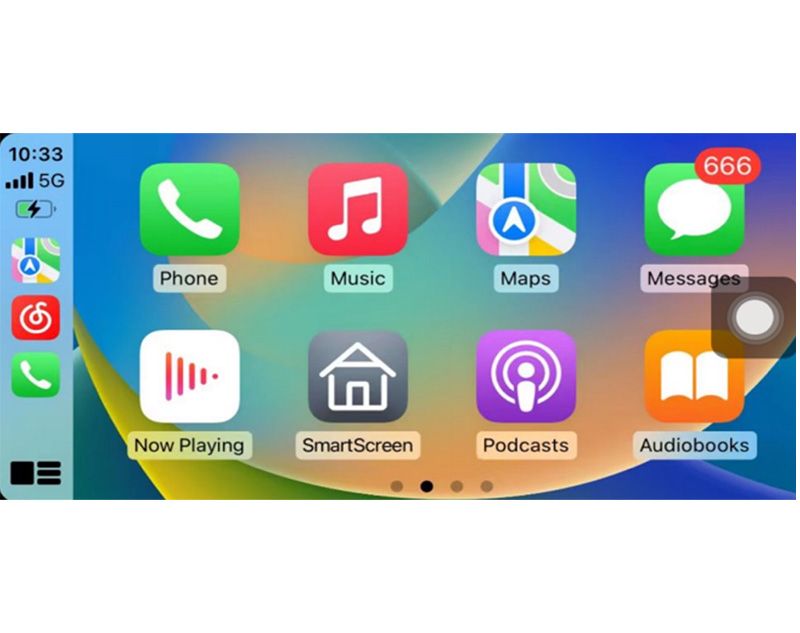

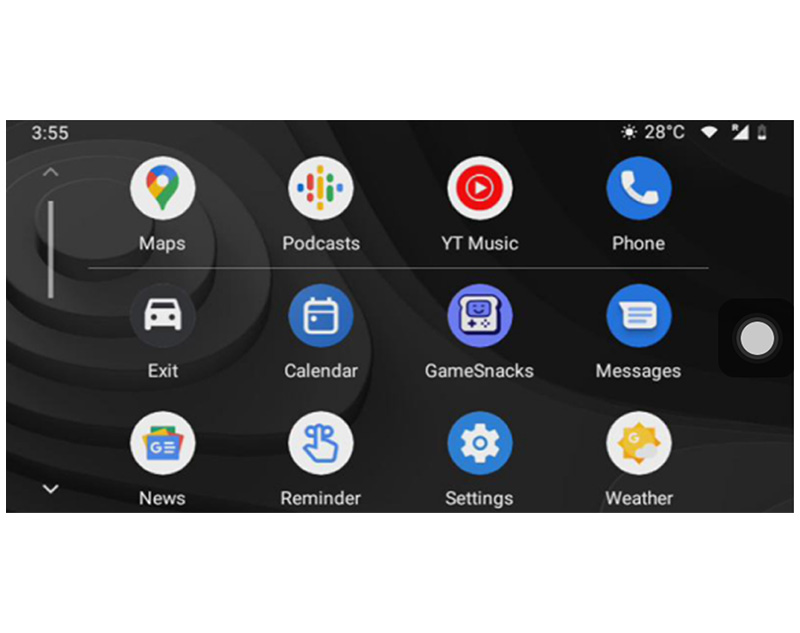

Motorcycle Carplay supports Wireless CarPlay and Android Auto
Display size
USP
-
01
Cutting-Edge Technology with Android OS 13 and Quad-Core SoC, 4GB+64GB Memory

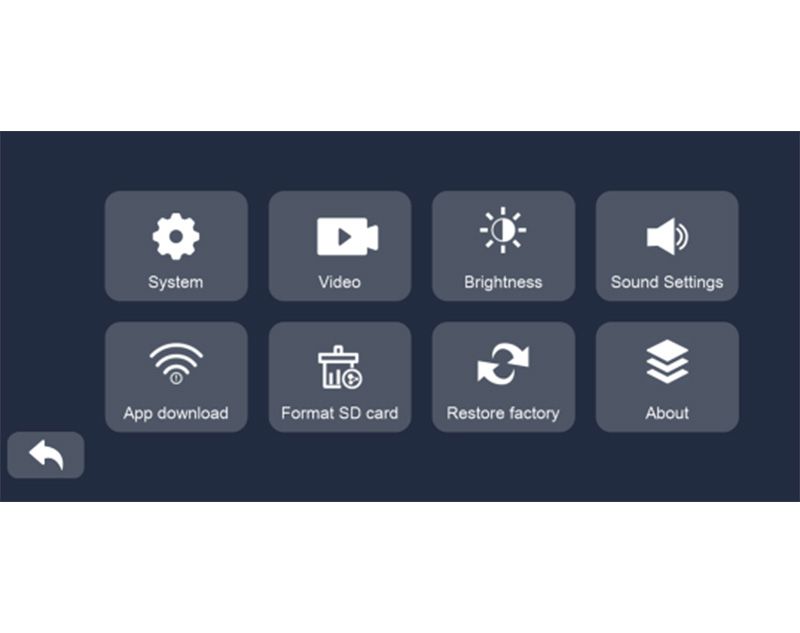

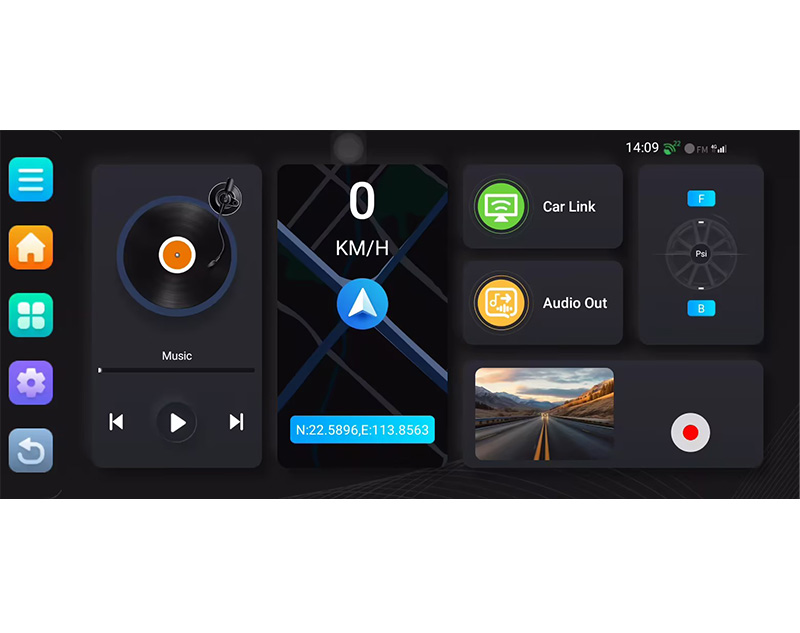

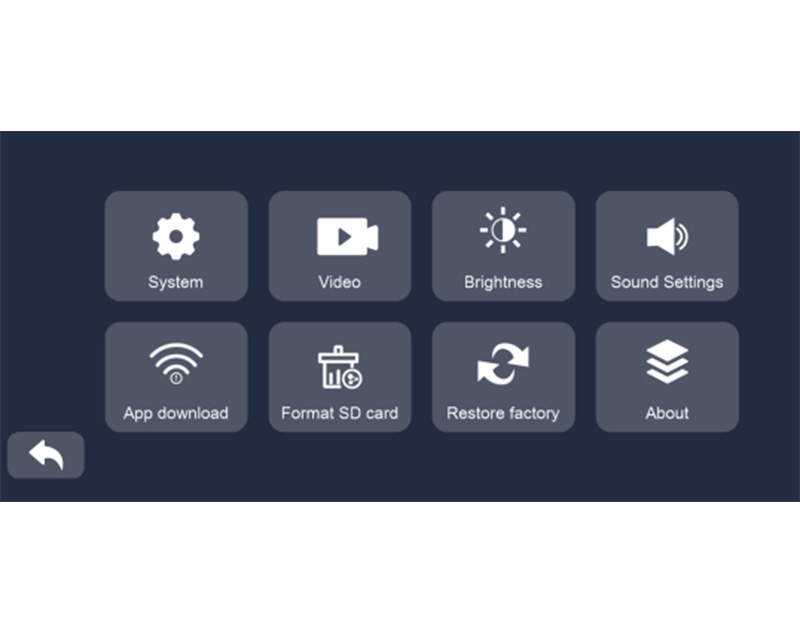

623S GUI

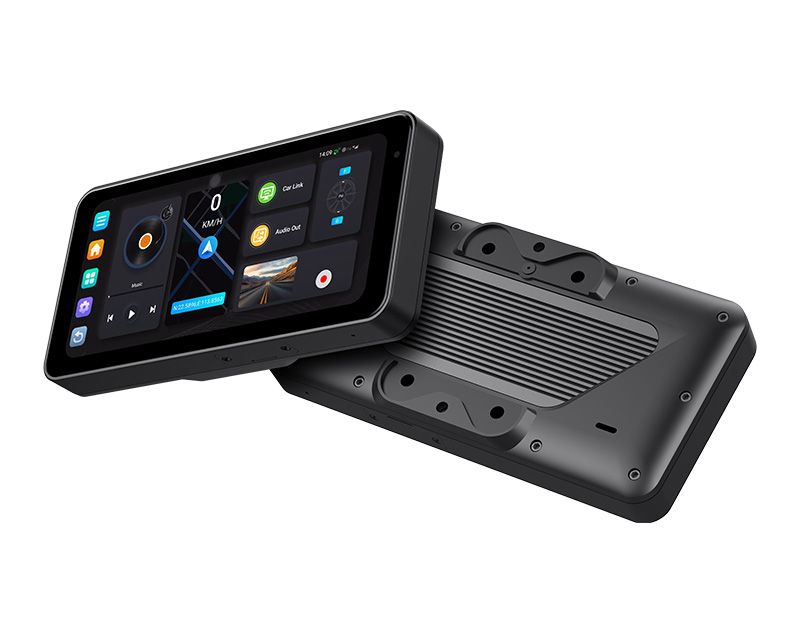

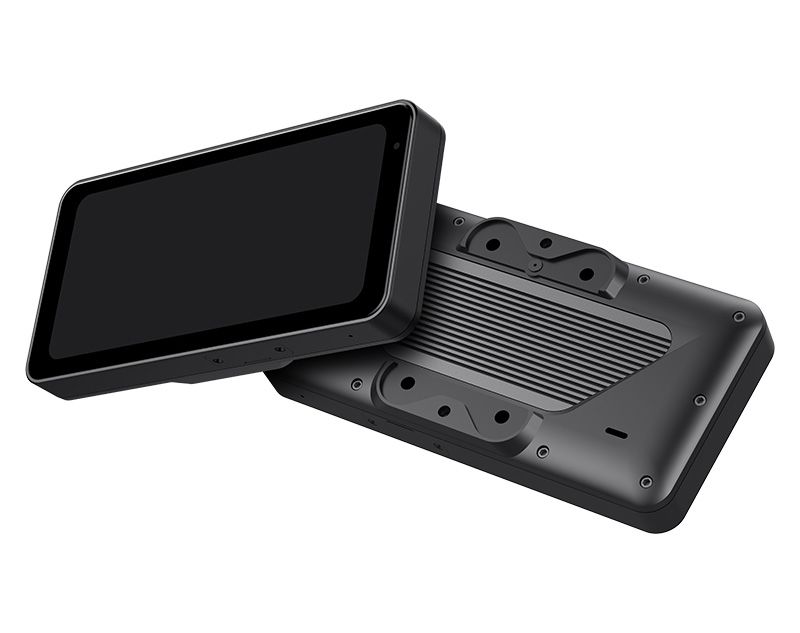

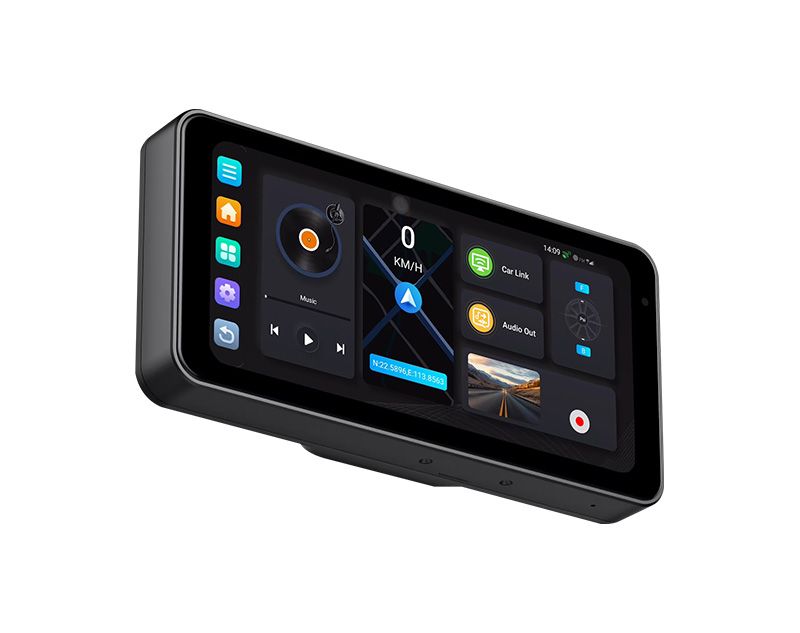

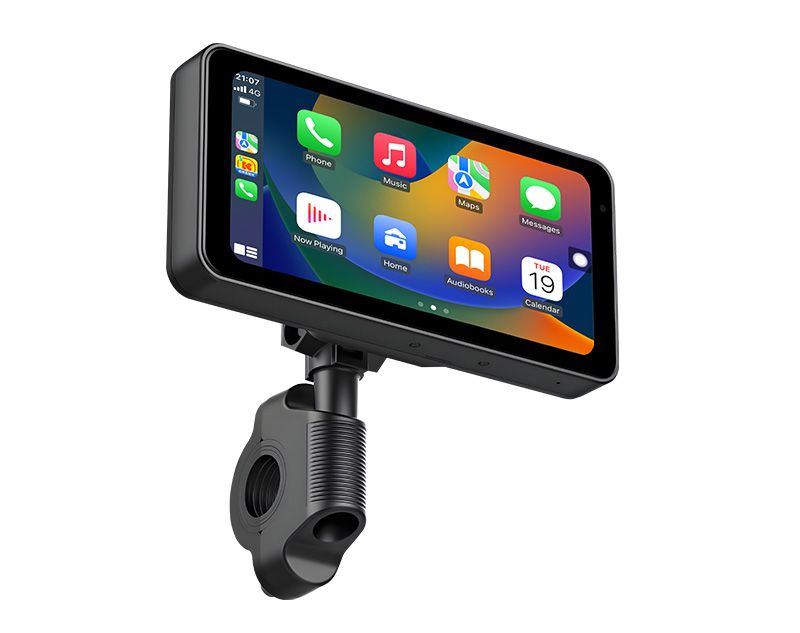

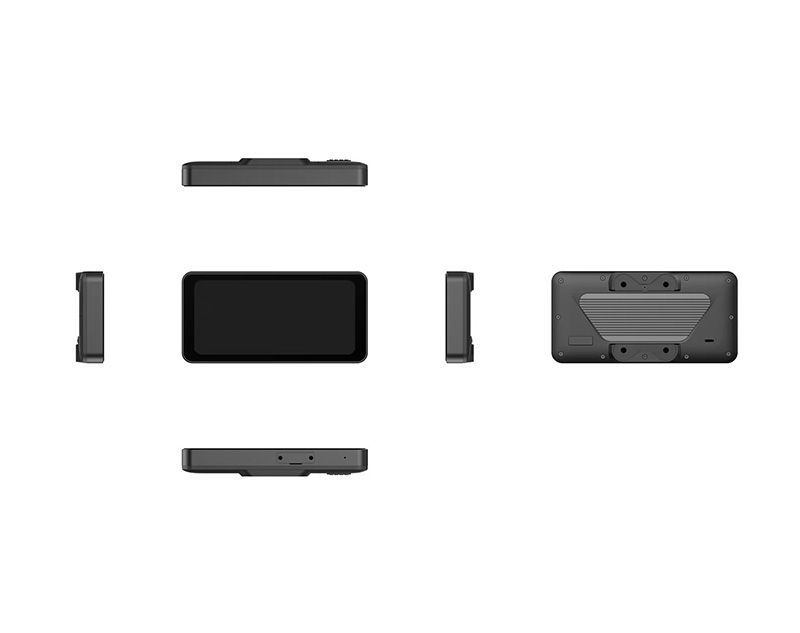

PRODUCT PHOTOS
SPECIFICATION
| 623S Specifications | ||
| General | ||
| Processor: | UIS7861, OCTA CORE, 2*A75 1.6GHz+6*A55 1.6GHz， OS: Android 12 | |
| SDRAM: | 4G+64GB | |
| WIFI: | 2.4G+5G | |
| Display type: | Capacitive touch | |
| Display size&resolution: | 6.25" 720*1560 IPS | |
| Battery： | Cell battery | |

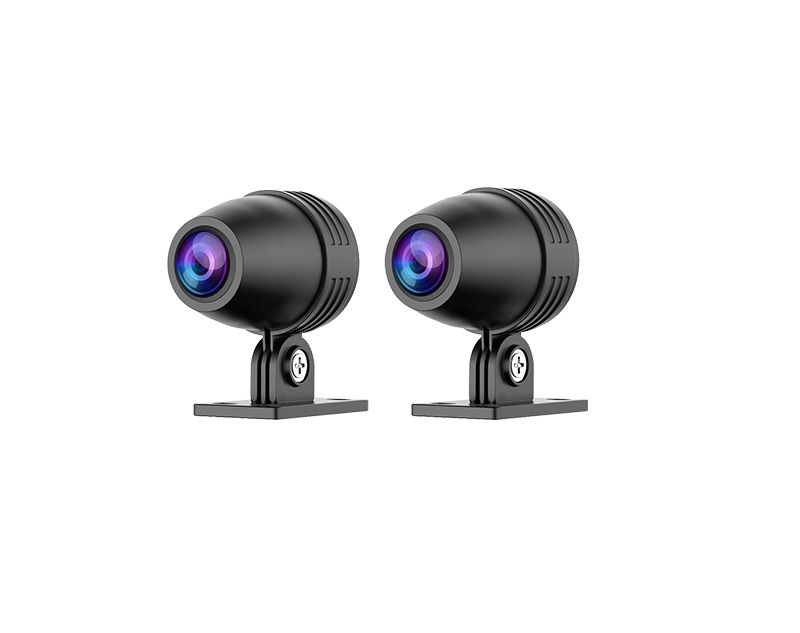

| Cameras&Audio | ||
| Camera Lens: | Resolution/FPS | Front 1080P/25FPS, Rear cam 1080P/25FPS |
| Aperture/construction: | front GC2053+Rear AHD GC2053 | |
| Video encoding format: | TS | |
| Compression ratio: | H.264 | |
| Video recording: | cycle record 2Min/3Min/5Min | |
| Memory: | maximum 256GB | |
| Mic: | Buit-in, 1.8*4mm, 38dB+-2dB | |
| Power consumption: | ||
| Working voltage： | 5~30V | |
| Working current： | <2A | |
| Quiescent current： | <2MA | |

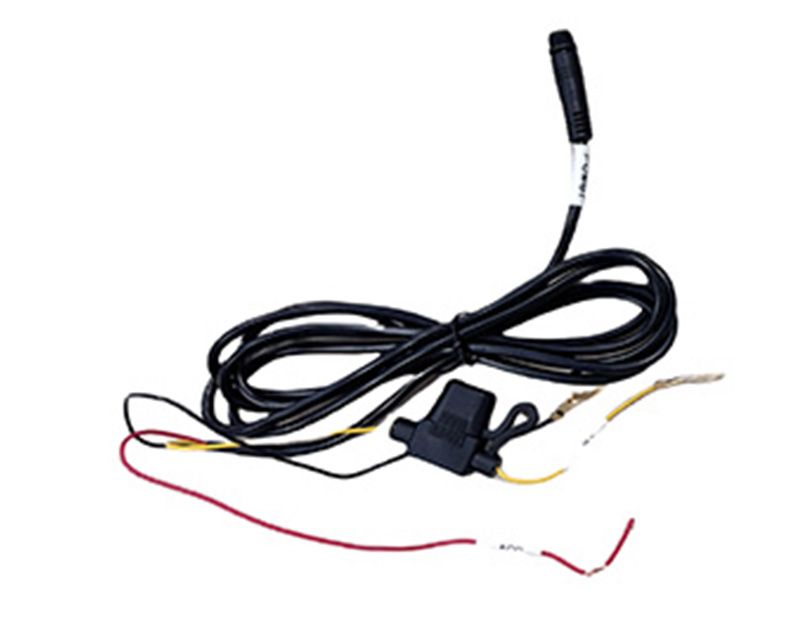

| Power supply: | Through hardwire kit harness, B+/ACC/GND (support battery voltage detection) | |
| Environment | ||
| Operating Temp： | （-20℃-60℃） | |
| Storage Temp： | （-30℃-70℃） | |
| Housing waterproof Rating: | IP67 | |
| Mechanical; | ||
| Product dimensions: | 166*82*37mm | |
| Product weigiht: | 344g | |

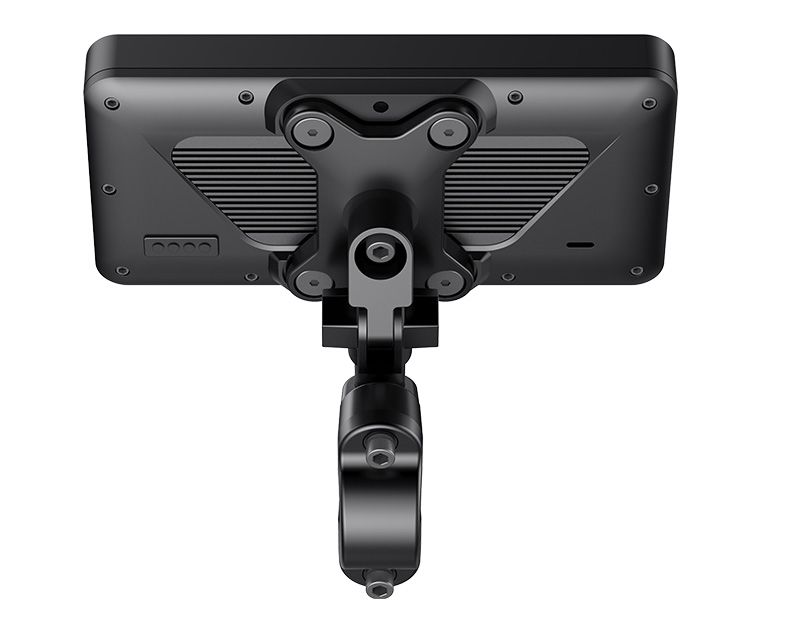

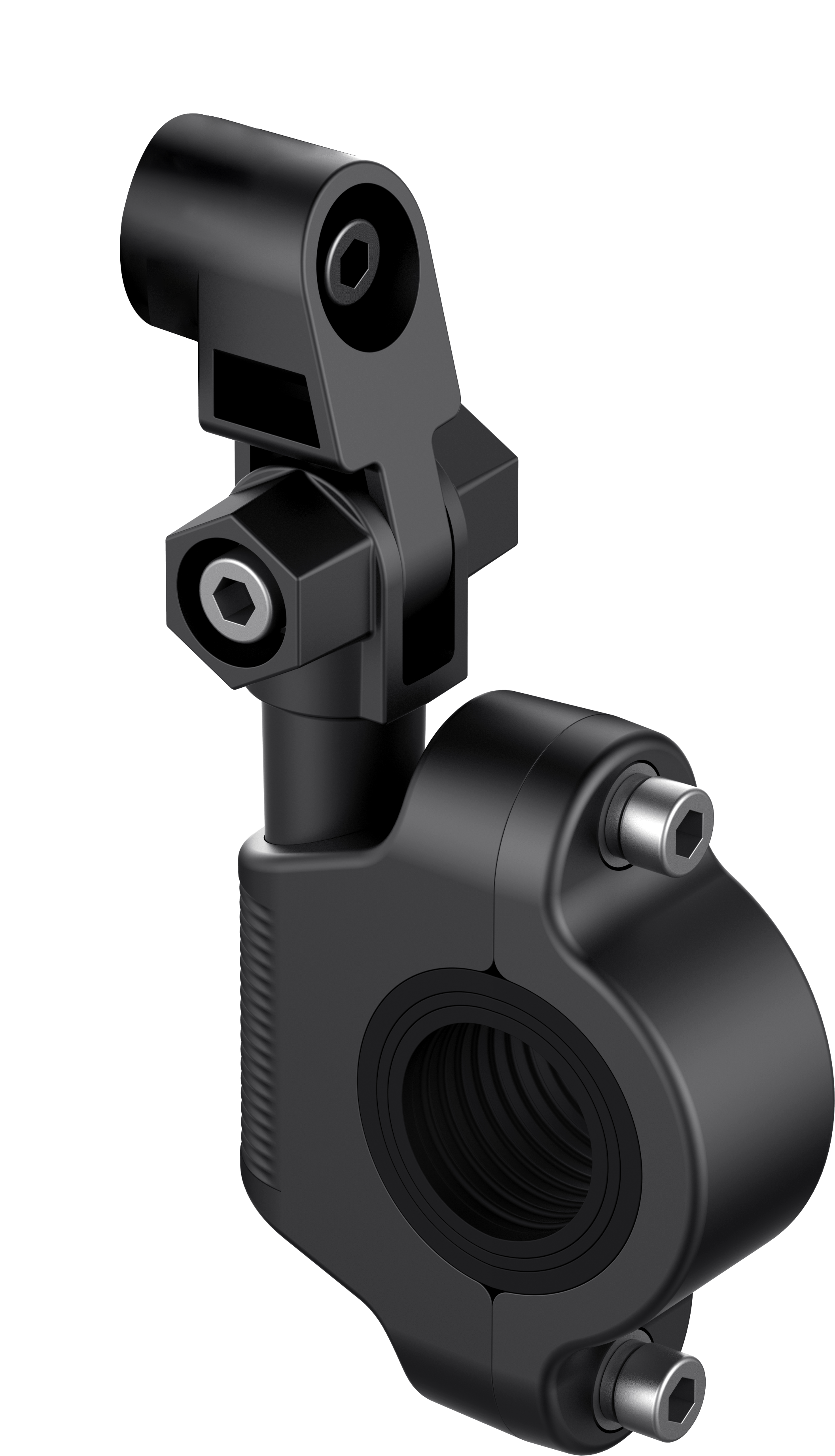

| Install method: | Mount kit | |

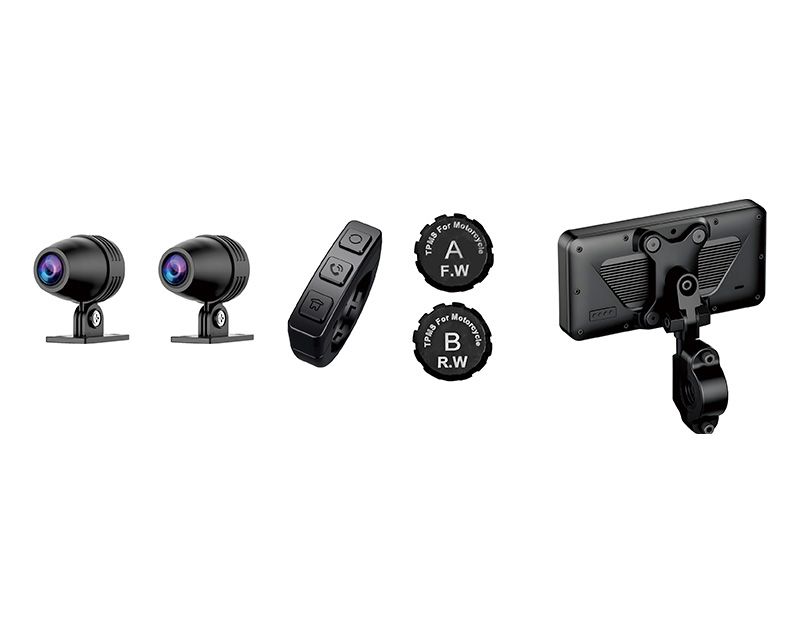

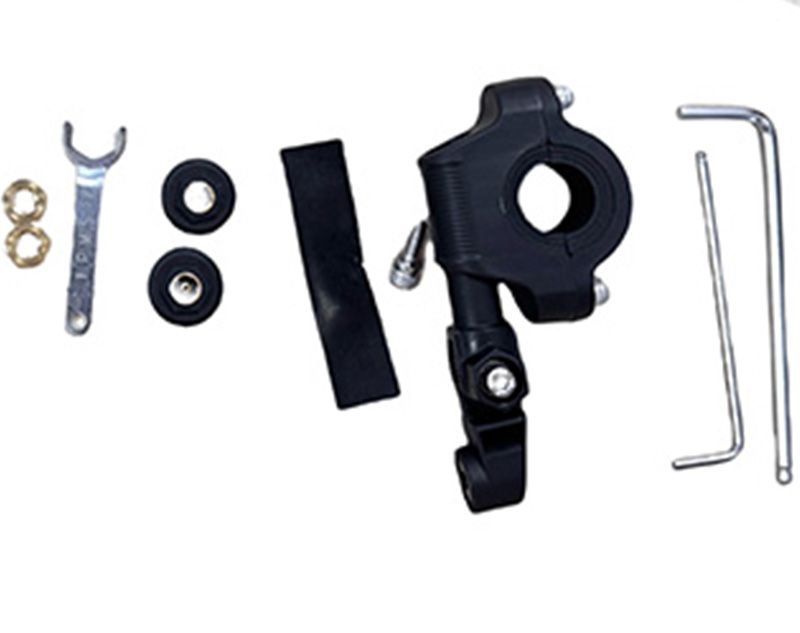

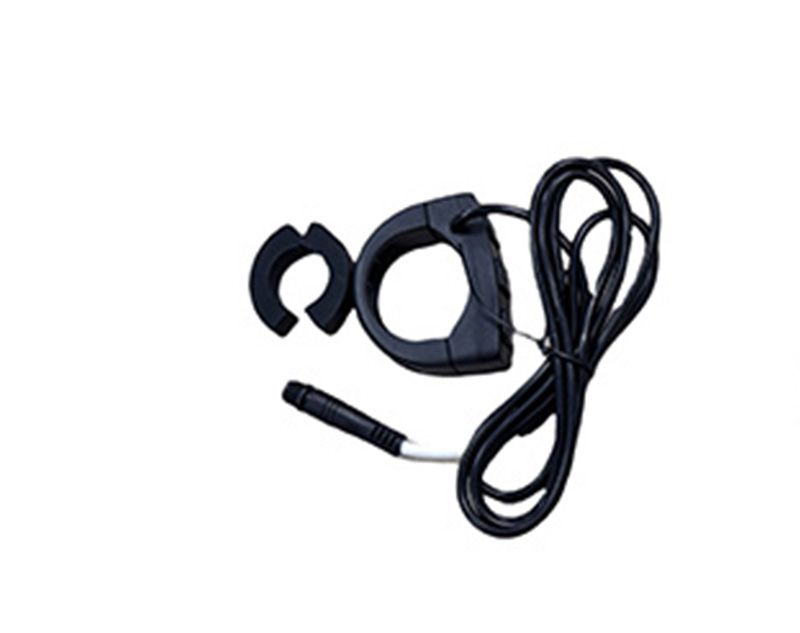

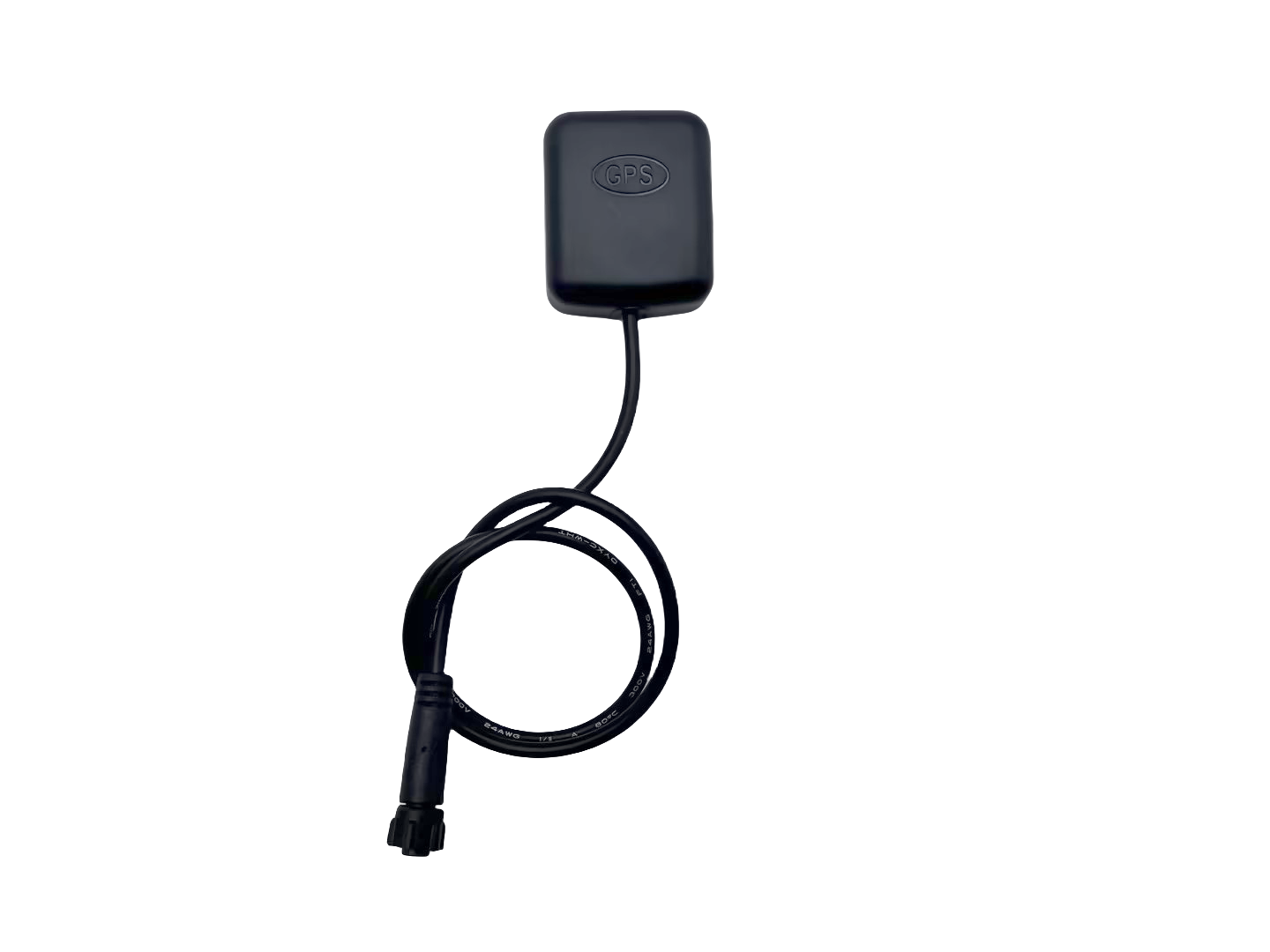

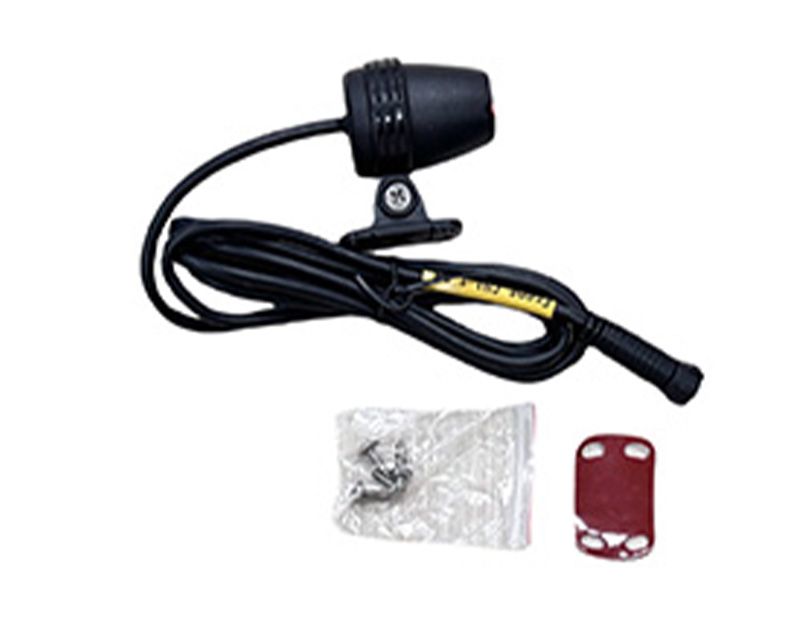

Accessories
