Rear Camera
Rear Camera R11
Compatible with all CMS, CMS-Mirror and DVR devices

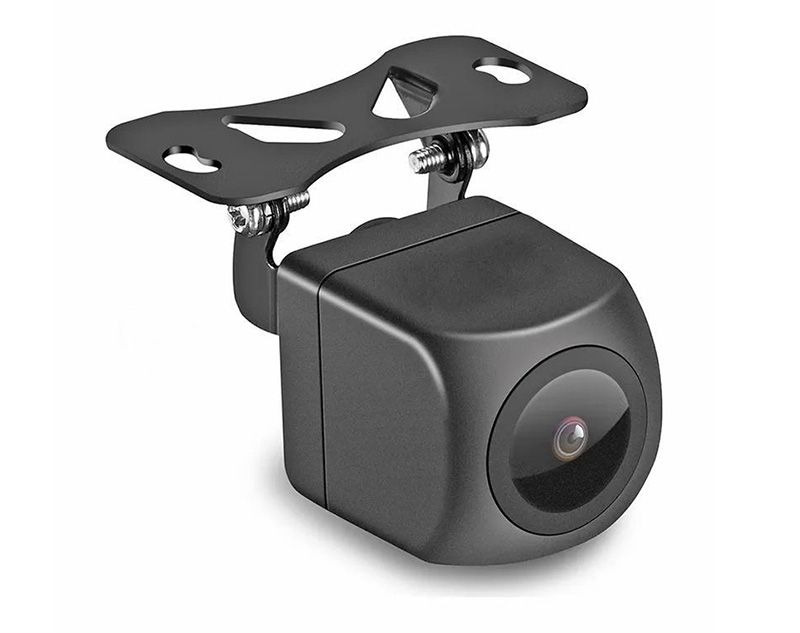

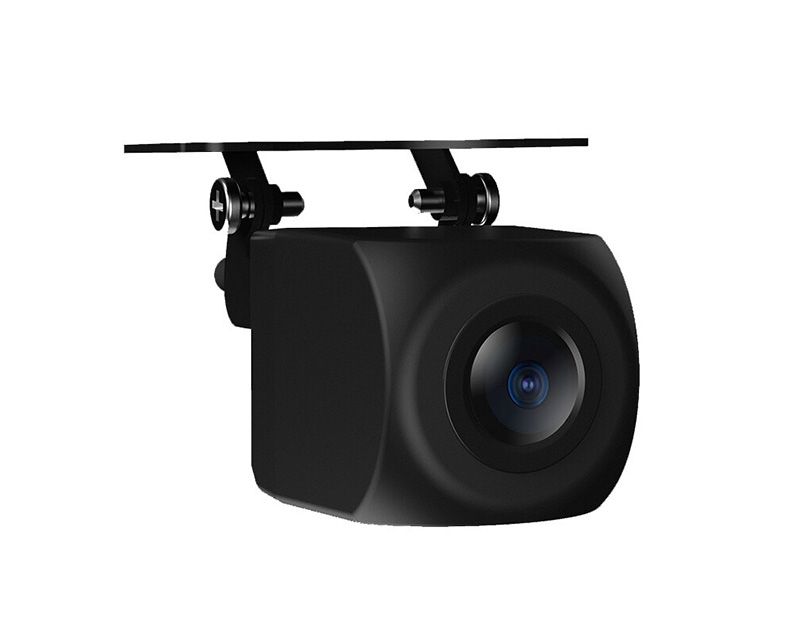

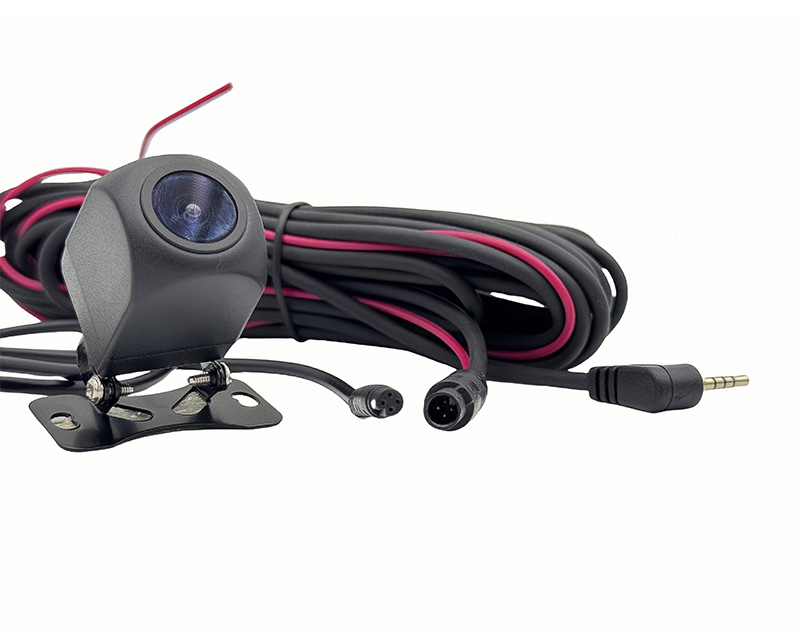

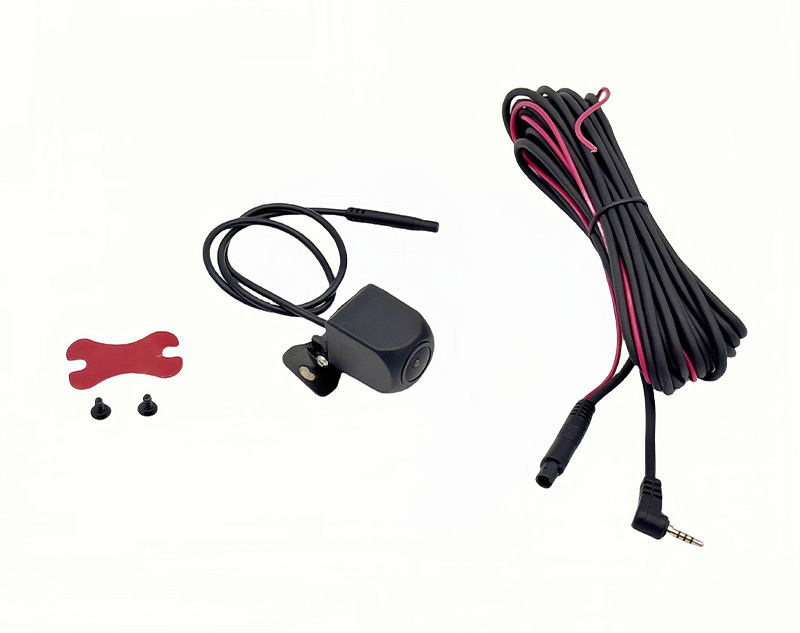

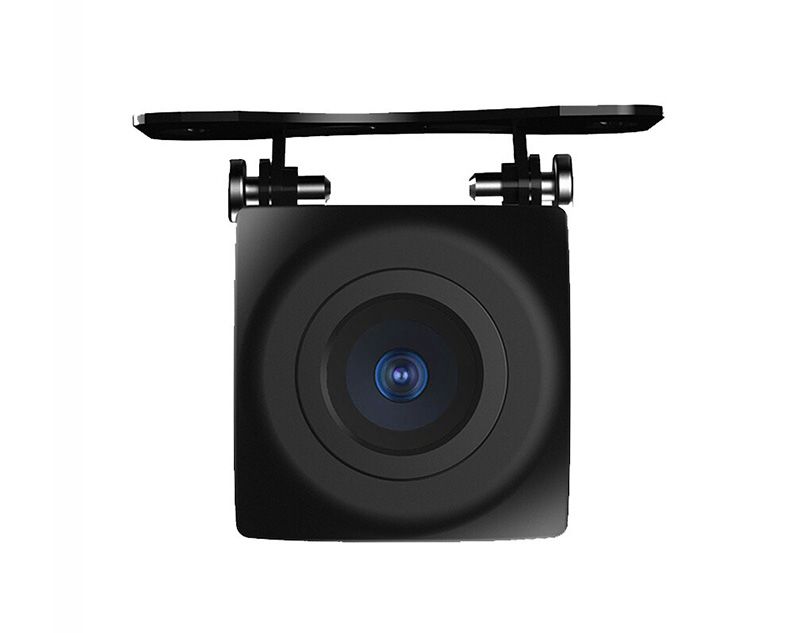

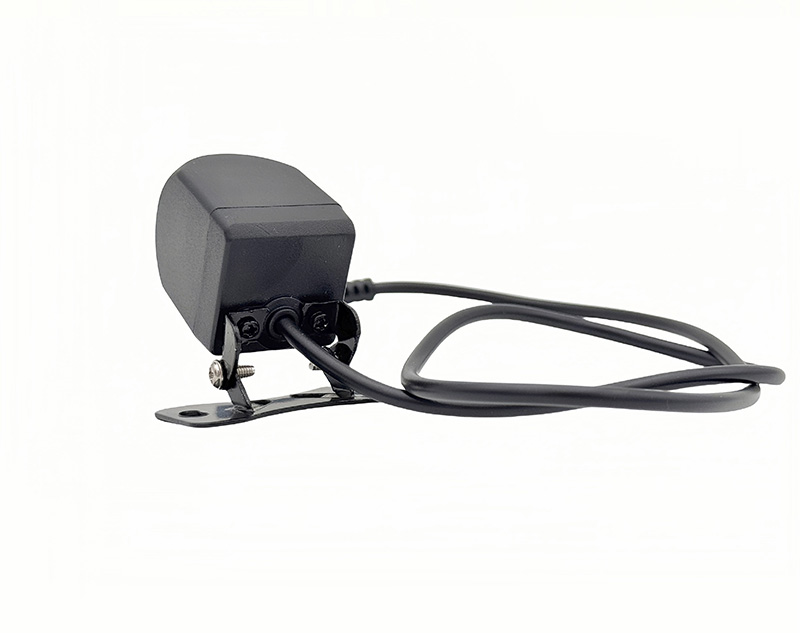

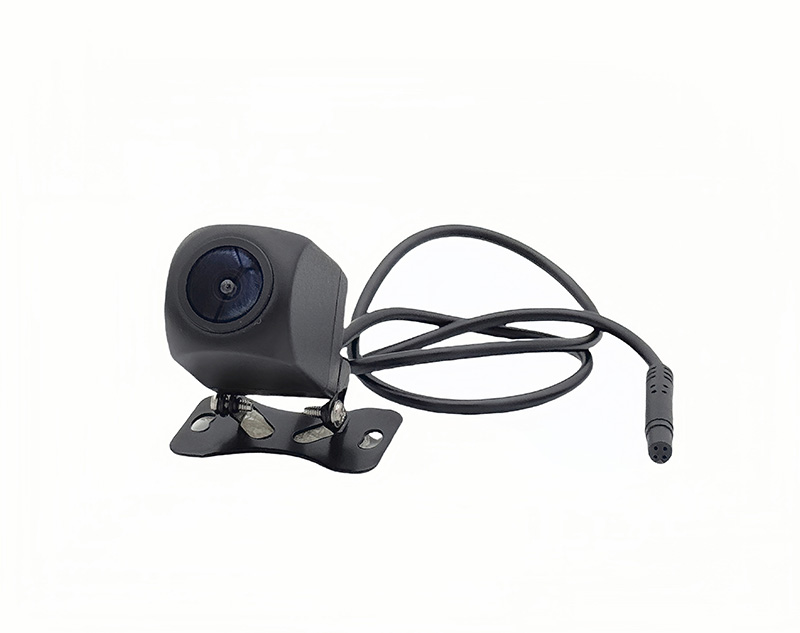

PRODUCT PHOTOS
SPECIFICATION
| R11 Specifications | ||
| Features | ||
| Sensor: | 1/3" CMOS | |
| Rear lens | Resolution/FPS: | AHD 1080p/25fps |
| Aperture: | F2.0 | |
| Construction: | 2G2P | |
| FOV: | D:115° H:128° V:60° | |
| Extention Cable length: | 5.5M | |
| Other features: | Switch to rear view image automatically while reversing, parking assistance line is adjustable | |
| Image Characteristics: | Horizontal Original Image | |
| Video Output Signal: | AHD | |
| Exposure: | Auto | |
| Gain: | Auto | |
| White Balance: | Auto | |
| Low Light Performance: | 0.1 Lux | |
| I/O port: | 2.5mm socket | |
| Power consumption: | ||
| Working voltage： | DC5V | |
| Working current： | <110mA +/- 10mA | |
| Environment | ||
| Operating Temp： | （-20℃-70℃） | |
| Storage Temp： | （-30℃-80℃） | |
| Waterproof Rating: | IP67 | |
| Mechanical; | ||

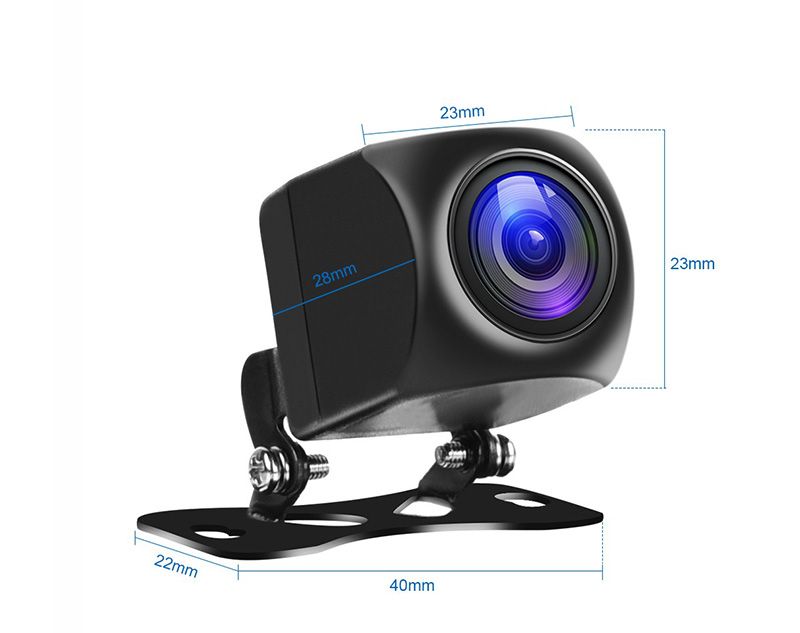

| Product dimensions: | 23mm*23mm*28mm | |
| Product weigiht: | 138g | |
| Install method: | 3M adhesive | |
