Rear Camera
Rear Camera R13
Compatible with all CMS, CMS-Mirror and DVR devices

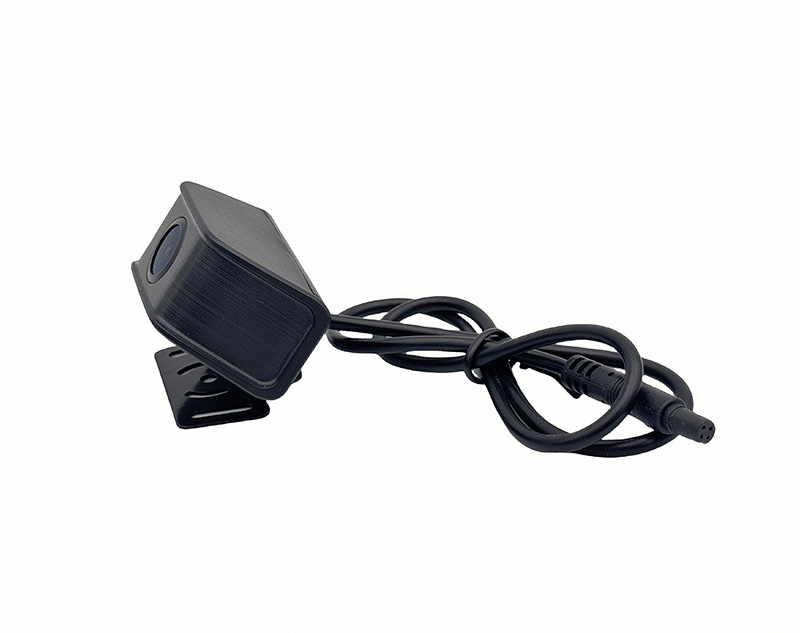

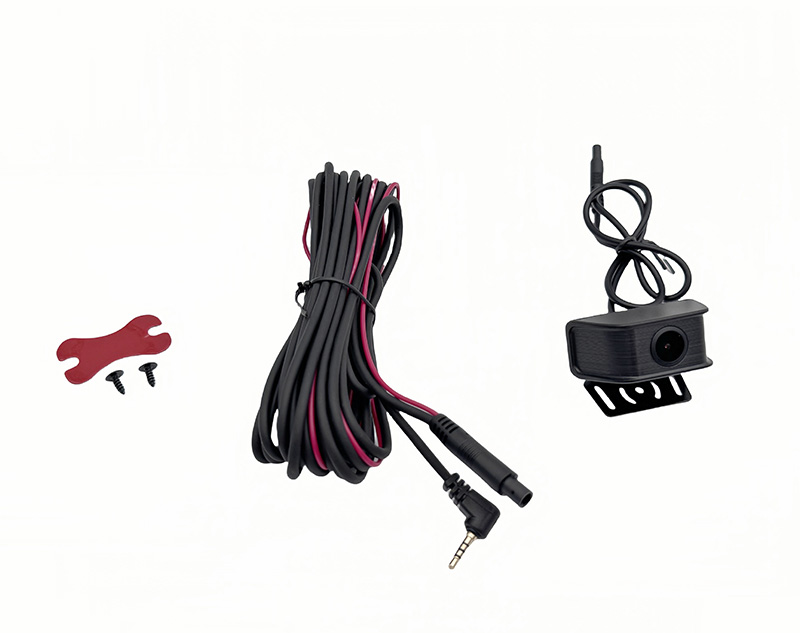

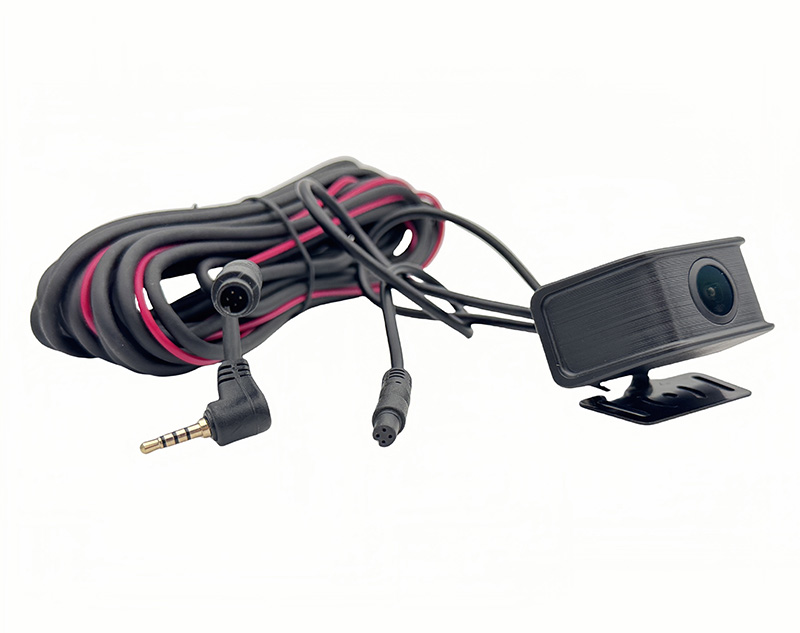

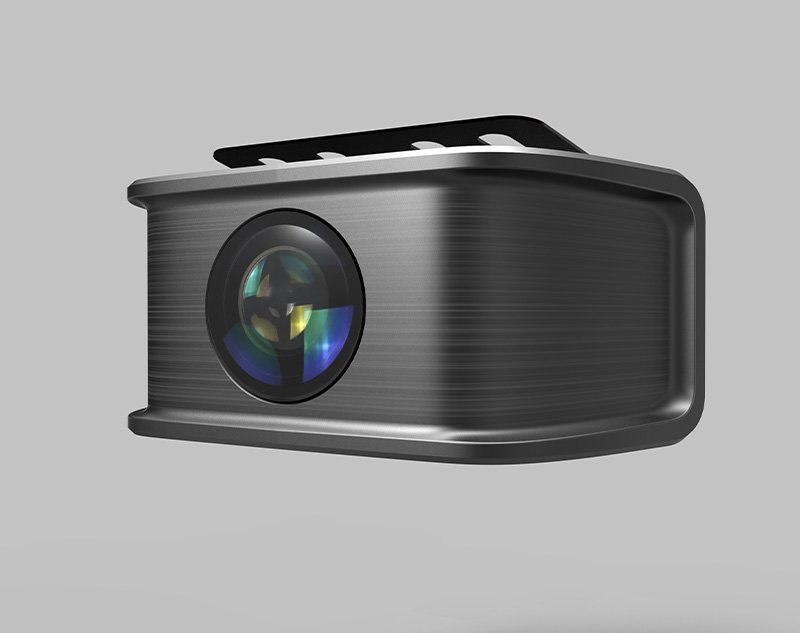

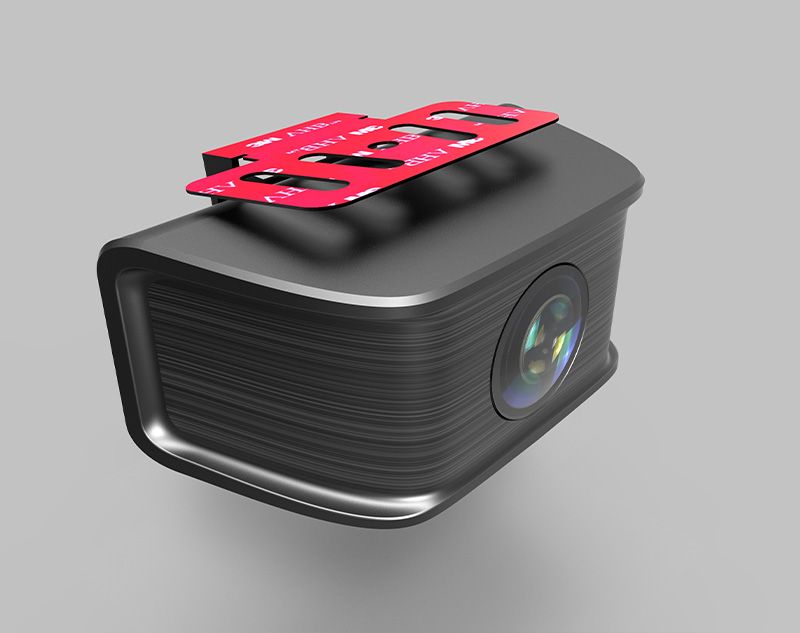

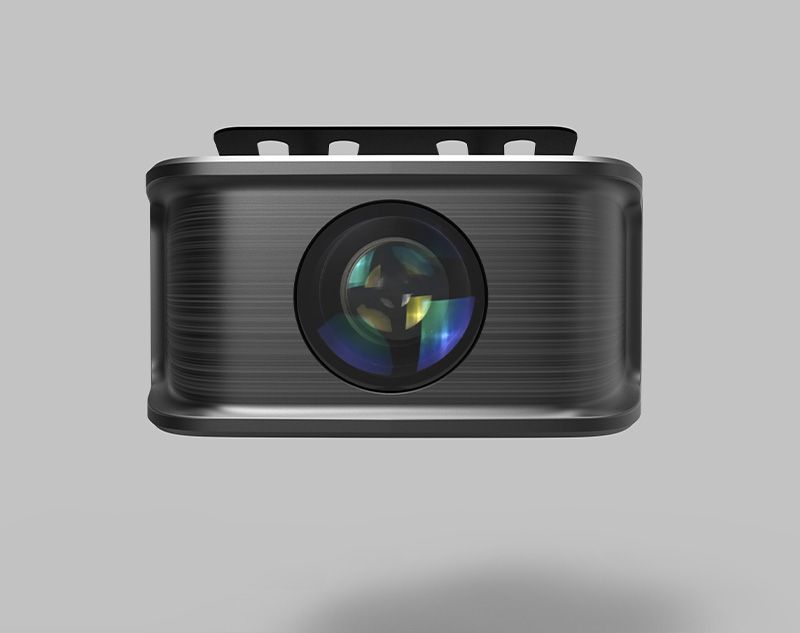

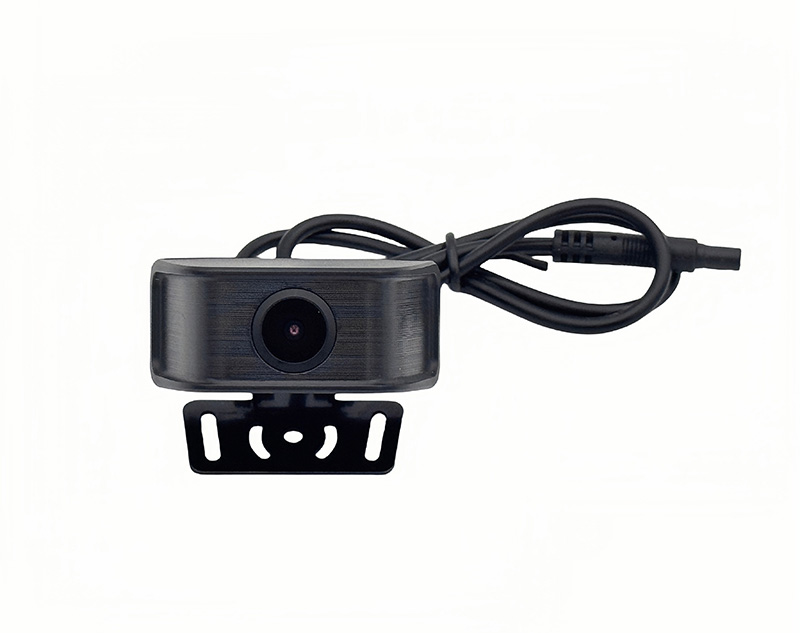

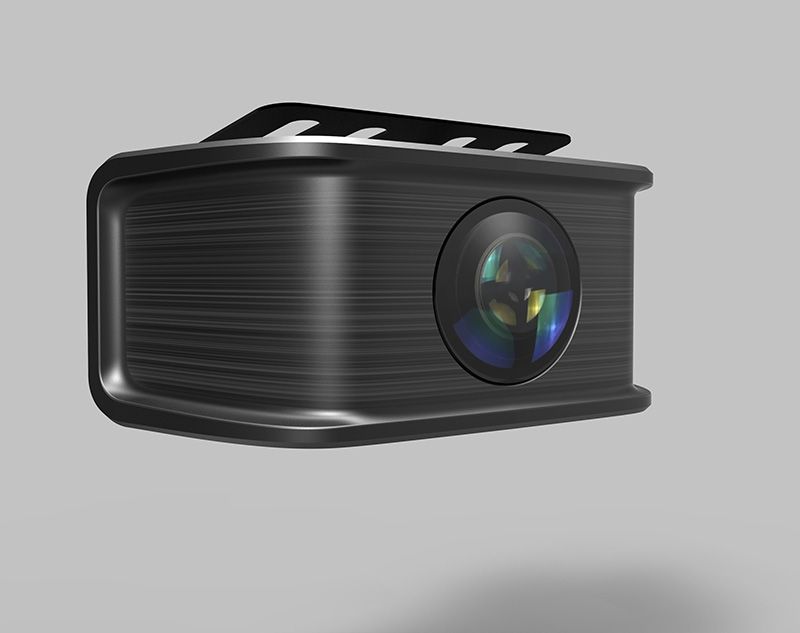

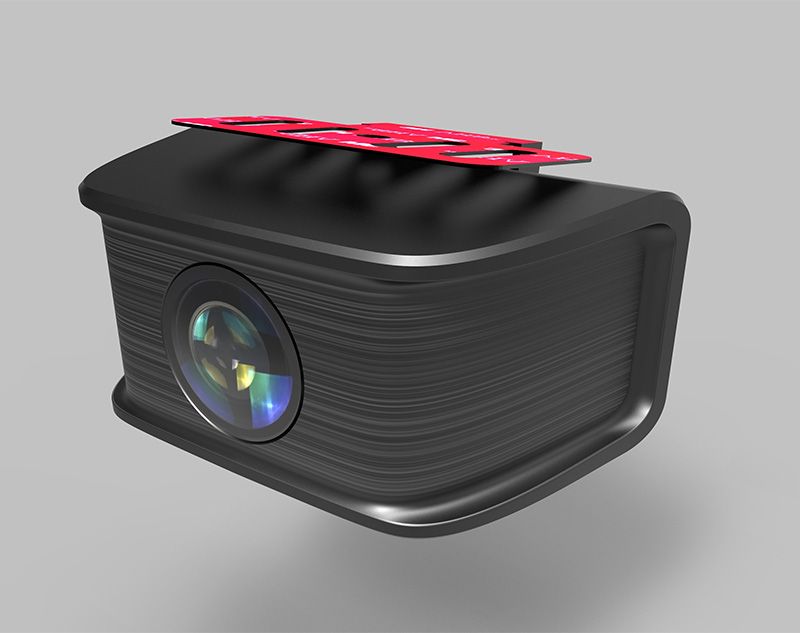

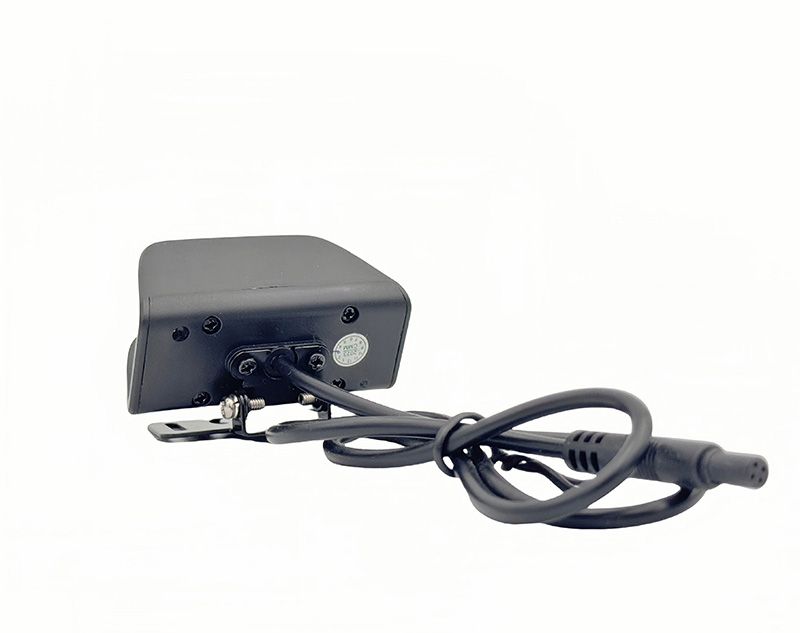

PRODUCT PHOTOS
SPECIFICATION
| R13 Specifications | ||
| Features | ||
| Sensor: | GC2083 | |
| Rear lens | Resolution/FPS: | AHD 1080p/25fps |
| Aperture: | F2.0 | |
| Construction: | 2G2P | |
| FOV: | D:115° H:100° V:60° | |
| Extention Cable length: | 5.5M | |
| Other features: | Switch to rear view image automatically while reversing, parking assistance line is adjustable | |
| Image Characteristics: | Horizontal Original Image | |
| Video Output Signal: | 1.0vpp,75ohm（AHD） | |
| Exposure: | Auto | |
| Gain: | Auto | |
| White Balance: | Auto | |
| Low Light Performance: | 0.001Lux | |
| I/O port: | 2.5mm socket | |
| Power consumption: | ||
| Working voltage： | DC5V | |
| Working current： | 150mA | |
| Environment | ||
| Operating Temp： | （-20℃-70℃) | |
| Storage Temp： | （-30℃-80℃） | |
| Waterproof Rating: | IP67 | |
| Mechanical; | ||
| Product dimensions: | 51.4*22.5mm | |
| Product weigiht: | 152g | |
| Install method: | 3M adhesive | |
