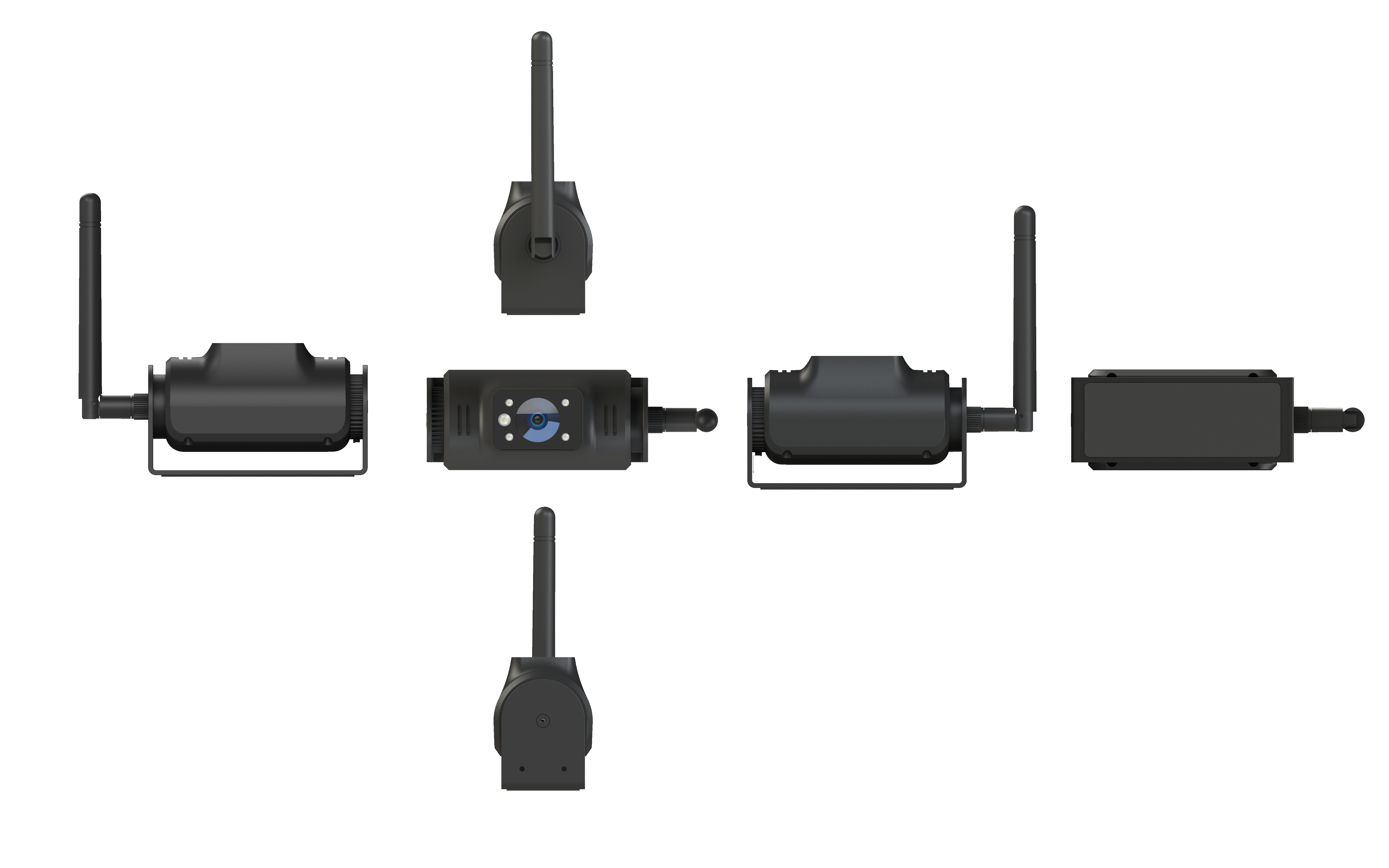

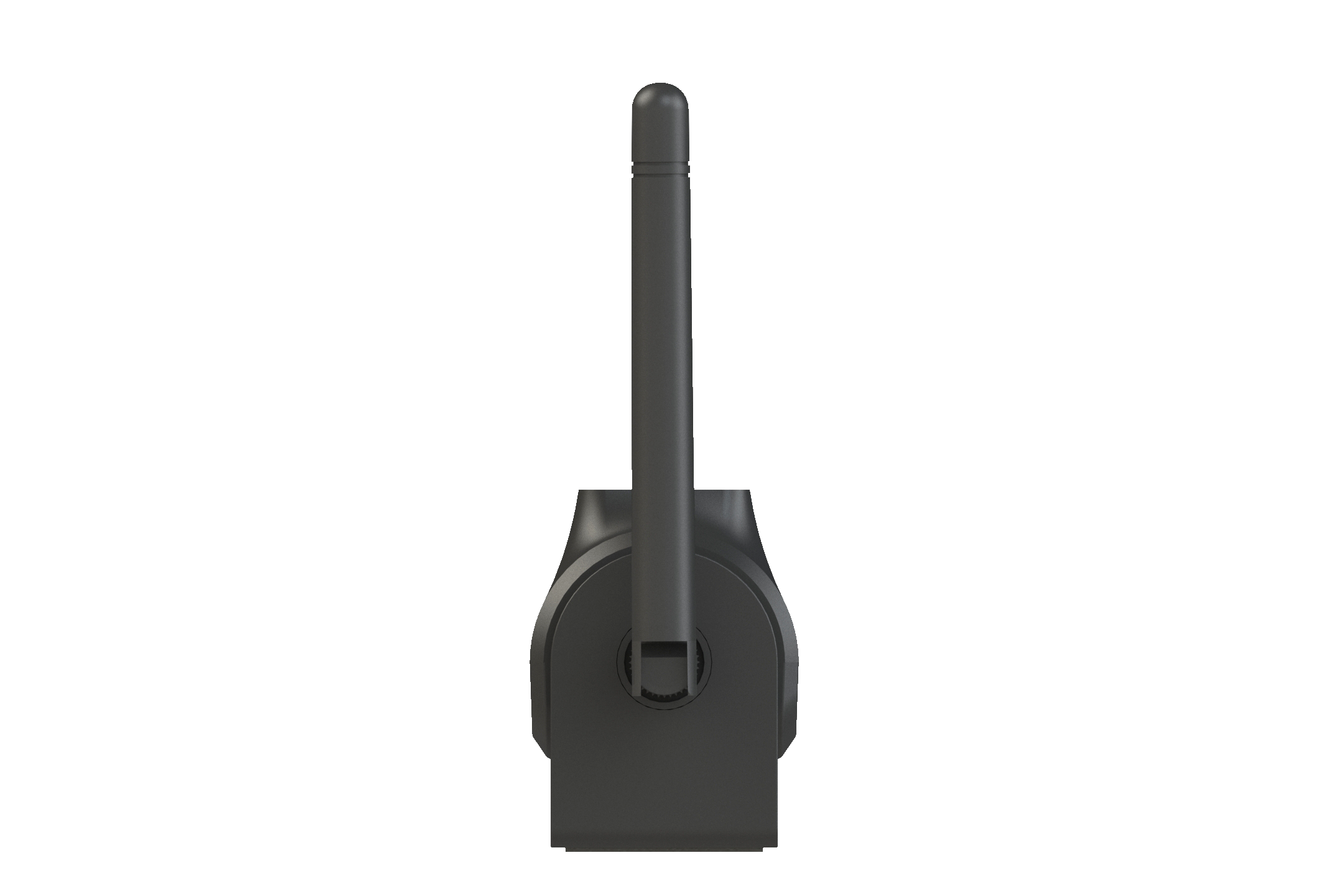

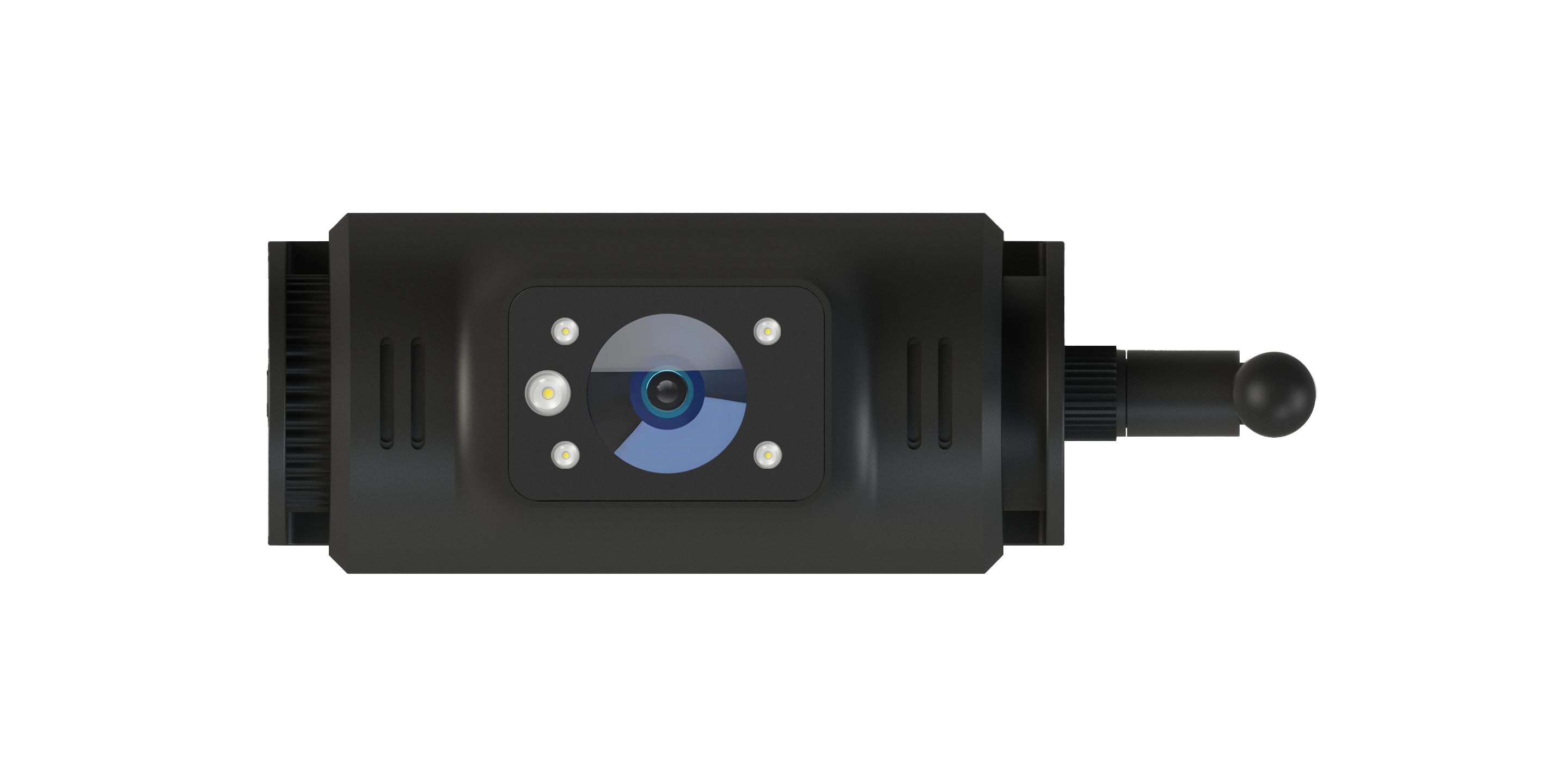

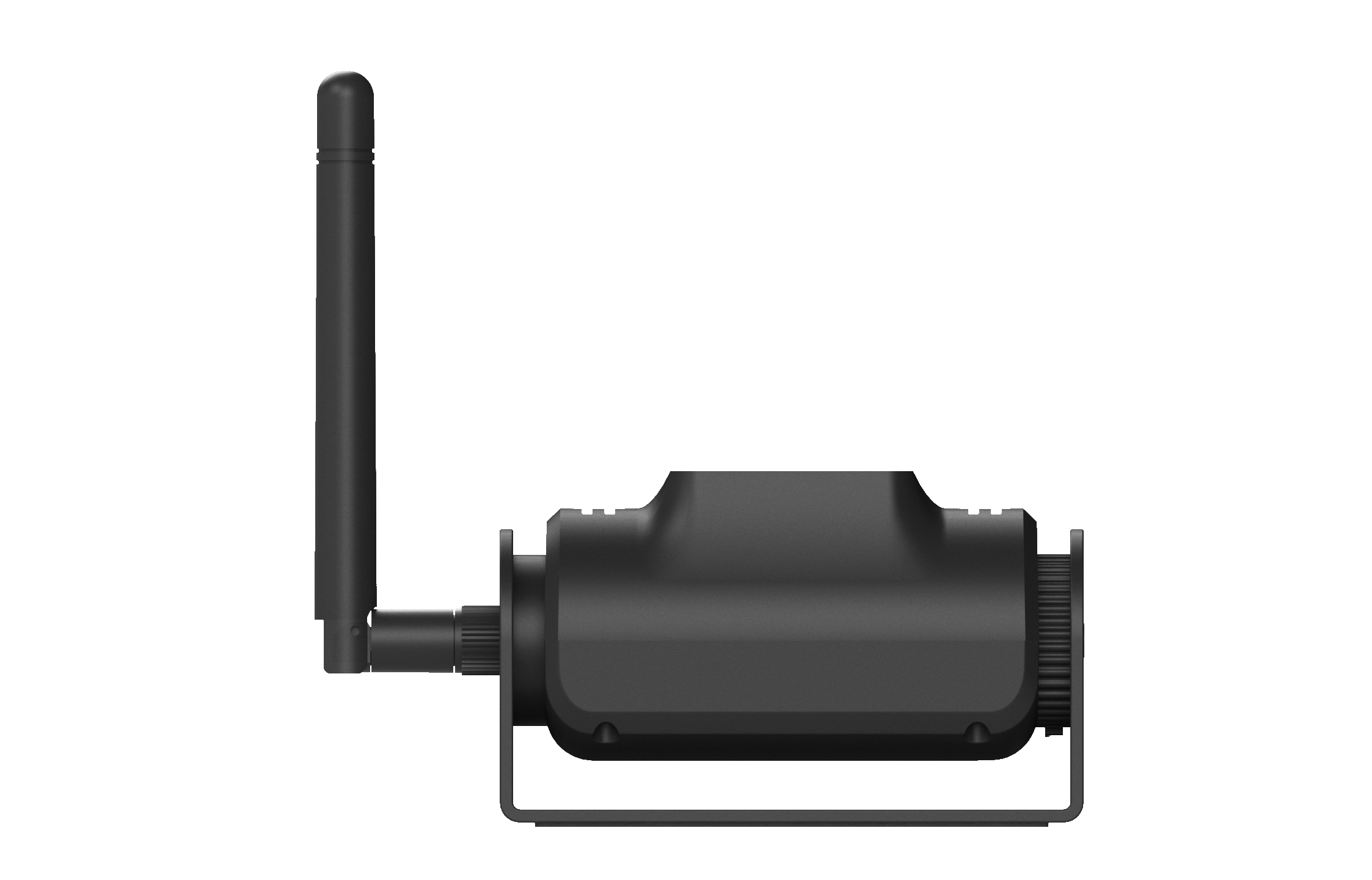

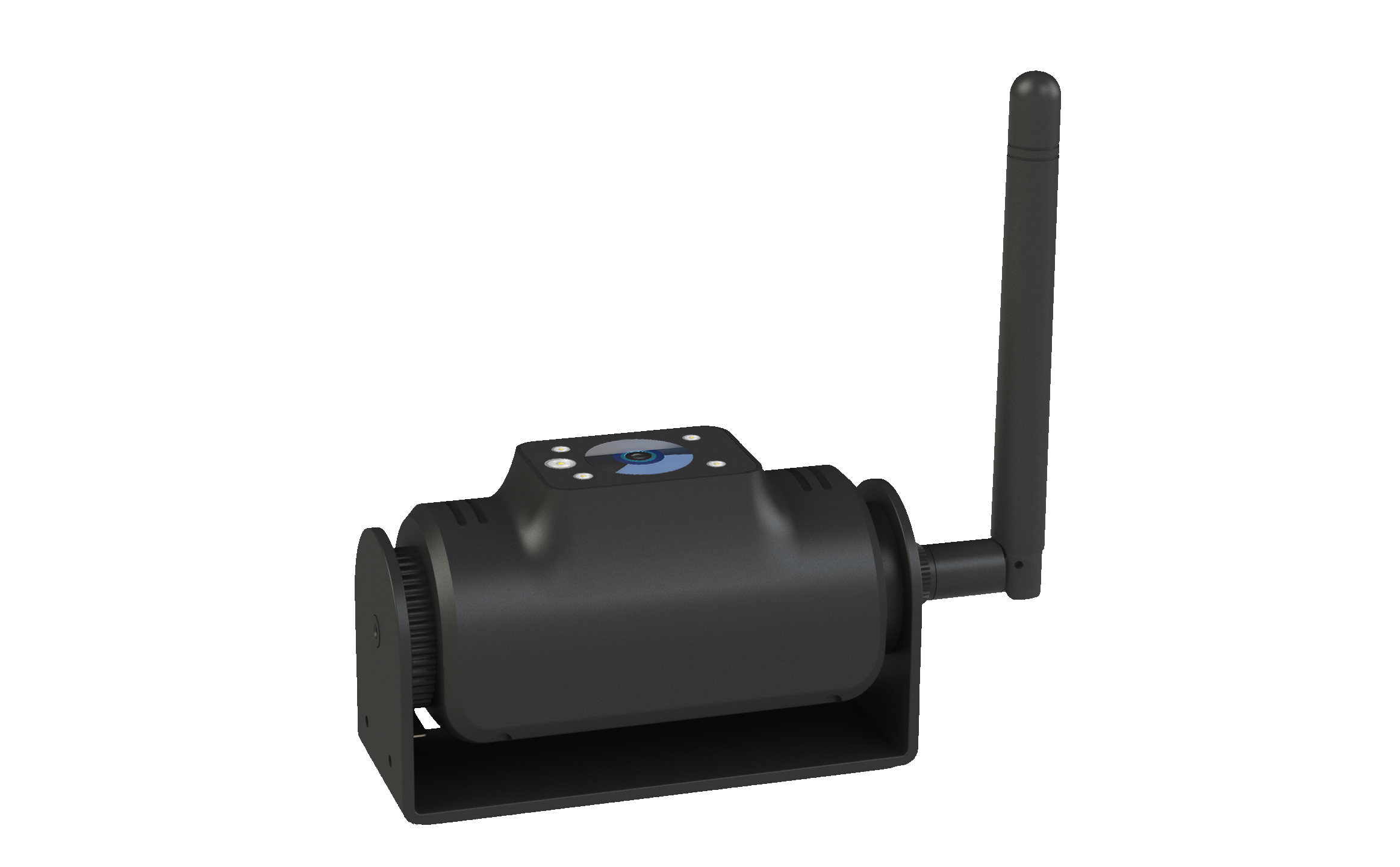

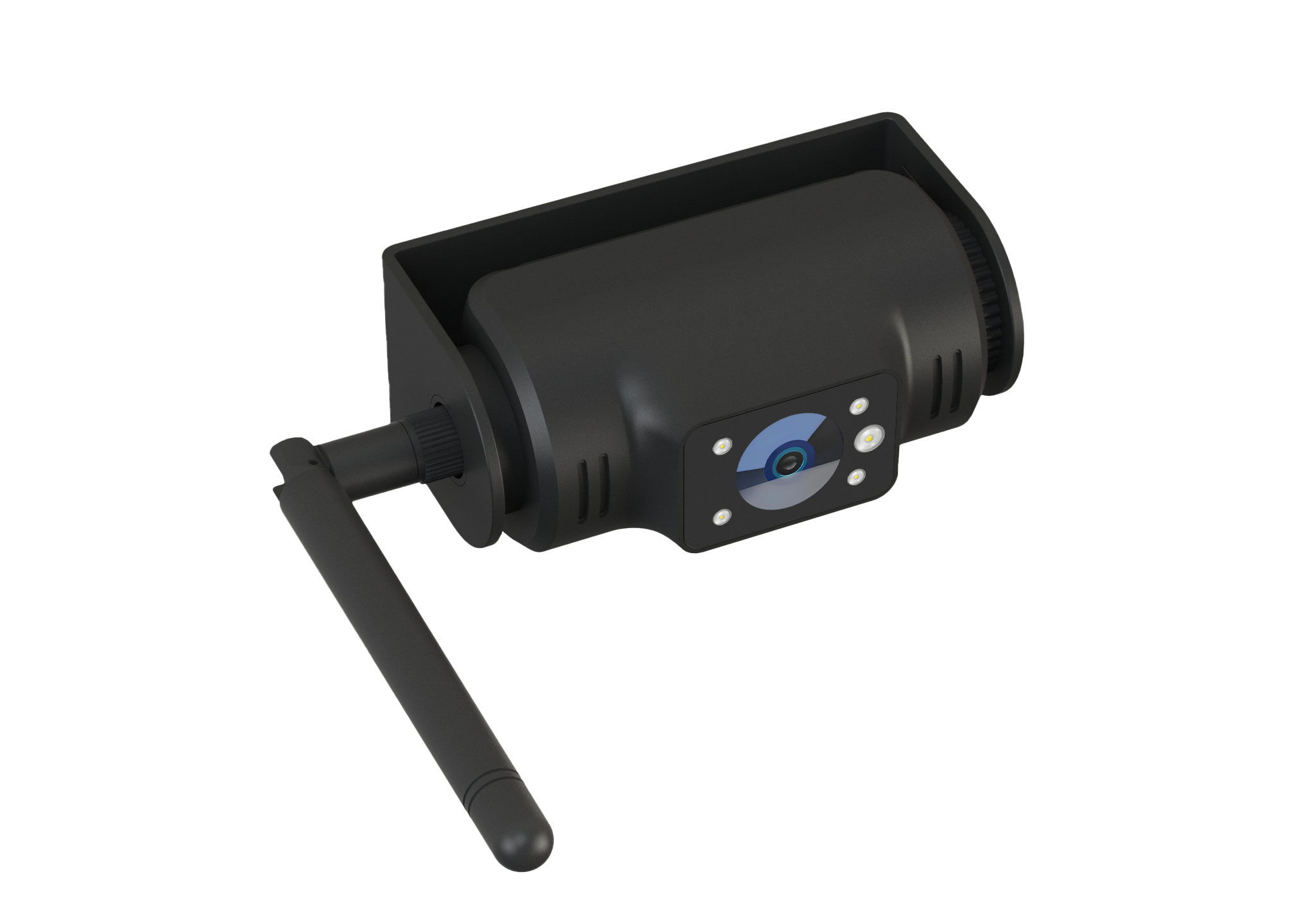

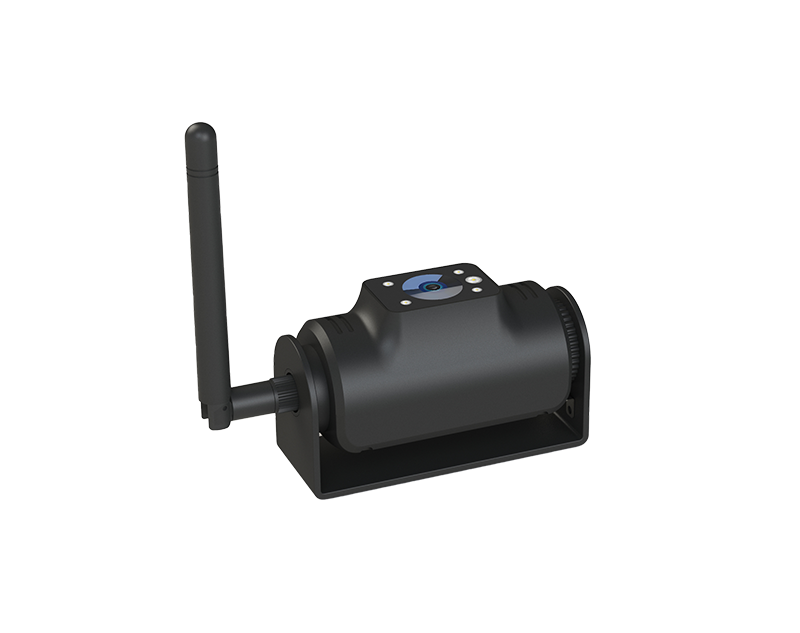

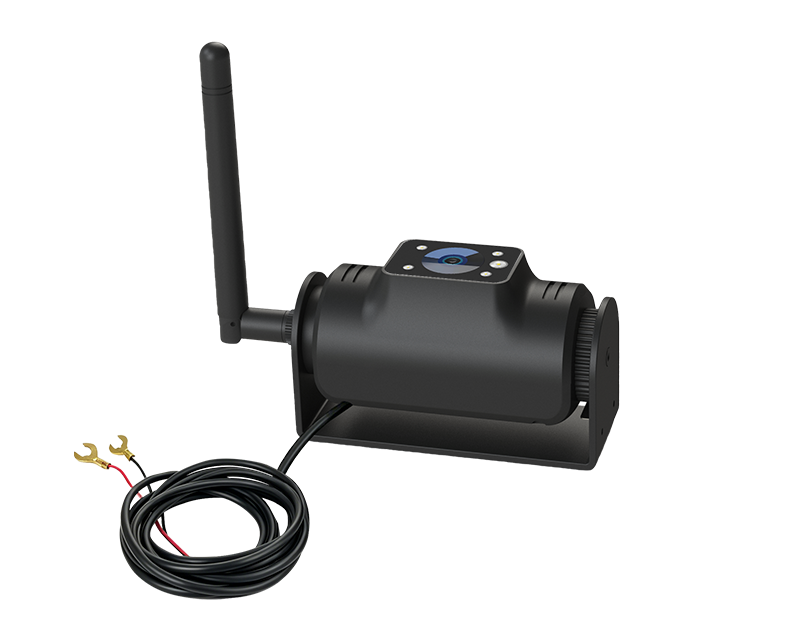

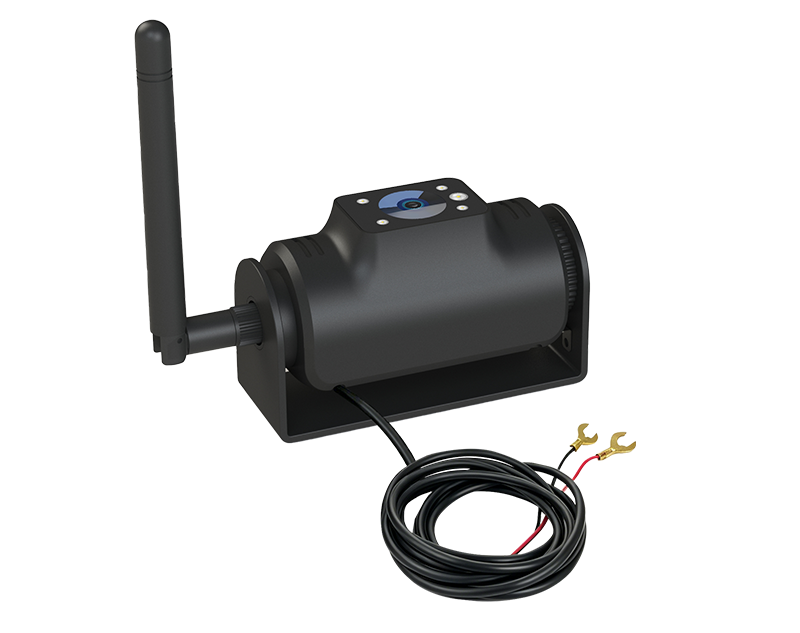

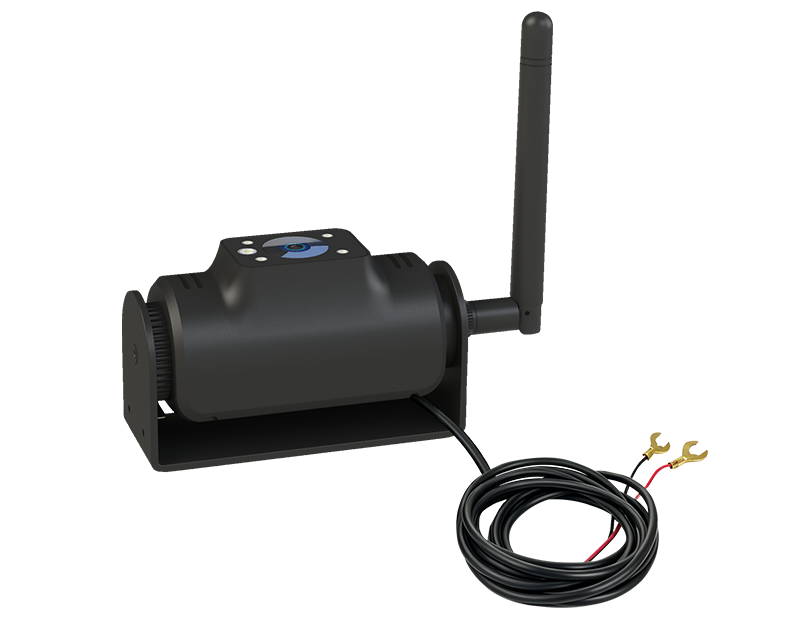

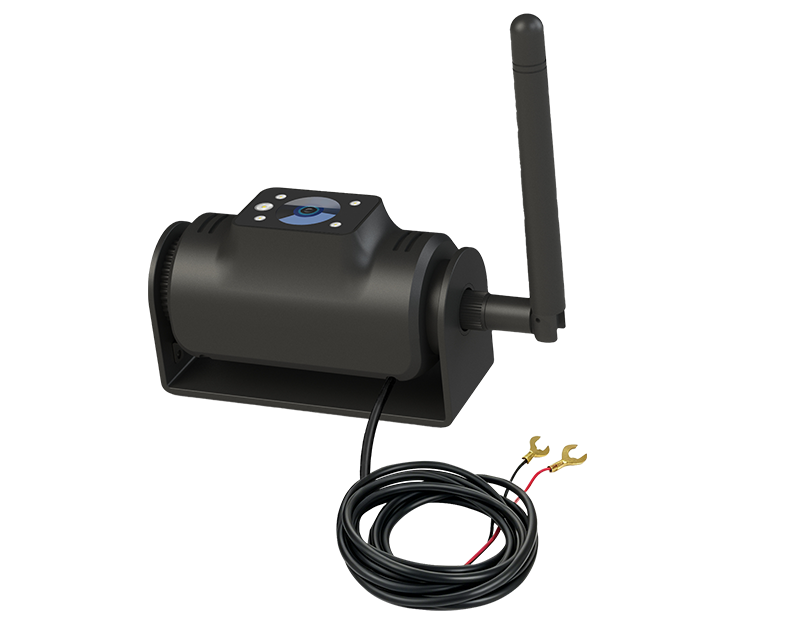

Rear Camera R17
Rear Camera R17 Compatible with Wireless CarPlay Monitor Smart Car Monitor
SPECIFICATION
| R17 Specifications | |||
Wireless Rear Camera | BASEBAND SPEC | Power On | 3S Max |
| Latency | 150ms Max | ||
| Resolution/FPS | 1920*1080,25fps | ||
| CMOS Sensor | GC2053 | ||
| Working Voltage | DC 8~36V | ||
| Working Current | Max 280mA(@12V) | ||
| Working Temperature | -20'C_+65'℃ | ||
| IP Rating | IP67 | ||
| Camera Viewing Angle | Horizontal: 123°, Vertical: 72.5°, Diagonal: 132° | ||
| RF SPEC | Transmission Distance | Typical: 60–100m (open area, line-of-sight) | |
| Frequency Hopping | 2412-2484MHz, total 14 channels | ||

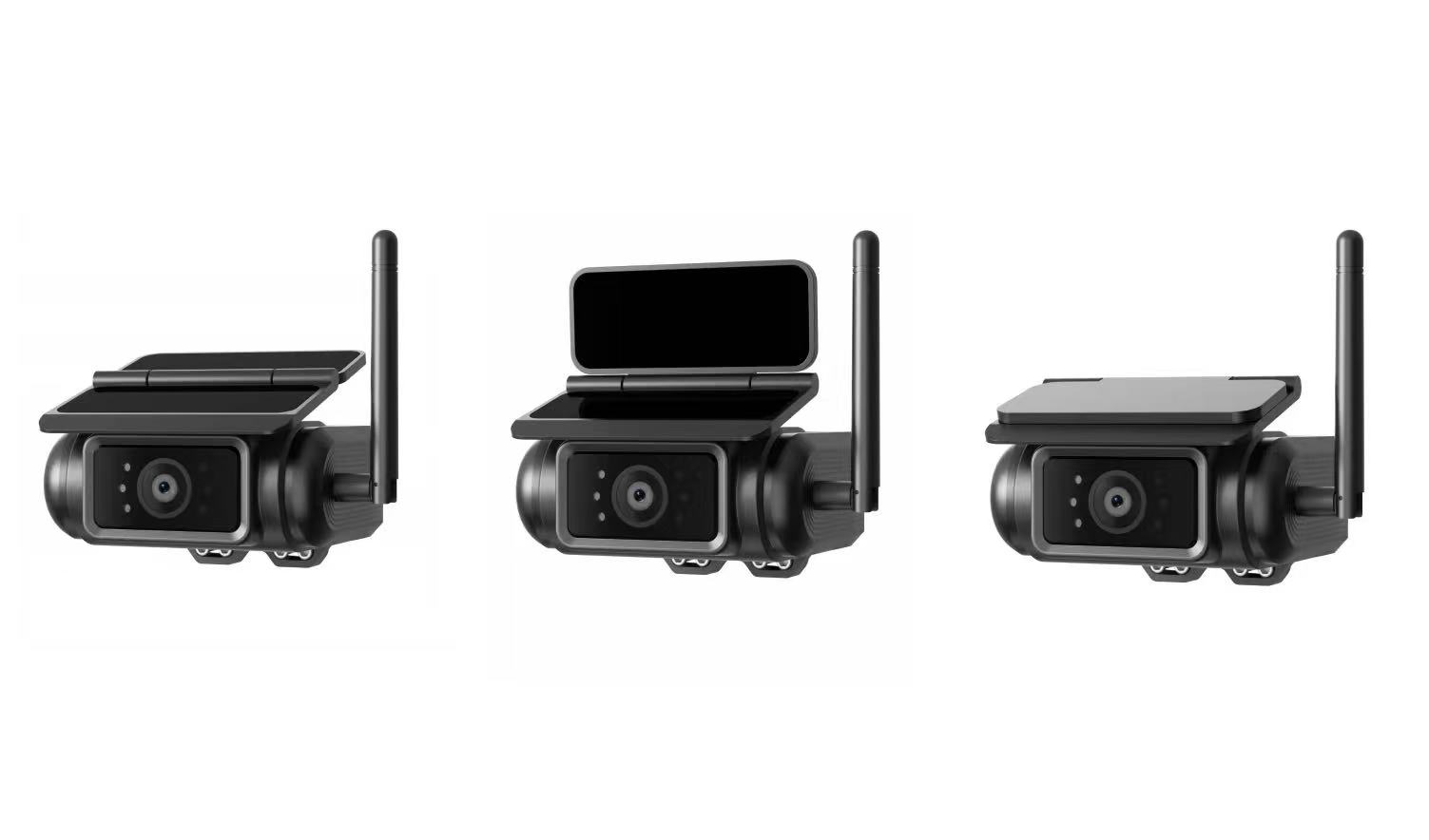

Related Products
Compatible with all CMS, CMS-Mirror and DVR devices
