Design Series F
USP
-
01
Supporting CarPlay and Android Auto.
-
02

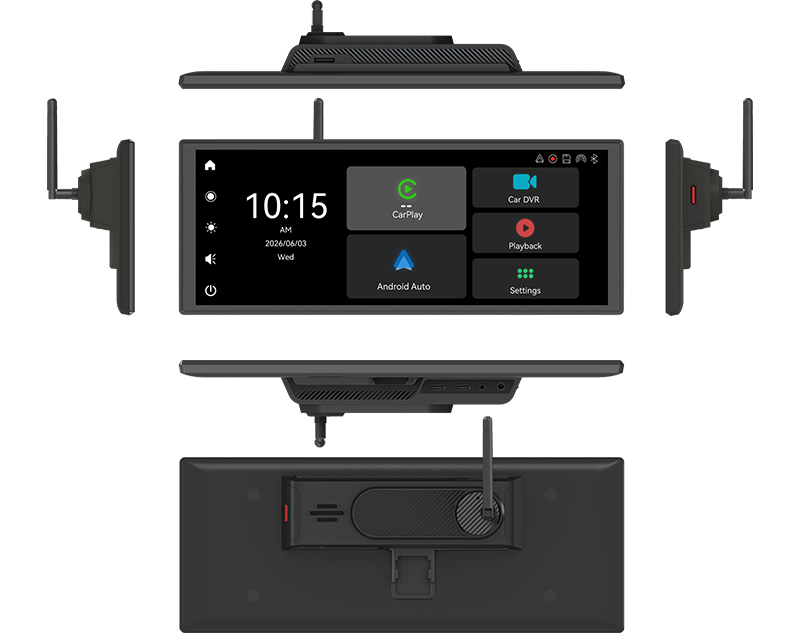

Exclusive and creative ID design
-
03

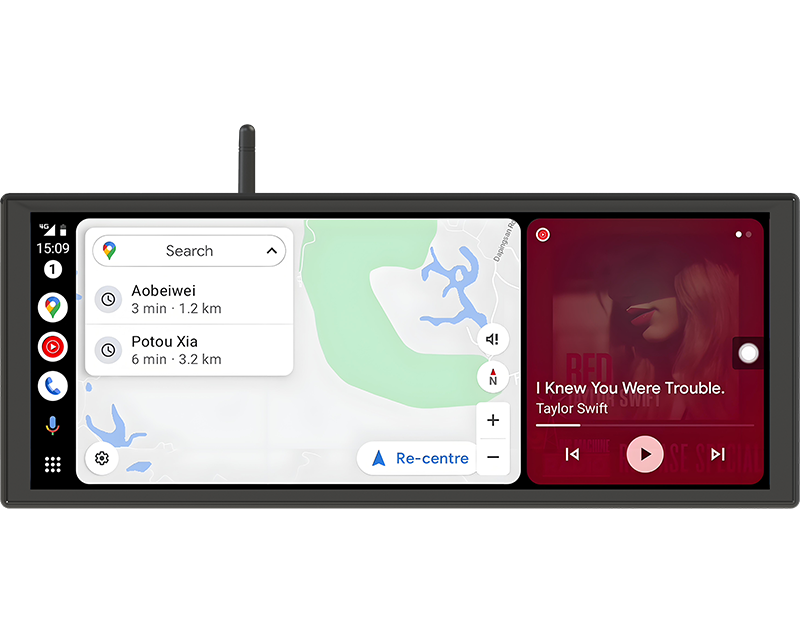

Brand new GUI
-
04

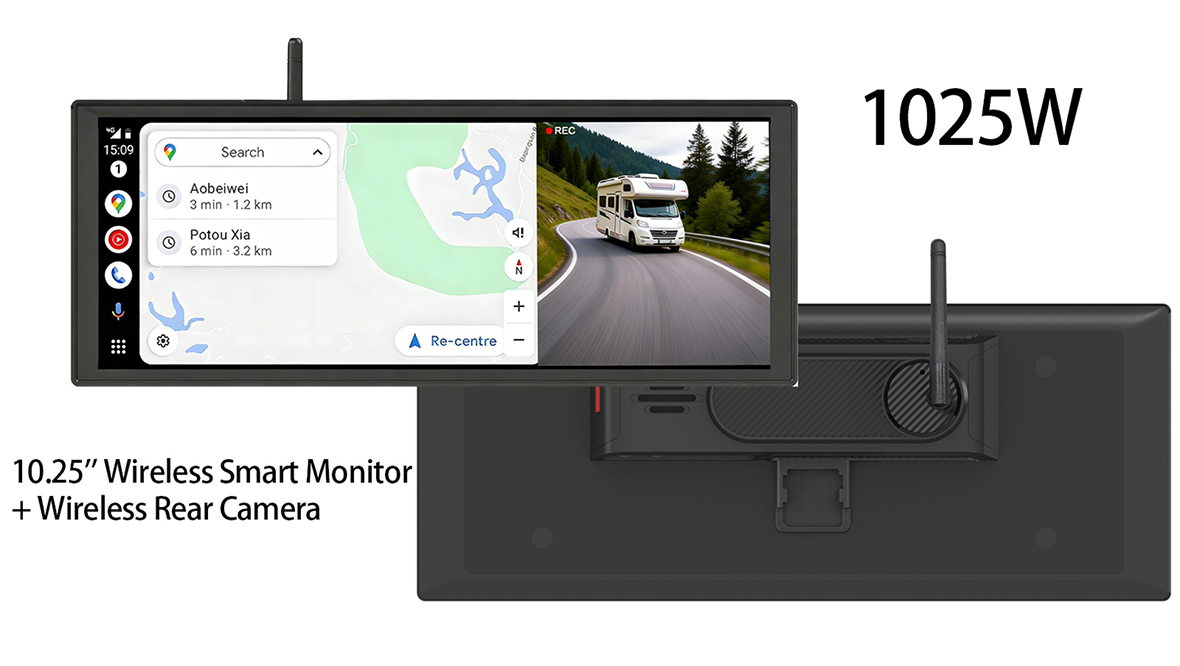

With both external camera and wireless camera
-
05

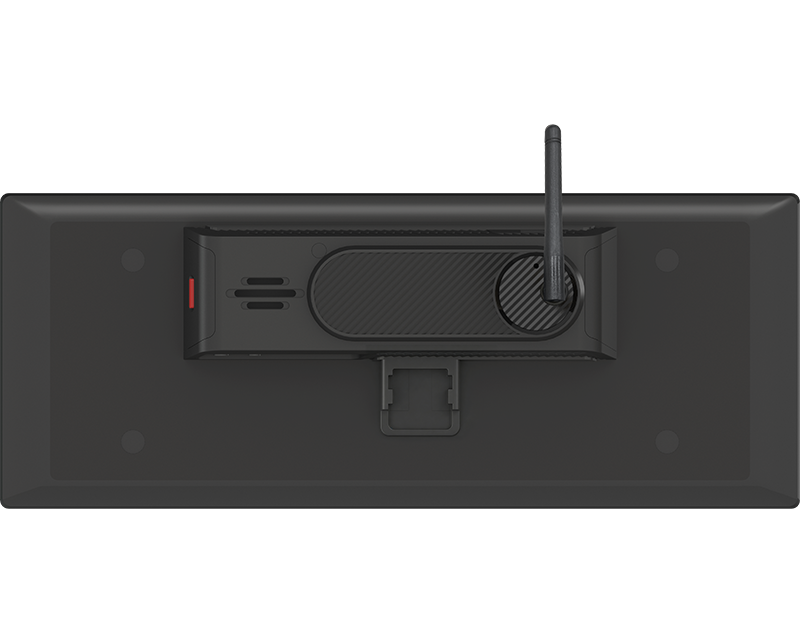

Improved sound quality by box speaker

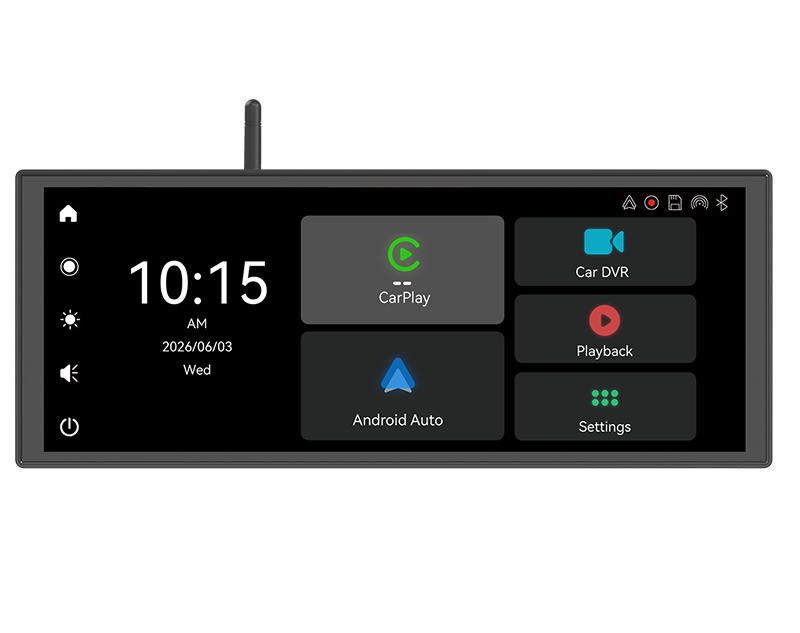

GUI
SPECIFICATION
| 1025W Specifications | |||
| General | |||
| Processor: | Dual core A53-1.2Ghz | ||
| FLASH： | 128MB | ||
| DDR: | 256MB | ||
| Display type: | Glass capacitive multi-touch IPS | ||
| Display size&resolution: | 10.25.0inch, 1920*720 | ||
| Display brightness: | 450Nit | ||
| Battery： | Cell battery（for RTC） | ||
| Camera Parameters | |||
| Front Camera | Optical Sensor | GC2053 | |
| Resolution/FPS | Seperated type, 1080p/25fps | ||
| Aperture/construction | F2.0/2G2P | ||
| Wireless Rear Camera | BASEBAND SPEC | Power On | 3S Max |
| Latency | 150ms Max | ||
| Resolution/FPS | 1920*1080,25fps | ||
| CMOS Sensor | GC2053 | ||
| Working Voltage | DC 8~36V | ||
| Working Current | Max 280mA(@12V) | ||
| Working Temperature | -20'C_+65'℃ | ||
| IP Rating | IP67 | ||
| Camera Viewing Angle | Horizontal: 123°, Vertical: 72.5°, Diagonal: 132° | ||
| RF SPEC | Transmission Distance | Typical: 60–100m (open area, line-of-sight) | |
| Frequency Hopping | 2412-2484MHz, total 14 channels | ||
| Loop recording | 1min/3min/5min | ||
| Parking monitor: | N/A | ||
| Wireless connections & sensors | |||
| WiFi: | Support carplay or Android Auto | ||
| BT: | 4.2 | ||
| FM transmitter: | Yes | ||
| GPS: | NA | ||
| G-sensor: | NA | ||
| I/O Ports | |||
| Mic: | Yes-Electret MIC-1.5*4MM, -34DB | ||
| Speaker: | 8ohm,2W | ||
| Voice command: | Via Siri/Google assistant | ||
| AUX socket | Yes, 3.5mm | ||
| Rear Camera connector: | 2.5mm socket | ||
| Micro SD card slot: | Yes, up to 128GB | ||
| External GPS antenna socket | N/A | ||
| Power input： | Type C | ||
| Physical Buttons: | Power, Reset | ||
| Advanced features | |||
| Light sensor | Built-in | ||
| ADAS | N/A | ||
| Power consumption | |||
| Working voltage： | DC 5V | ||
| Working current： | <1.5 A | ||
| Quiescent current： | <10MA | ||
| Power supply: | Car charger or hardwire kit(optional) | ||
| Software and update | |||
| OS: | LINUX 4.9 | ||
| Firmware update: | Through Micro SD card, OTA will be available in future | ||
| Environment | |||
| Operating Temp： | （-20℃-70℃） | ||
| Storage Temp： | （-20℃-75℃） | ||
| Mechanical | |||
| Product dimensions: | 26.0*10.3*7.6cm | ||
| Product weigiht: | 427g | ||
| Install method: | Dashboard mount；Suction mount | ||
In The Box
Main device
AUX cable
Car charger

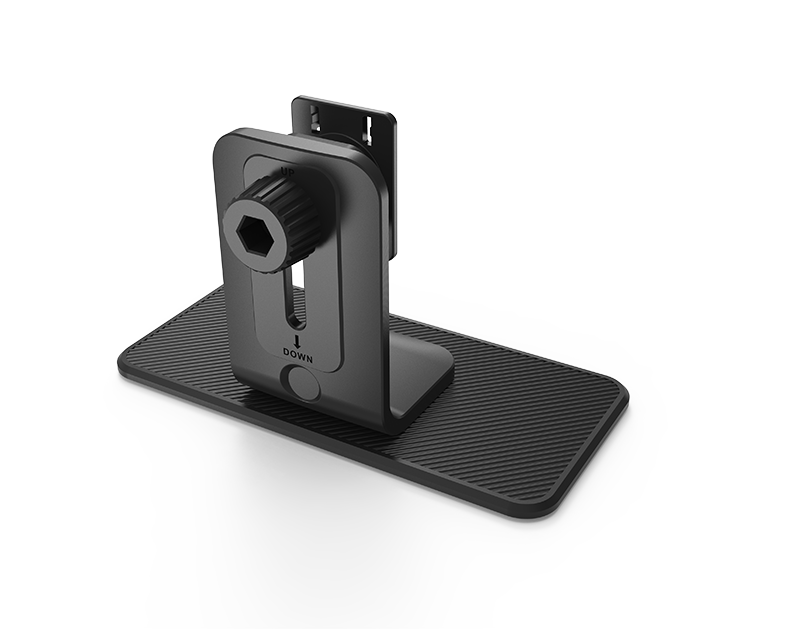

Dashboard mount
User manual

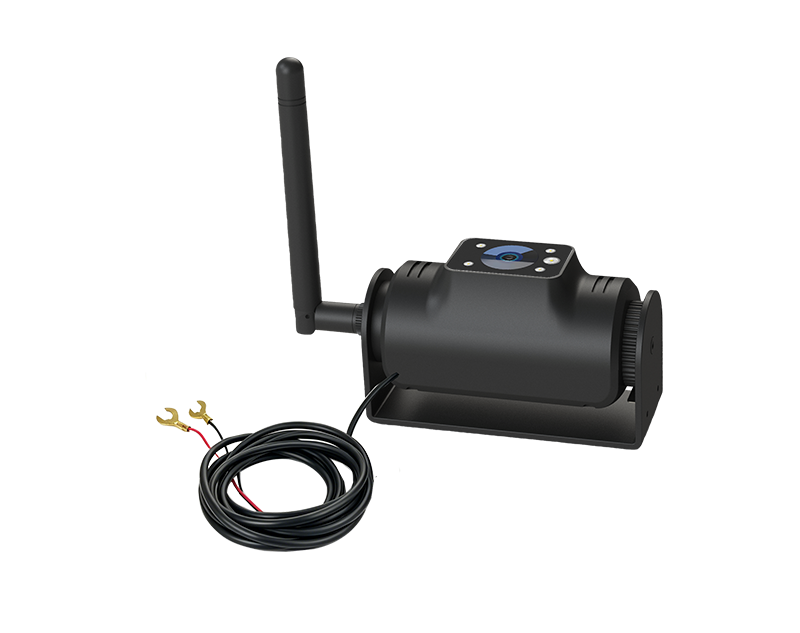

Wireless rear camera
Accessories
AUX cable
Car charger
Dashboard mount
Wireless rear camera
