Design I

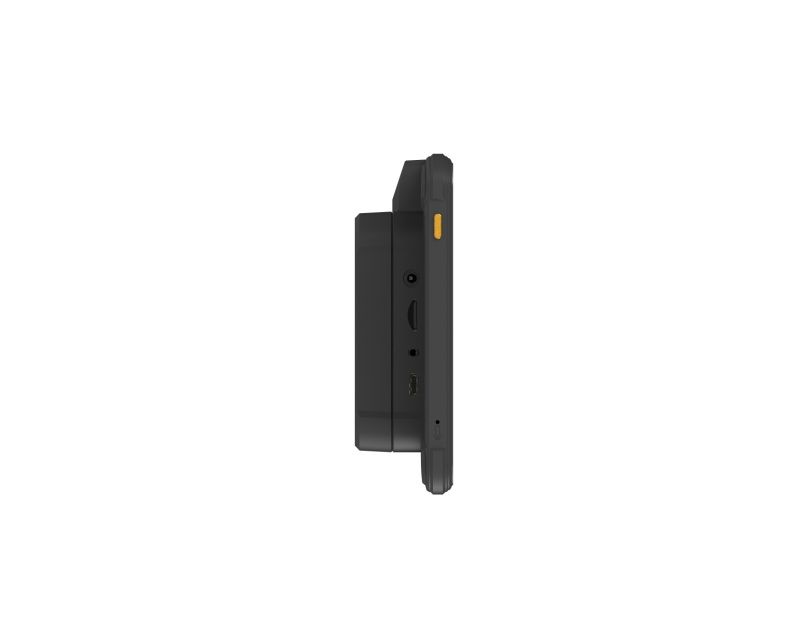

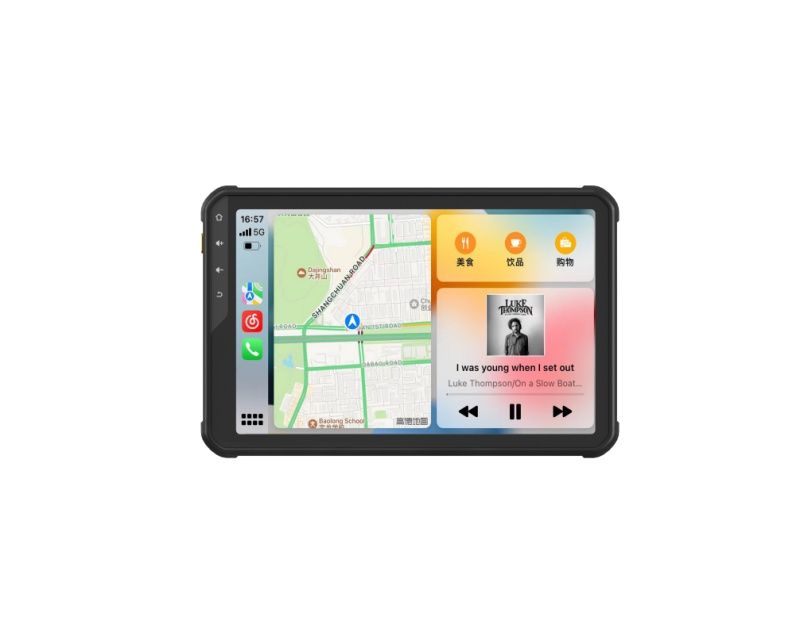

This product is specially designed for off-road, caravan and truck vehicles, boasting an exclusive, private mold design. It comes equipped with an 8-inch IPS high-definition display, the back is equipped with a clip that can accommodate a positioning device. Additionally, it features built-in GPS and supports wireless CarPlay/Android.
USP
-
01
1.Exclusive private mold design, ensuring you get a product that’s uniquely crafted for performance and style.
-
02

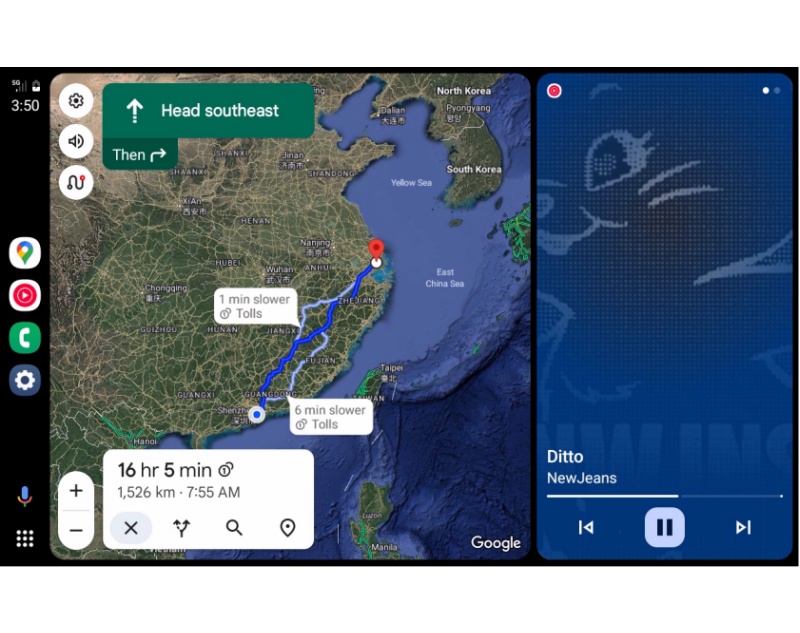

Built-in GPS with support for high-precision positioning and route playback.
-
03

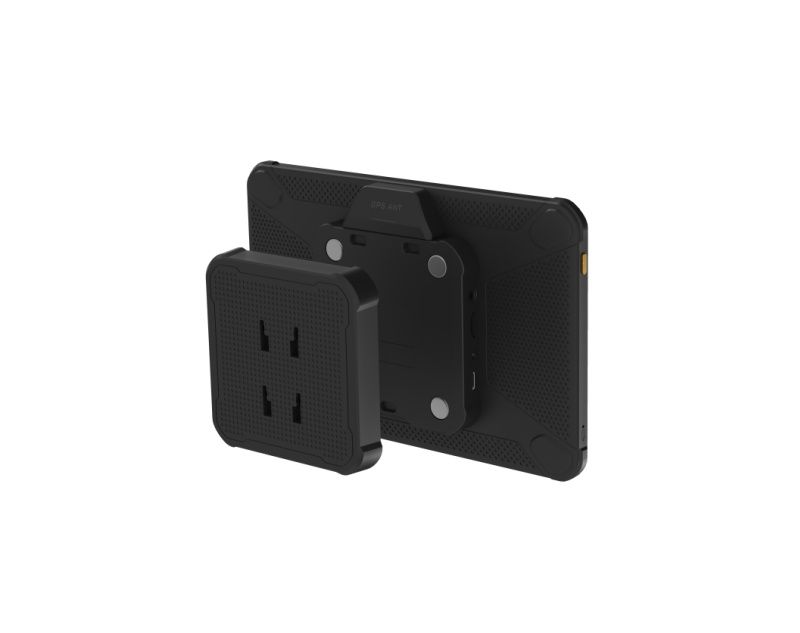

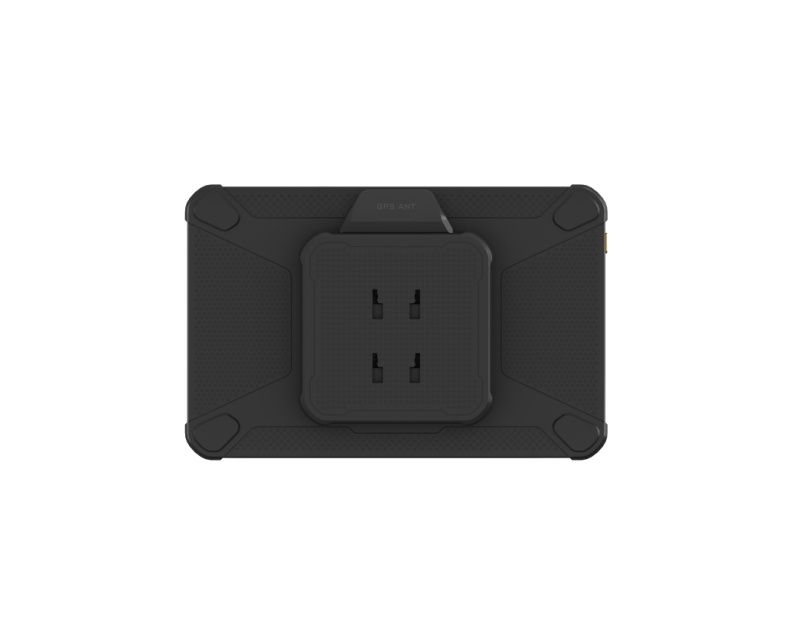

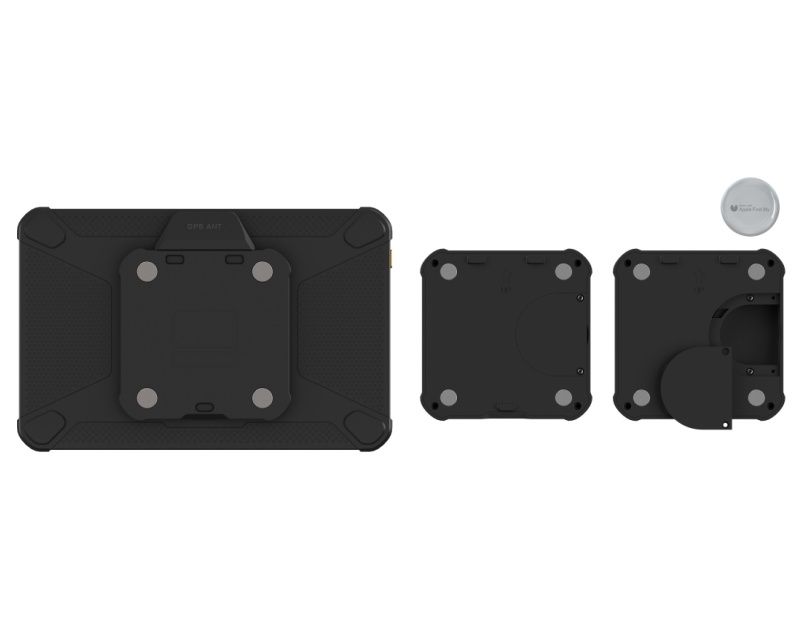

Built-in clip with a dedicated tracker slot ensures you never lose your investment.
-
04
Equipped with a 8-inch Large HD Display, dedicated design for Off-Road, RV,Pick-Up vehicles.

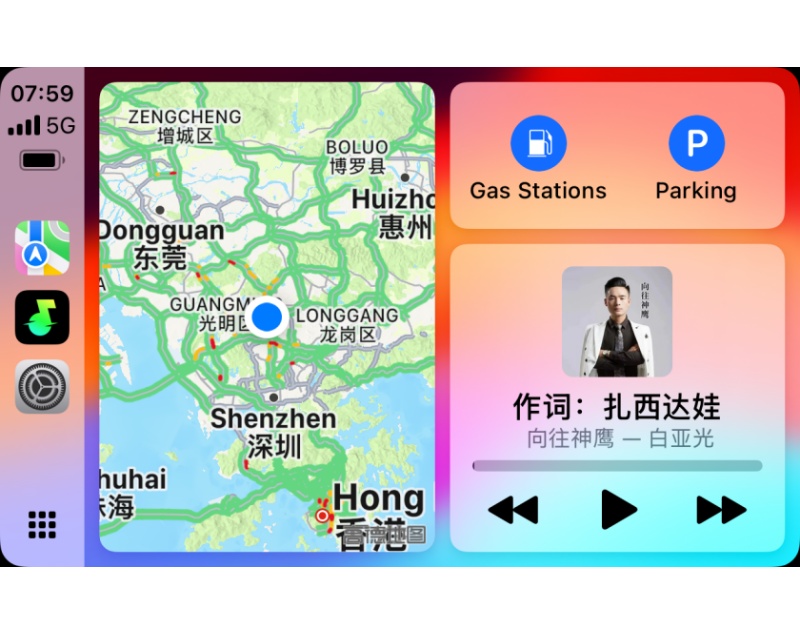

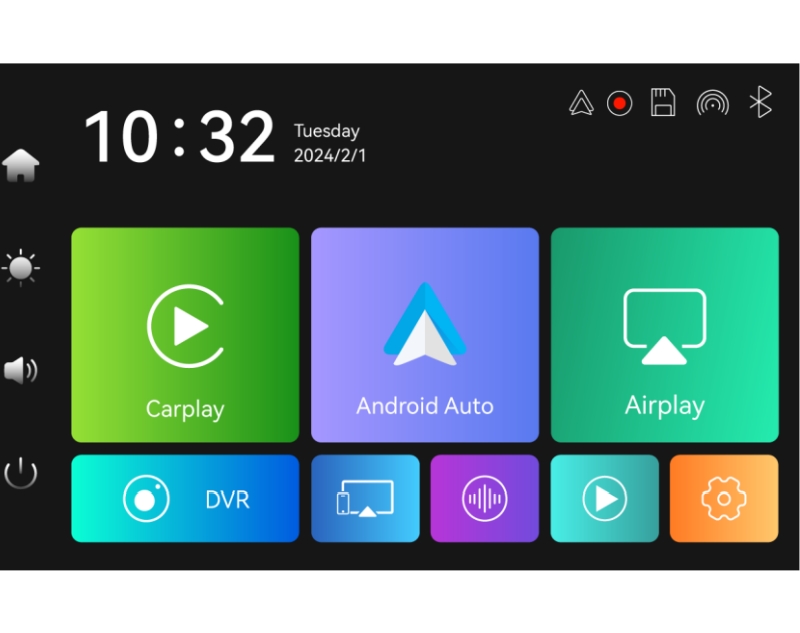

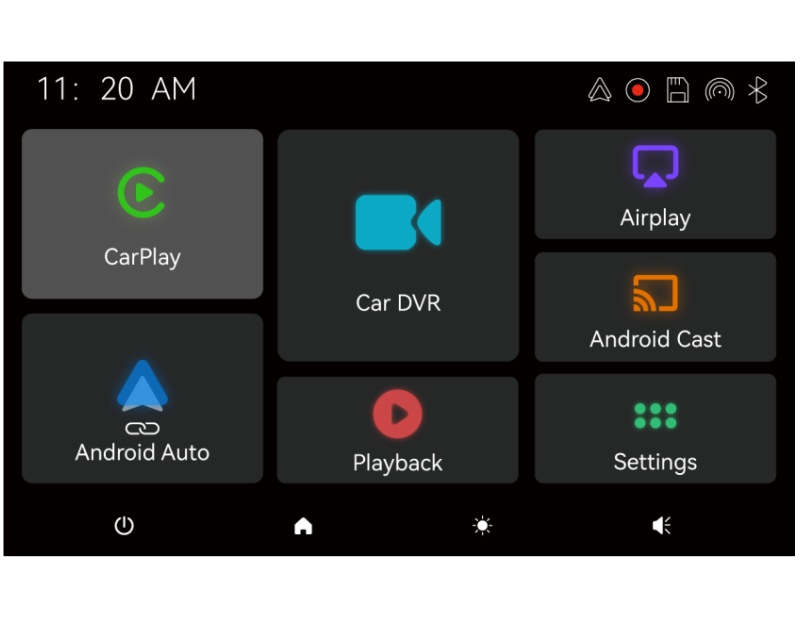

GUI
SPECIFICATION
| 804S Specifications | ||
| General | ||
| Processor: | Dual core A53-1.2Ghz | |
| FLASH： | 128MB | |
| DDR: | 256MB | |
| Display type: | Glass capacitive multi-touch IPS | |
| Display size&resolution: | 8.0inch, 1280*800 | |
| Display brightness: | 495Nit | |
| Battery： | Cell battery（for RTC） | |
| Camera Features | ||
| Front lens | Resolution/FPS | N/A |
| Aperture/construction: | N/A | |
| Rear lens | Resolution/FPS | AHD 1080p/25fps |
| Aperture/construction: | F2.0/2G2P | |
| extention Cable length: | 5.5M | |
| Other features: | Switch to rear view image automatically while reversing, parking assistance line is adjustable | |
| Loop recording | N/A | |
| Parking monitor: | N/A | |
| Wireless connections&sensors | ||
| WiFi: | Support carplay or Android Auto | |
| BT: | 5.0 | |
| FM transmitter: | Yes | |
| GPS: | Yes | |
| G-sensor: | N/A | |
| I/O Ports | ||
| Mic: | Yes-Electret MIC-1.5*4MM, -34DB | |
| Speaker: | 8ohm,2W | |
| Voice command: | Via Siri/Google assistant | |
| AUX socket | Yes, 3.5mm | |
| Camera connector: | 2.5mm socket | |
| Camera connector: | Type C | |
| Micro SD card slot: | Yes, up to 128GB | |
| External GPS antenna socket | N/A | |
| Power input： | Type C | |
| Physical Buttons: | Power, Reset | |
| Advanced features | ||
| Light sensor | N/A | |
| ADAS | N/A | |
| Power consumption: | ||
| Working voltage： | DC5V | |
| Working current： | <1A | |
| Quiescent current： | <10MA | |
| Power supply: | Car charger or hardwire kit(optional) | |
| Software and update | ||
| OS: | LINUX 4.9 | |
| Firmware update: | Through Micro SD card, OTA will be available in future | |
| Environment | ||
| Operating Temp： | （-20℃-70℃） | |
| Storage Temp： | （-20℃-75℃） | |
| Mechanica | ||
| Product dimensions: | ||
| Product weigiht: | ||
| Install method: | Suction mount | |
In The Box
Main device

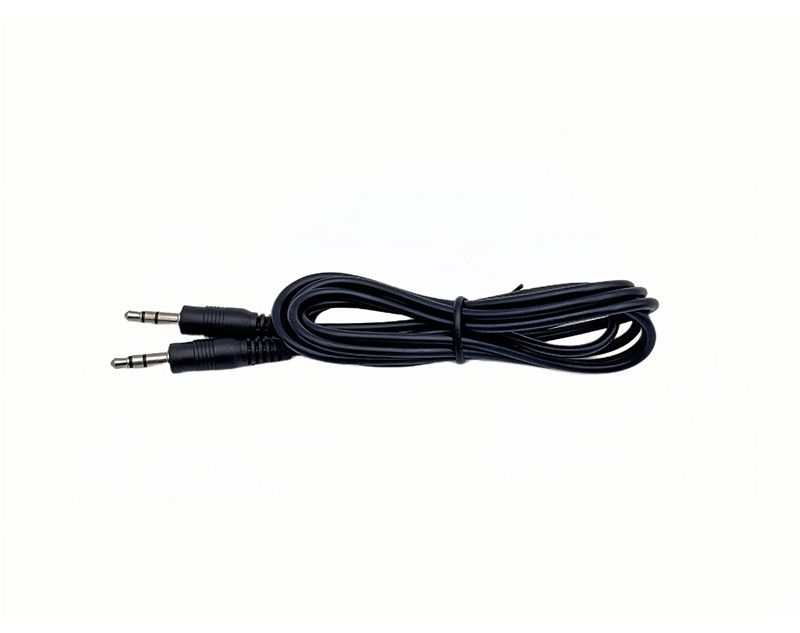

AUX cable

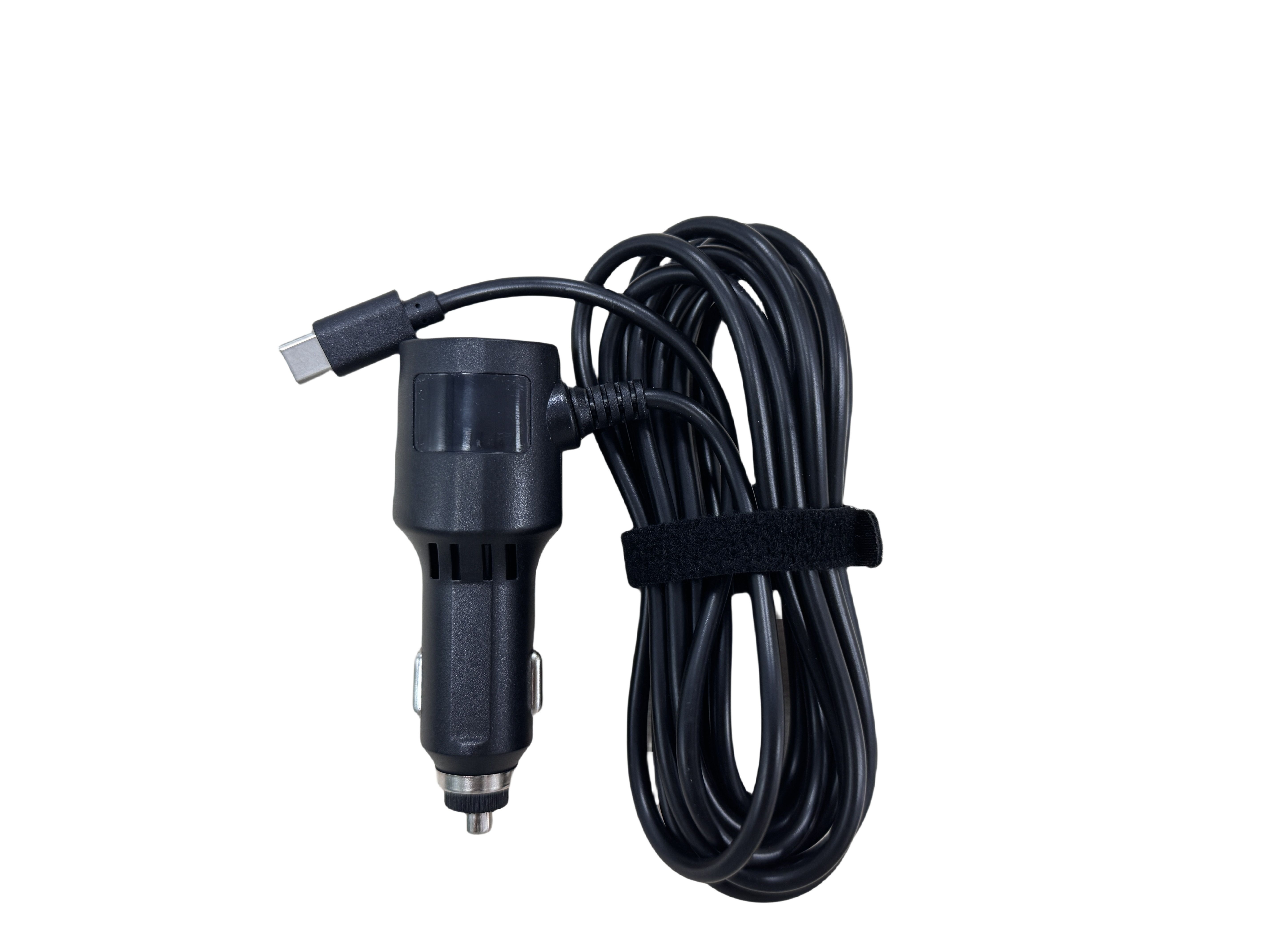

Car Charger

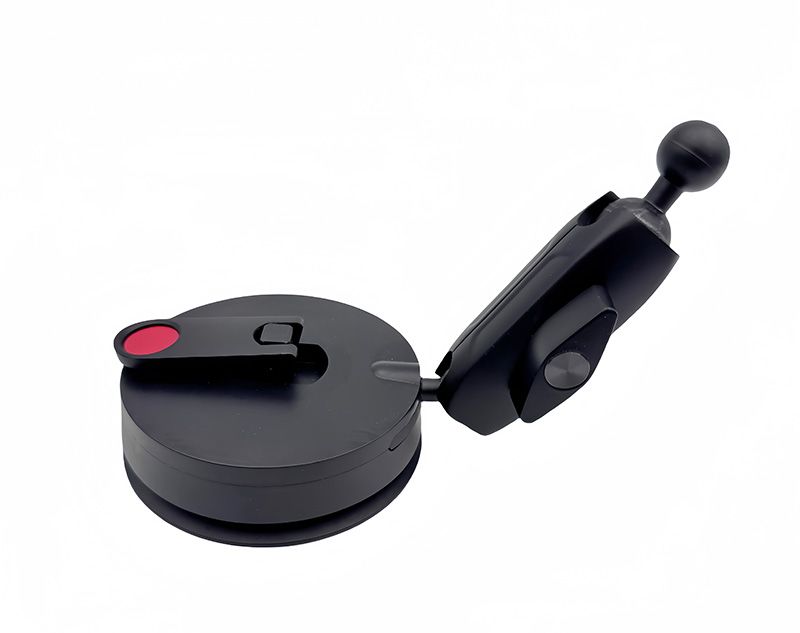

Suction Mount
User Manual
