Design Series A

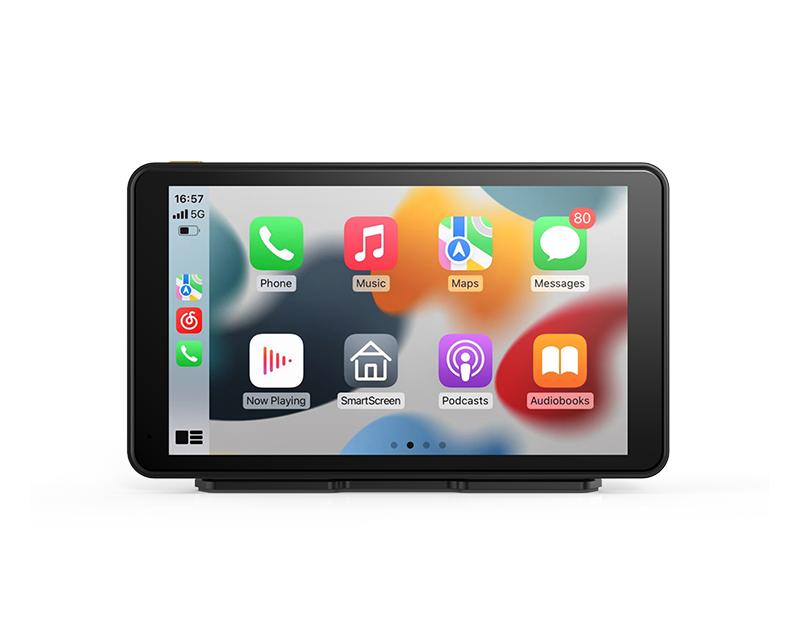

Experience safe and secure driving with our 7'' entry-level model, built-in dash cam, designed to provide you with peace of mind on the road. It fits all Car types. Simply power it via the TYPE-C port using the car charger to upgrade your vehicle with wireless CarPlay.
USP
-
01
Supporting CarPlay and Android Auto.
-
02
Offering seamless Bluetooth integration, allowing you to easily connect your devices without the hassle of cables, enhancing your driving experience.
-
03
Equipping auto dimming, adjust display brightness automatically via inbuild light-sensor to accommodate ambient light naturally.
-
04
Featuring an optional rear cam and alternative installation ways.

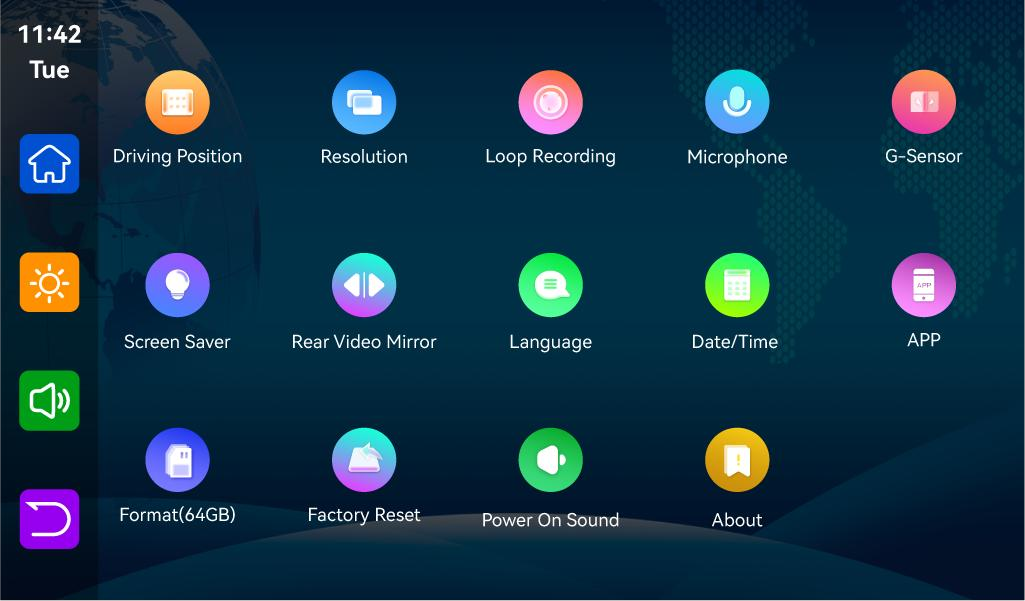

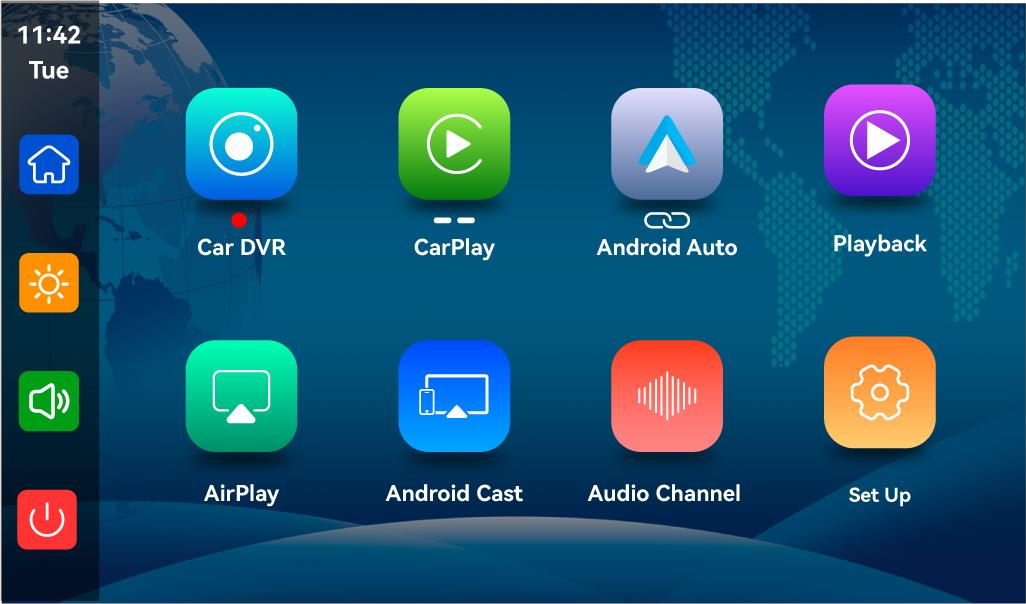

709 GUI

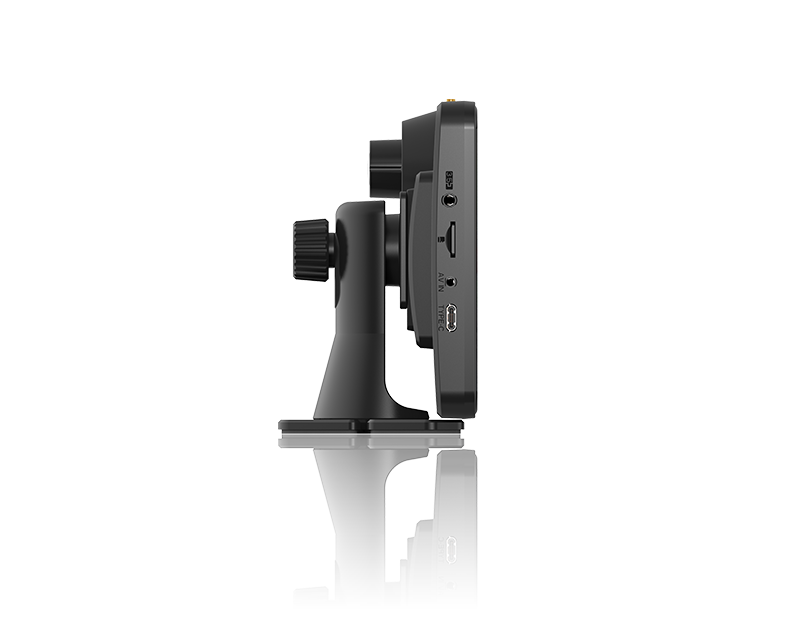

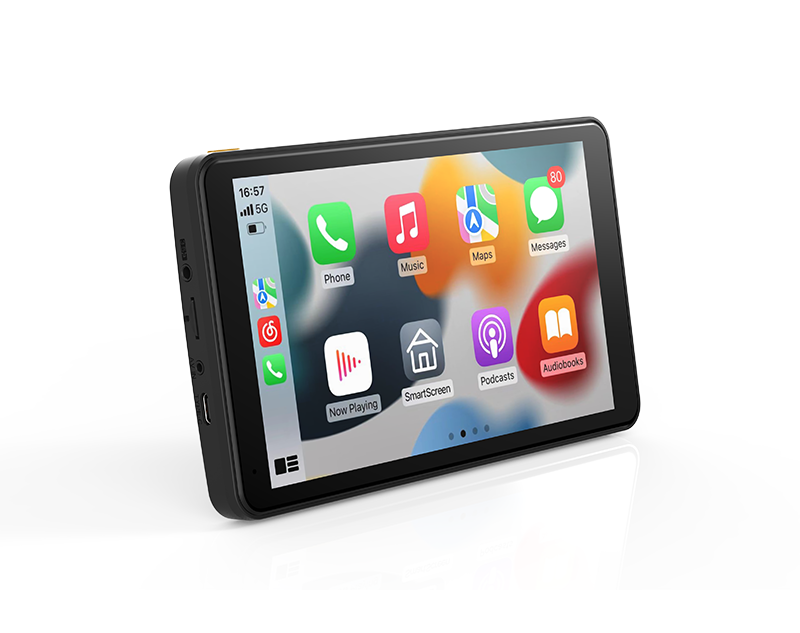

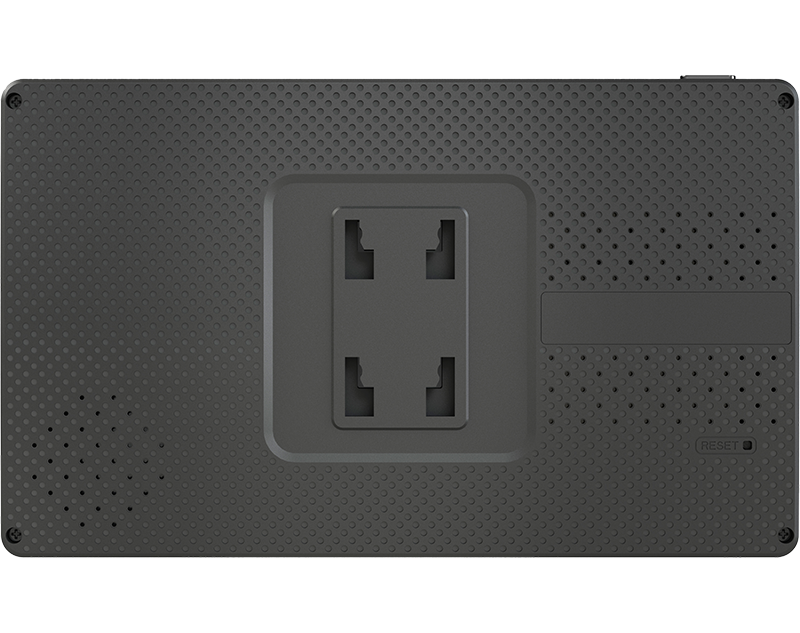

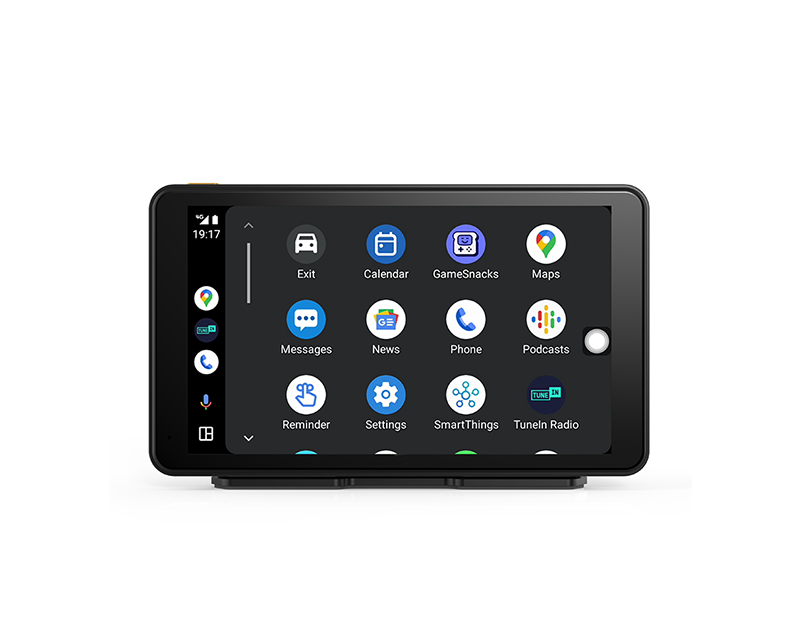

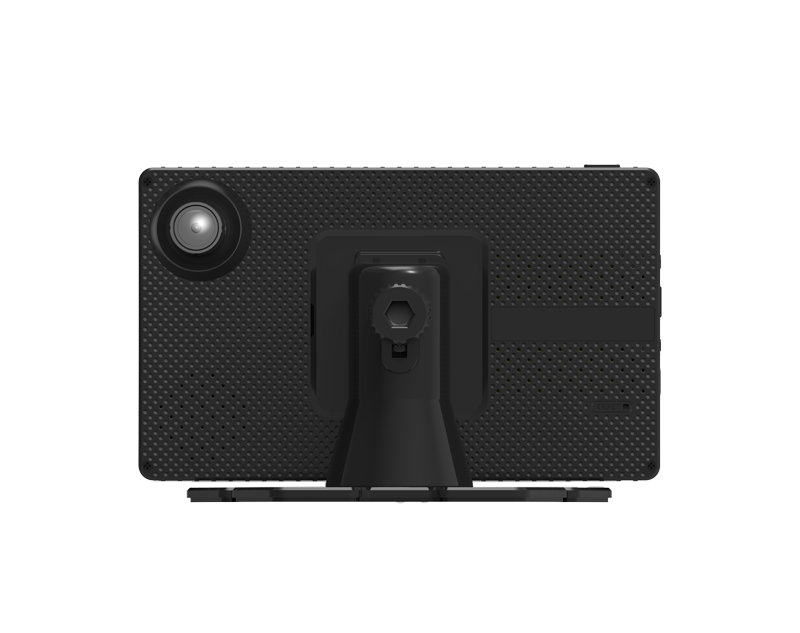

PRODUCT PHOTOS
SPECIFICATION
| 709 Specifications | ||
| General | ||
| Processor: | All Winner V553 | |
| FLASH： | 128MB | |
| DDR: | 256MB | |
| Display type: | Glass capacitive multi-touch IPS | |
| Display size&resolution: | 7.0inch, 1024*600 | |
| Display brightness: | 400Nits | |
| Battery： | Cell battery（for RTC） | |
| Camera Features | ||
| Front lens | Resolution/FPS | Onboard type, 1080p/30fps |
| Aperture/construction: | F2.0/2G2P | |
| Rear lens | Resolution/FPS | AHD 1080p/30fps |
| Aperture/construction: | F2.0/2G4P | |
| extention Cable length: | 7.5M | |
| Other features: | Switch to rear view image automatically while reversing, parking assistance line is adjustable | |
| Loop recording | yes, 1min/3min/5min | |
| Parking monitor: | Optional (has to be used together with 3 wires hardwire kit) | |
| Wireless connections & sensors | ||
| WiFi: | Support carplay or Android Auto | |
| BT: | 4.2 | |
| FM transmitter: | Yes | |
| GPS: | No | |
| G-sensor: | Yes | |
| I/O Ports | ||
| Mic: | Yes-Electret MIC-1.5*4MM, -34DB | |
| Speaker: | 8ohm,2W | |
| Voice command: | Via Siri/Google assistant | |
| AUX socket | Yes, 3.5mm | |
| Rear Camera connector: | 2.5mm socket | |
| Micro SD card slot: | Yes, up to 256GB | |
| External GPS antenna socket | N/A | |
| Power input： | Type C | |
| Physical Buttons: | Power, Reset | |
| Advanced features | ||
| Light sensor | N/A | |
| ADAS | N/A | |
| Power consumption: | ||
| Working voltage： | DC5V | |
| Working current： | <1A | |
| Quiescent current： | <10MA | |
| Power supply: | Car charger or hardwire kit(optional) | |
| Software and update | ||
| OS: | LINUX 4.9 | |
| Firmware update: | Through Micro SD card, OTA will be available in future | |
| Environment | ||
| Operating Temp： | （-10℃-70℃） | |
| Storage Temp： | （-20℃-80℃） | |
| Mechanical | ||
| Product dimensions: | 178.5*107.5*38mm | |
| Product weigiht: | 304g | |
| Install method: | magnetic mount,Suction cup mount, 3M adhesive dashboard mount | |
In The Box
Main device
AUX cable

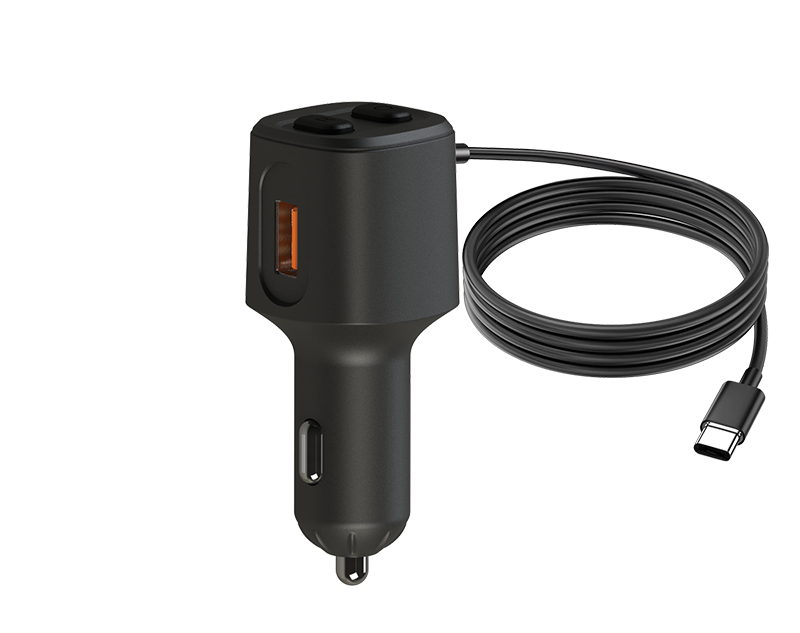

Car Charger
Dashboard Mount
User Manual
Accessories
AUX cablee
Dashboard Mount
Car Charger

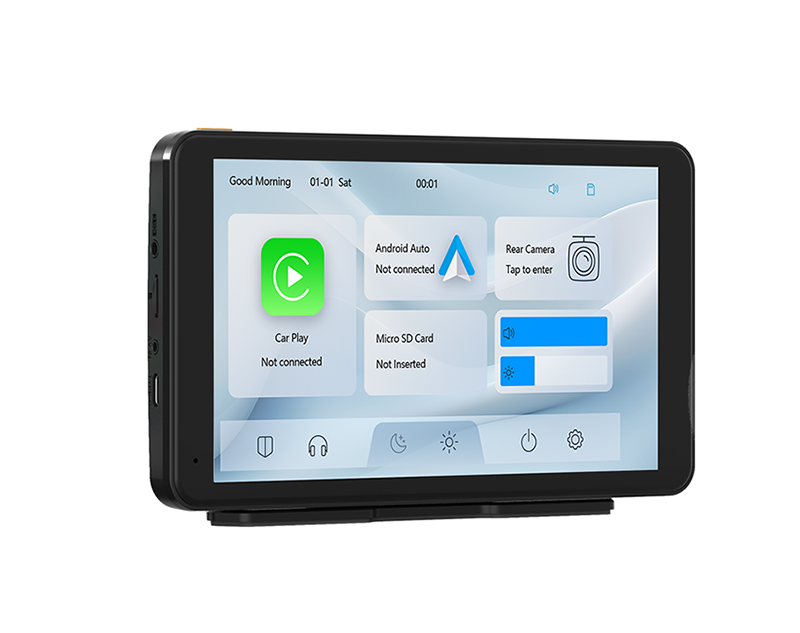

Related Products
