Design Series A
Experience safe and secure driving with our 7'' entry-level model, designed to provide you with peace of mind on the road. With 7'' IPS touch screen display. its fits all Car types. Simply power it via the TYPE-C port using the car charger to upgrade your vehicle with wireless CarPlay.
USP
-
01
Supporting CarPlay and Android Auto.
-
02
Offering seamless Bluetooth integration, allowing you to easily connect your devices without the hassle of cables, enhancing your driving experience
-
03
Equipping auto dimming, adjust display brightness automatically via in-build light-sensor to accommodate ambient light naturally.
-
04
Featuring an optional rear cam and alternative installation ways.

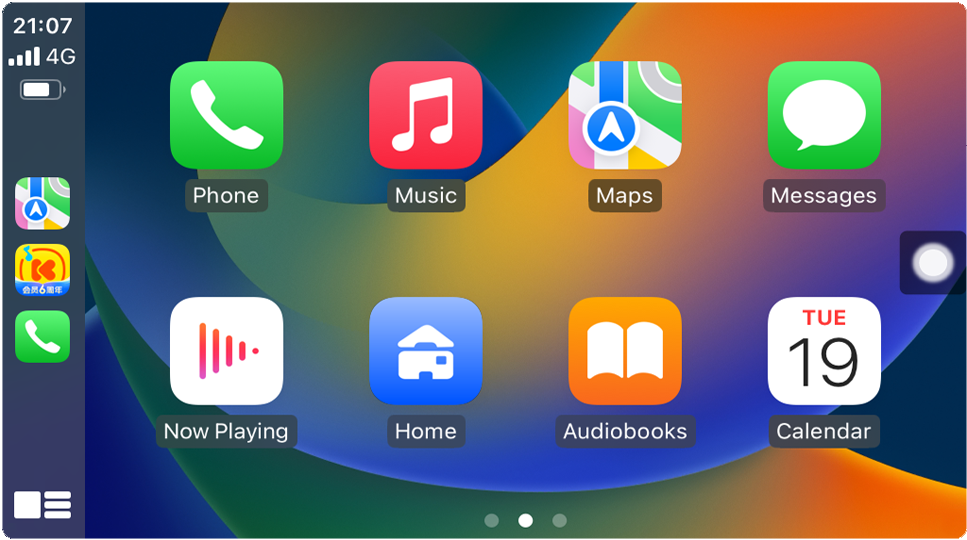

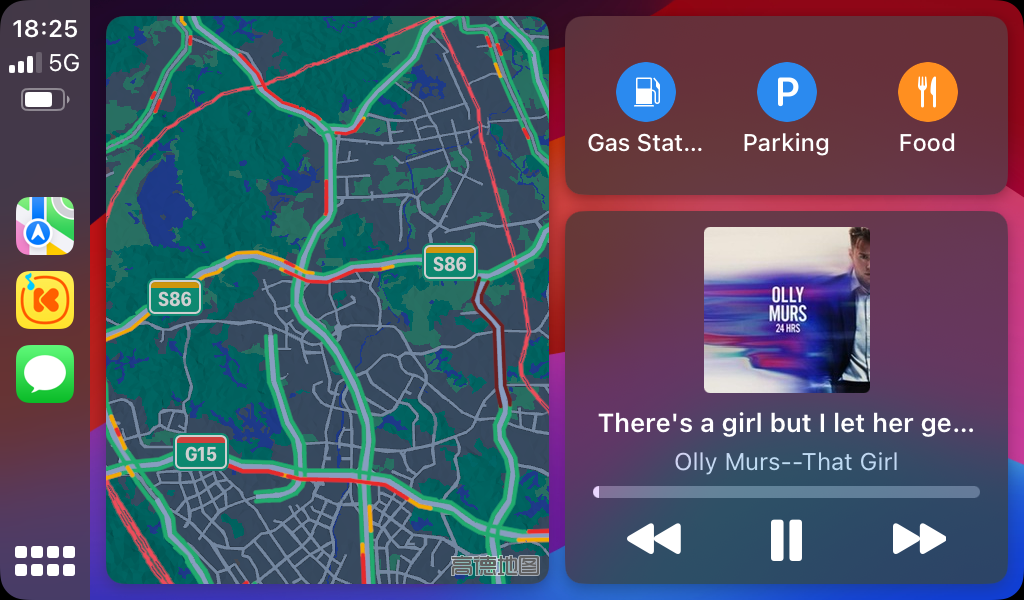

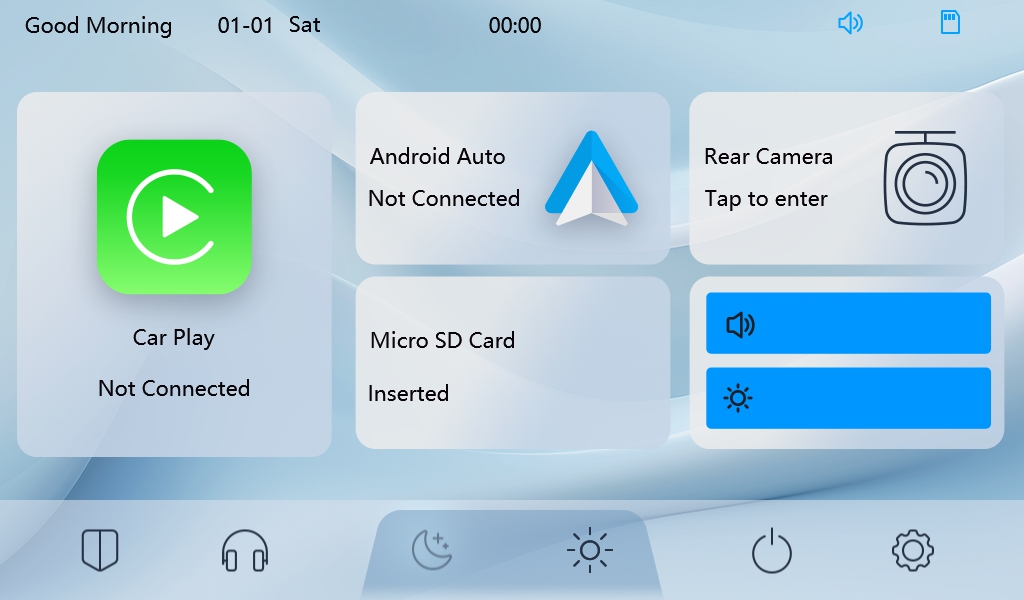

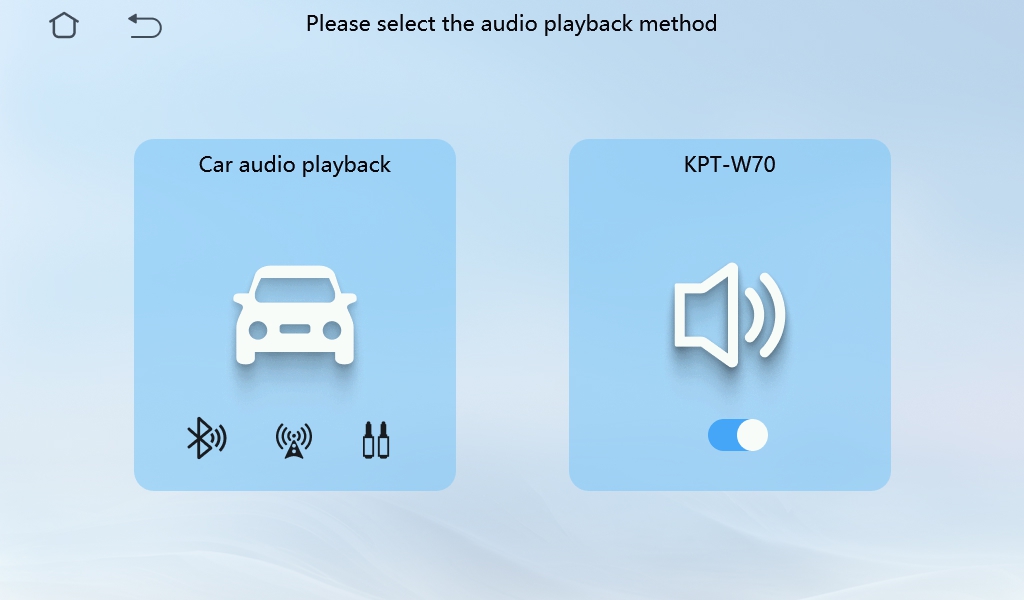

709A GUI

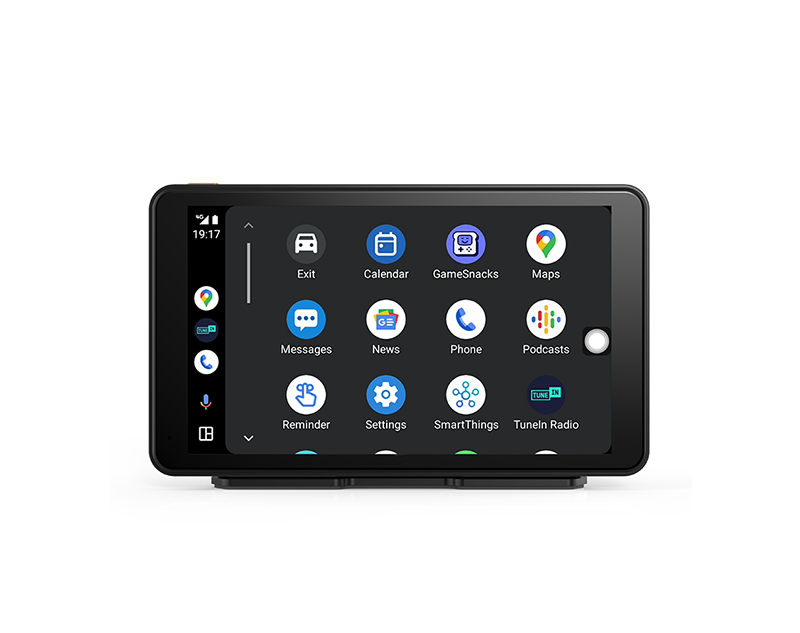

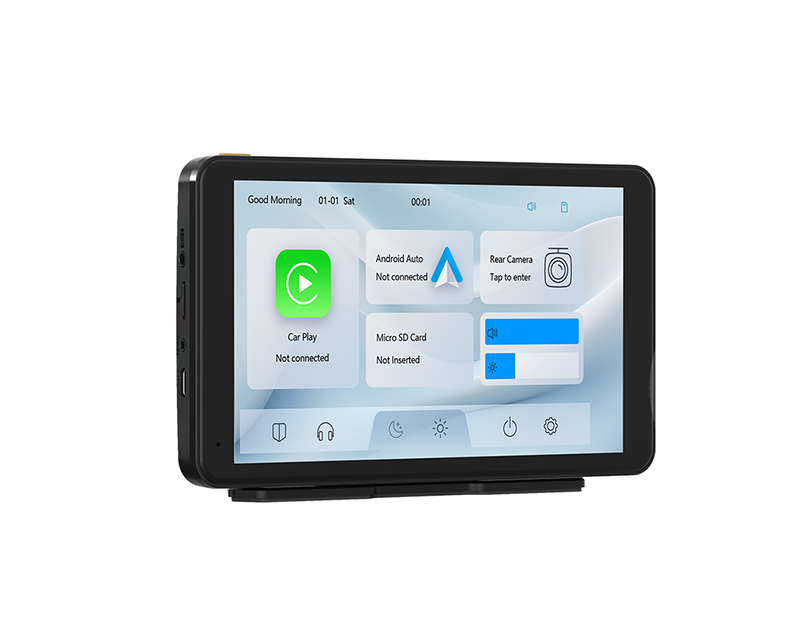

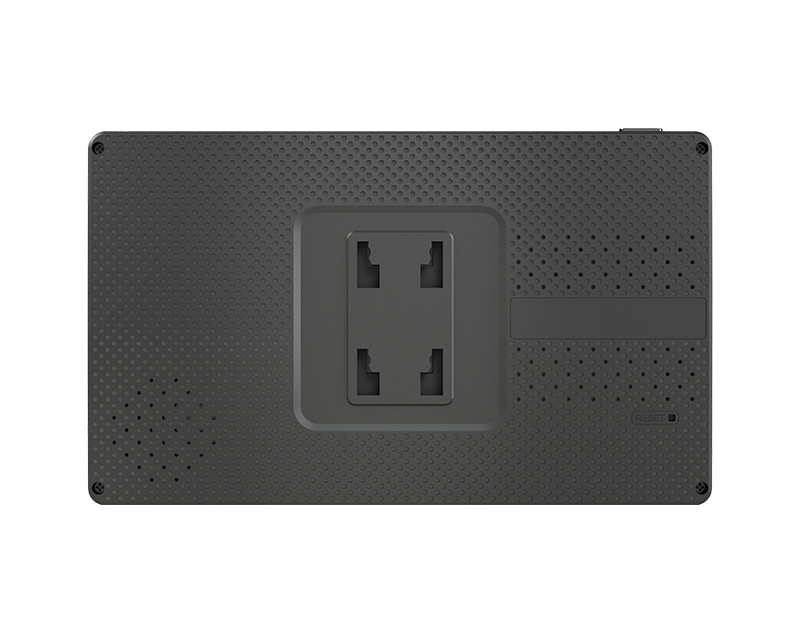

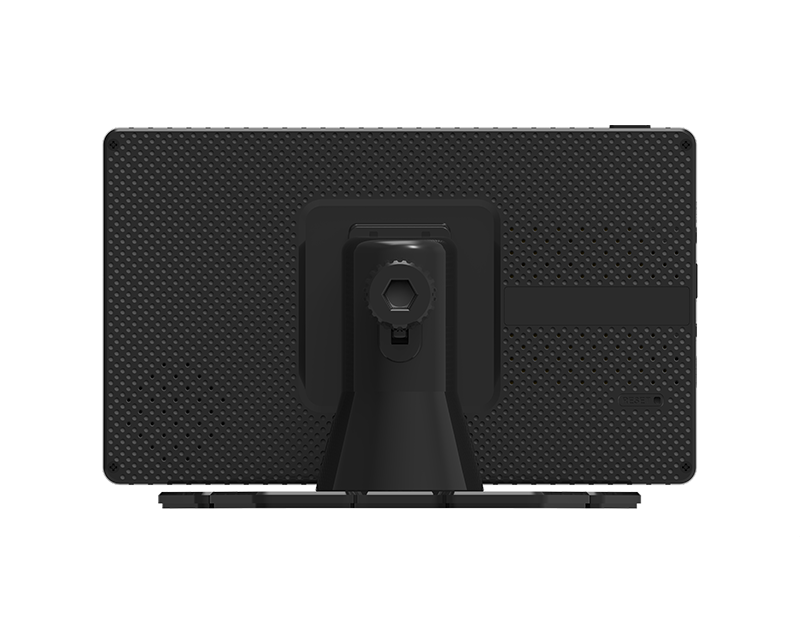

PRODUCT PHOTOS
SPECIFICATION
| 709A Specifications | ||
| General | ||
| Processor: | AW V23，RISC-V Single-core 800MHz | |
| Storage： | 128MB | |
| Memory: | DDR3 1Gb | |
| Display Type: | Glass capacitive multi-touch IPS | |
| Display Size&Resolution: | 7.0inch, 1024*600 | |
| Display Brightness: | 495Nit | |
| Battery： | NO | |
| Wireless Connections&Sensors | ||
| WiFi: | Dual-band （2.4 GHz & 5.0 GHz） | |
| BT: | 5.4 | |
| FM Transmitter: | Yes | |
| GNSS: | N/A | |
| G-sensor: | N/A | |
| Physical Interface | ||
| Mic: | Yes-Electret MIC-1.5*4MM, -34DB | |
| Speaker: | 8ohm,2W | |
| Voice Command: | Via Siri/Google assistant | |
| AUX Socket: | Yes, 3.5mm | |
| Rear Camera Connector: | 2.5mm socket | |
| Micro SD card slot: | Yes, up to 128GB | |
| Power Input： | Type C | |
| Light sensor: | N/A | |
| Camera Features | ||
| Front Cam | Resolution/FPS: | N/A |
| Aperture/construction: | N/A | |
| Rear Cam | Resolution/FPS: | AHD 1080p/25fps |
| Aperture/construction: | F2.0/2G2P | |
| Extention Cable length: | 5.5M | |
| Other features: | Switch to rear view image automatically while reversing | |
| Wireless Rear Cam: | N/A | |
| Loop recording: | N/A | |
| Parking monitor: | N/A | |
| Buttons | ||
| Physical Buttons: | Power, Reset | |
| Touch Key: | N/A | |
| Power Consumption | ||
| Working voltage： | DC5V | |
| Working current： | <2A（typical） | |
| Quiescent current： | <10MA | |
| Power supply: | Car charger or hardwire kit(optional) | |
| Software And Update | ||
| OS: | Linux | |
| Firmware update: | Through Micro SD card | |
| Environment | ||
| Operating Temp： | （-10℃-70℃） | |
| Storage Temp： | （-20℃-75℃） | |
| Mechanical | ||
| Product dimensions: | 178.51*107.35*14.6mm | |
| Product weigiht: | 270g | |
| Install method: | Suction mount, dashboard mount, airvent mount | |
In The Box
Main device
AUX cable
Car Charger
Dashboard Mount
User Manual
Accessories

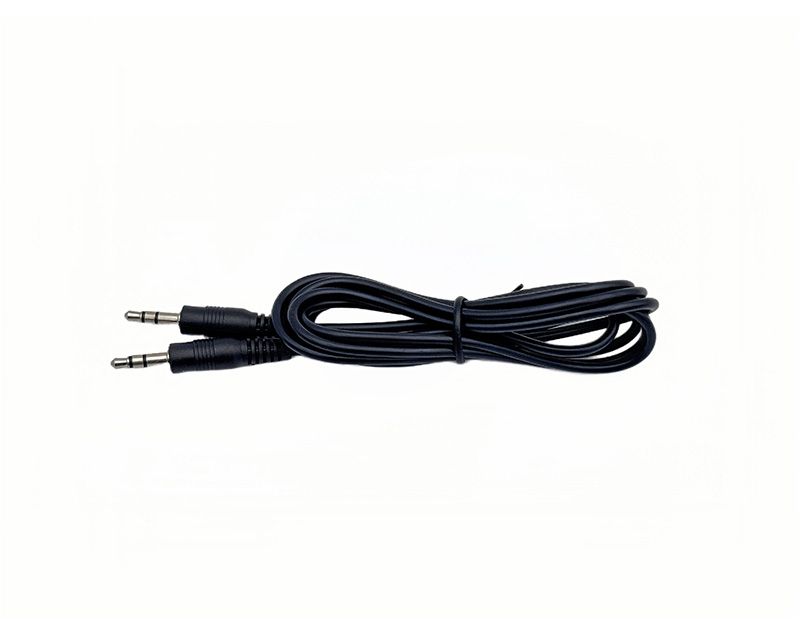

AUX cablee

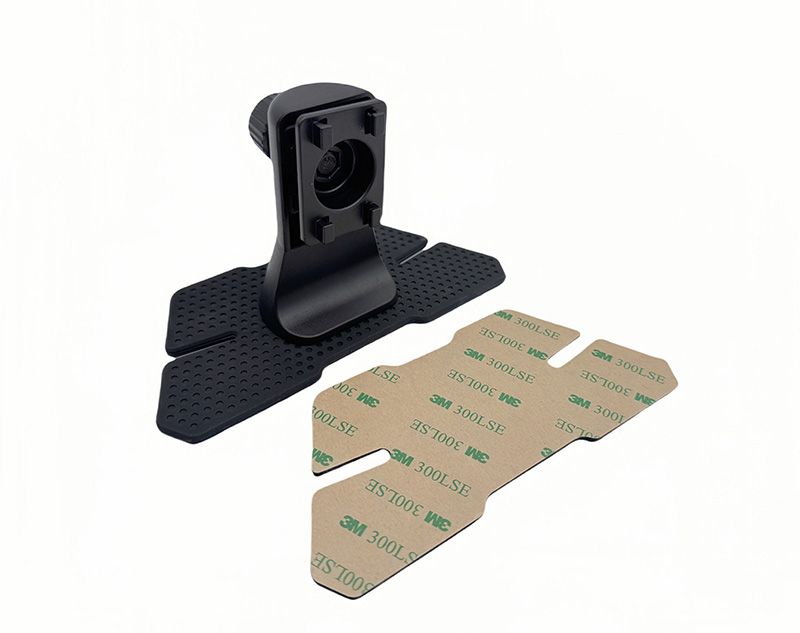

Dashboard Mount

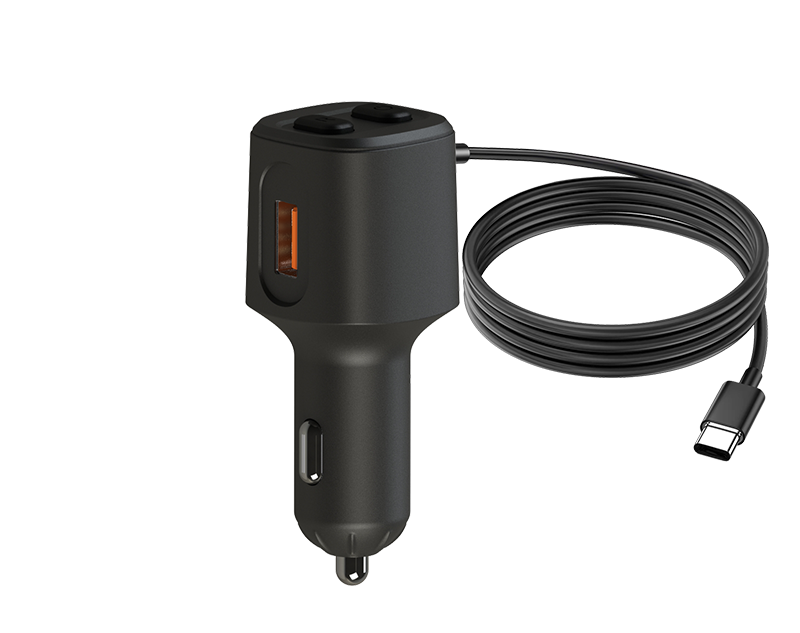

Car Charger
Related Products

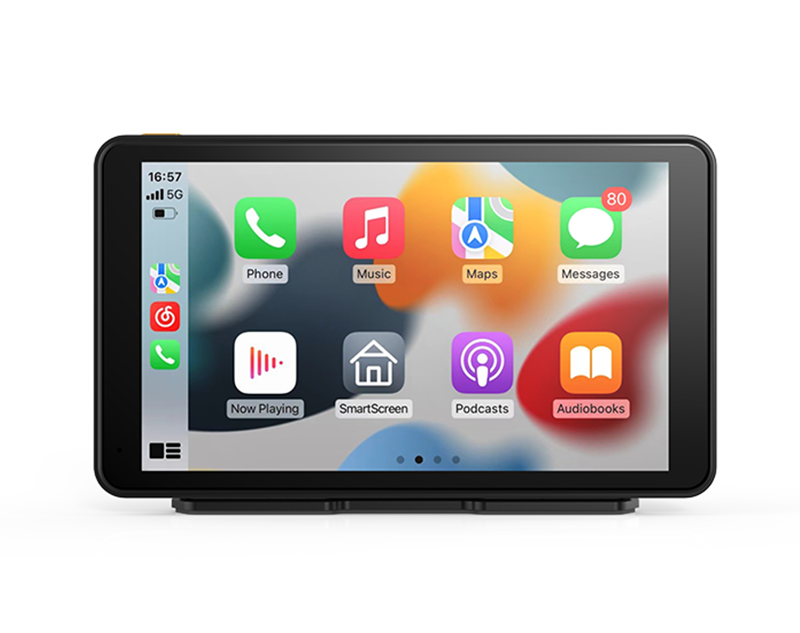

Experience safe and secure driving with our 7'' entry-level model, built-in dash cam, designed to provide you with peace of mind on the road. It fits all Car types. Simply power it via the TYPE-C port using the car charger to upgrade your vehicle with wireless CarPlay.
