Design Series F
With an 8-inch IPS high-definition display and built-in dash cam, offering a vibrant and crisp visual experience, it features built-in GPS and supports wireless CarPlay/Android Auto
USP
-
01
Exclusive private mold design, ensuring you get a product that's uniquely crafted for performance and style.
-
02
Built-in GPS with support for high-precision positioning and route playback.
-
03
Equipped with a 8-inch Large HD Display, dedicated design for Off-Road, RV,Pick-Up vehicle.
-
04
Featuring unique suction mount. Vibration-proof design ensures a secure fit even on bumpy roads, with 360° angle adjustment.

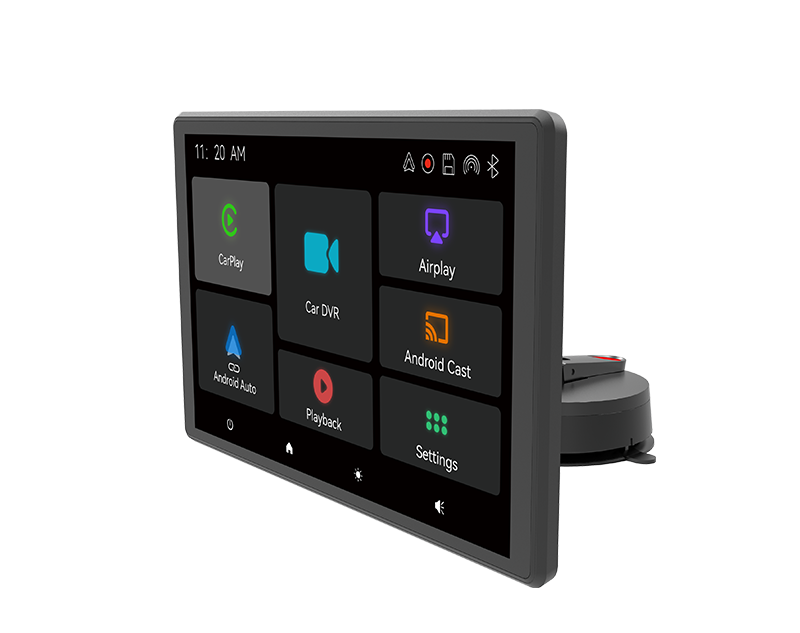

803 GUI

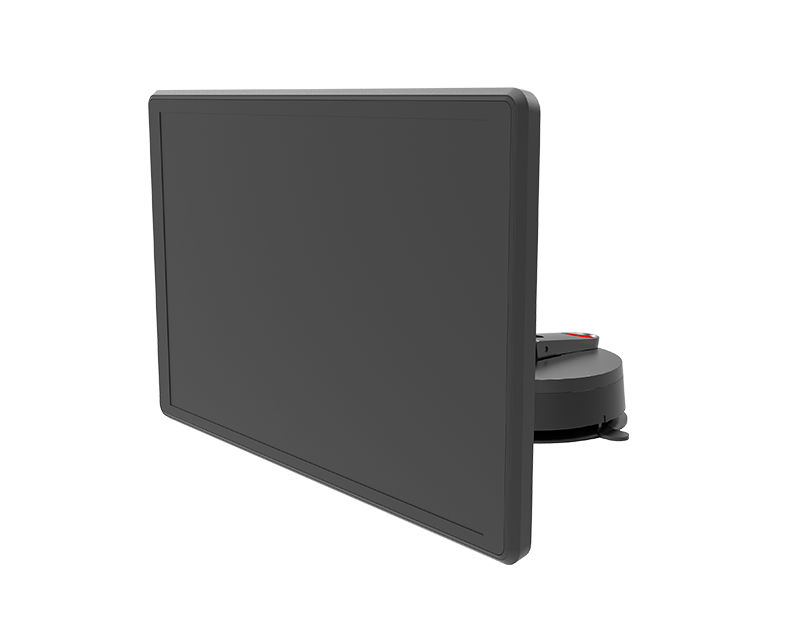

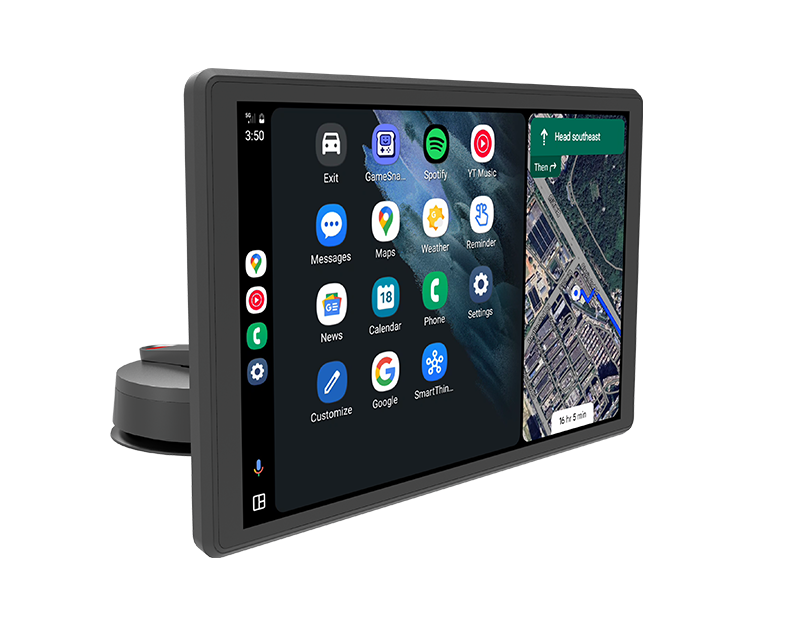

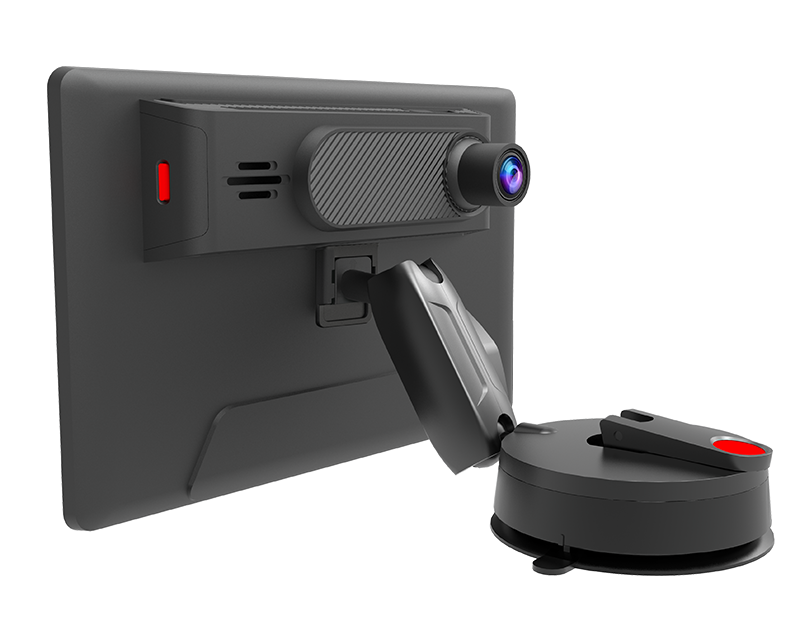

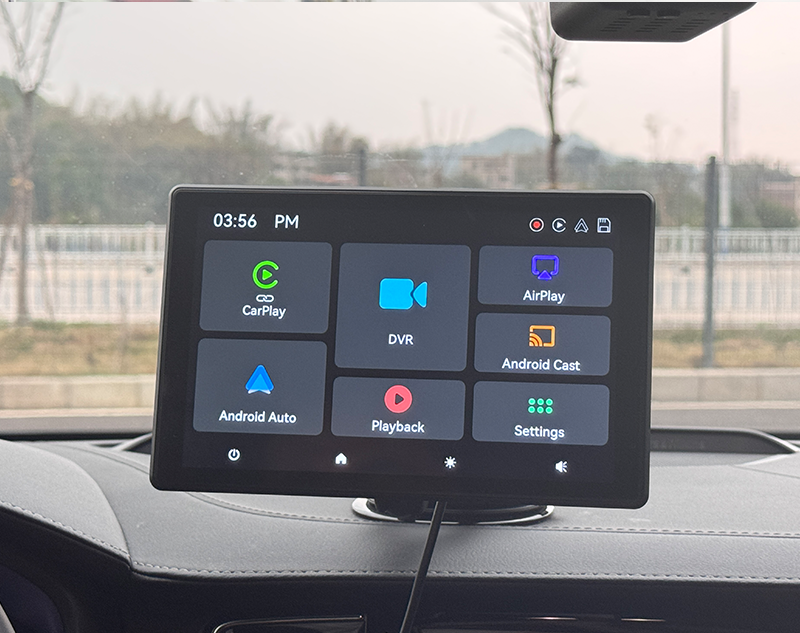

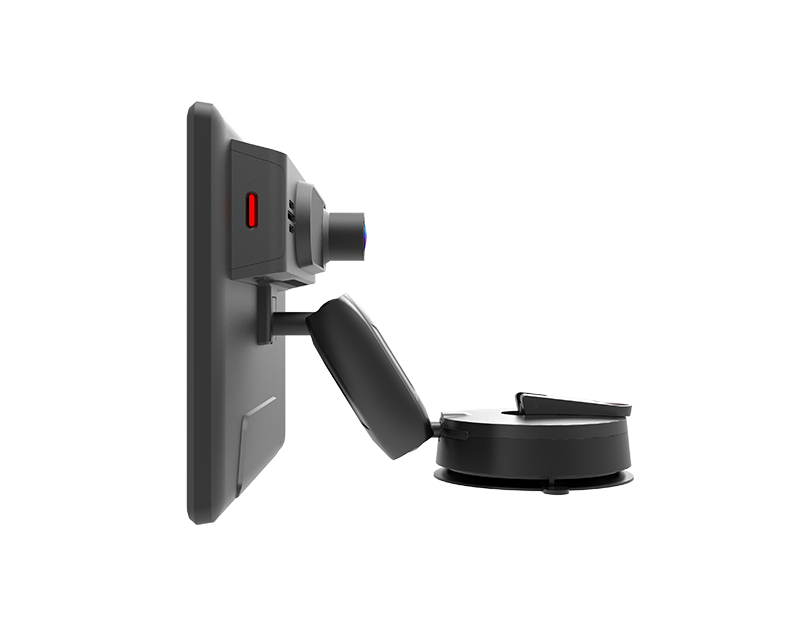

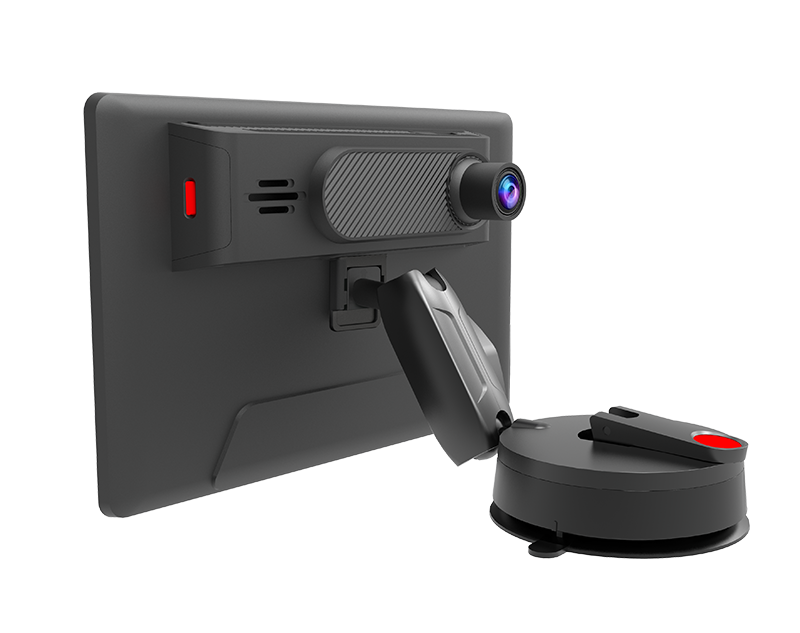

PRODUCT PHOTOS
SPECIFICATION
| 803 Specifications | ||
| General | ||
| Processor: | Dual-core A53 1.2Ghz Sigmastar SSC8836Q | |
| FLASH： | 128MB | |
| DDR: | 256MB | |
| Display type: | Glass capacitive multi-touch IPS | |
| Display size&resolution: | 8.0inch, 1280*800 | |
| Display brightness: | 495Nit | |
| Battery： | Cell battery（for RTC） | |
| Camera Features | ||
| Front lens | Resolution/FPS | Onboard type, 1080p/25fps |
| Aperture/construction: | F2.0/2G2P | |
| Rear lens | Resolution/FPS | AHD 1080p/25fps |
| Aperture/construction: | F2.0/2G2P | |
| extention Cable length: | 5.5M | |
| Other features: | Switch to rear view image automatically while reversing, parking assistance line is adjustable | |
| Loop recording | yes, 1min/3min/5min | |
| Parking monitor: | Optional (has to be used together with 3 wires hardwire kit) | |
| Wireless connections&sensors | ||
| WiFi: | Support carplay or Android Auto | |
| BT: | 4.2 | |
| FM transmitter: | Yes | |
| GPS: | Yes, built-iin （Optional) | |
| G-sensor: | Yes | |
| I/O Ports | ||
| Mic: | Yes-Electret MIC-1.5*4MM, -34DB | |
| Speaker: | 8ohm,2W | |
| Voice command: | Via Siri/Google assistant | |
| AUX socket | Yes, 3.5mm | |
| Rear Camera connector: | 2.5mm socket | |
| Micro SD card slot: | Yes, up to 128GB | |
| External GPS antenna socket | N/A | |
| Power input： | Type C | |
| Physical Buttons: | Power, Reset | |
| Advanced features | ||
| Light sensor | Through front camera lens | |
| ADAS | Optional | |
| Power consumption: | ||
| Working voltage： | DC5V | |
| Working current： | <1A | |
| Quiescent current： | <10MA | |
| Power supply: | Car charger or hardwire kit(optional) | |
| Software and update | ||
| OS: | LINUX 4.9 | |
| Firmware update: | Through Micro SD card, OTA will be available in future | |
| Environment | ||
| Operating Temp： | （-20℃-70℃） | |
| Storage Temp： | （-20℃-75℃） | |
| Mechanical | ||
| Product dimensions: | 19.5*12.43*4.74cm | |
| Product weigiht: | 363g | |
| Install method: | Suction mount | |
In The Box
Main device
AUX cable

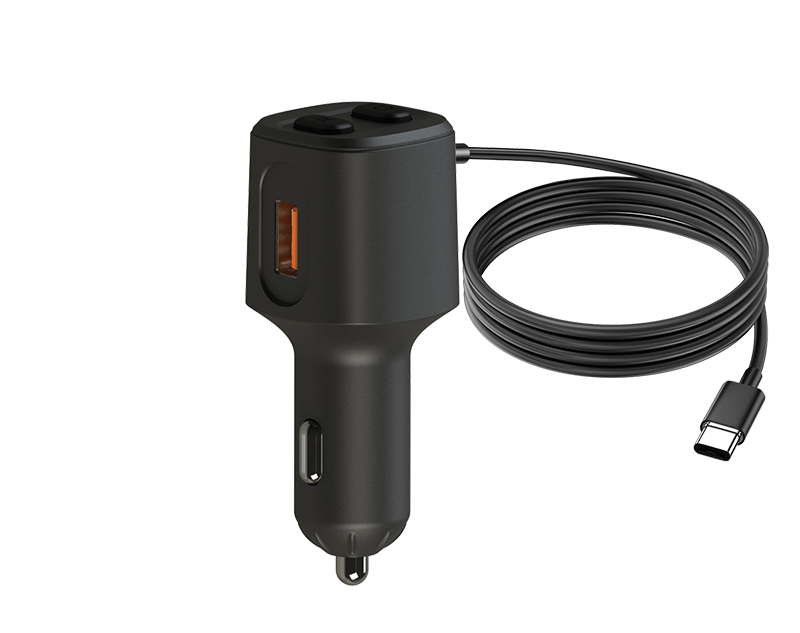

Car Charger
Suction Mount
User Manual
Accessories
AUX cable
Suction Mount
Car Charger
Related Products
With an 8-inch IPS high-definition display, offering a vibrant and crisp visual experience , also it features built-in GPS and supports wireless CarPlay/Android Auto

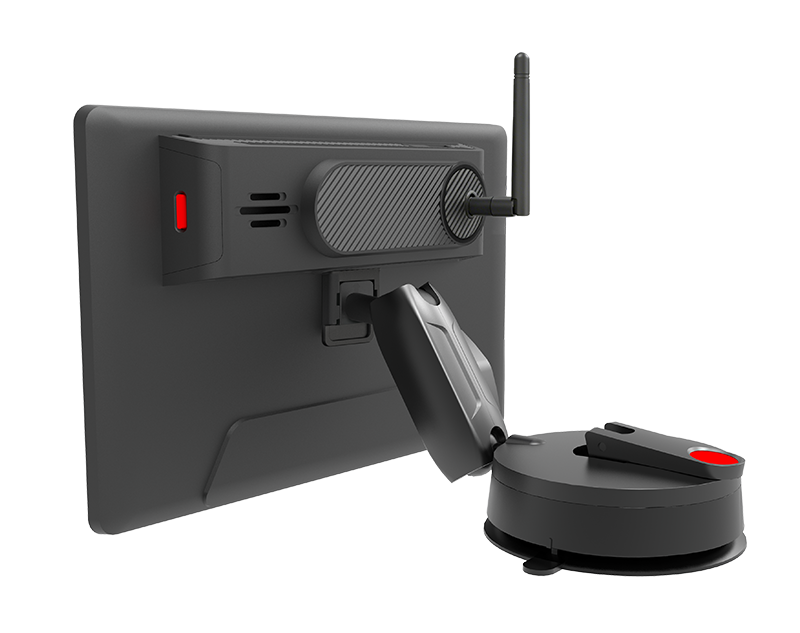

803W features an exclusive custom design for off-road vehicles, 4x4 trucks and camping pickups. It is equipped with an 8-inch IPS high-definition screen, supports wireless CarPlay and Android Auto, and is compatible with both external cameras and wireless cameras.
