DESIGN F

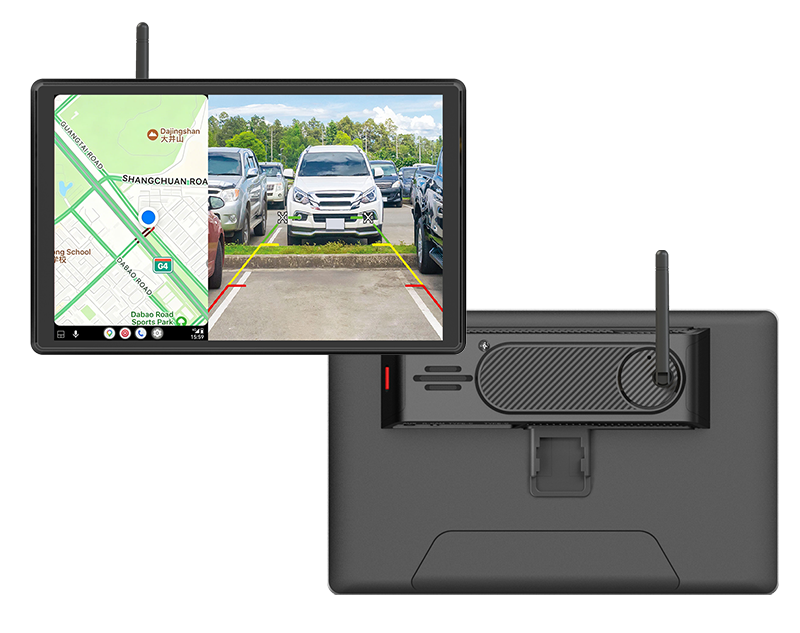

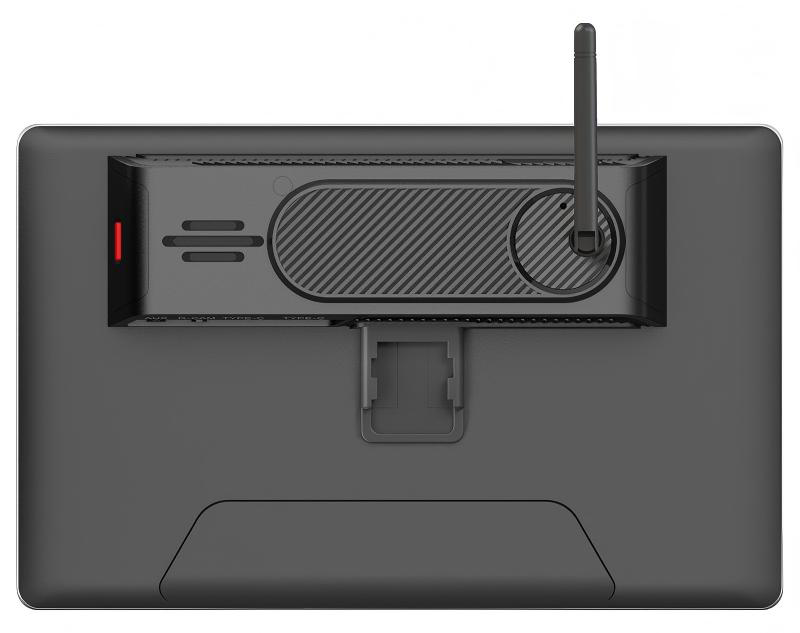

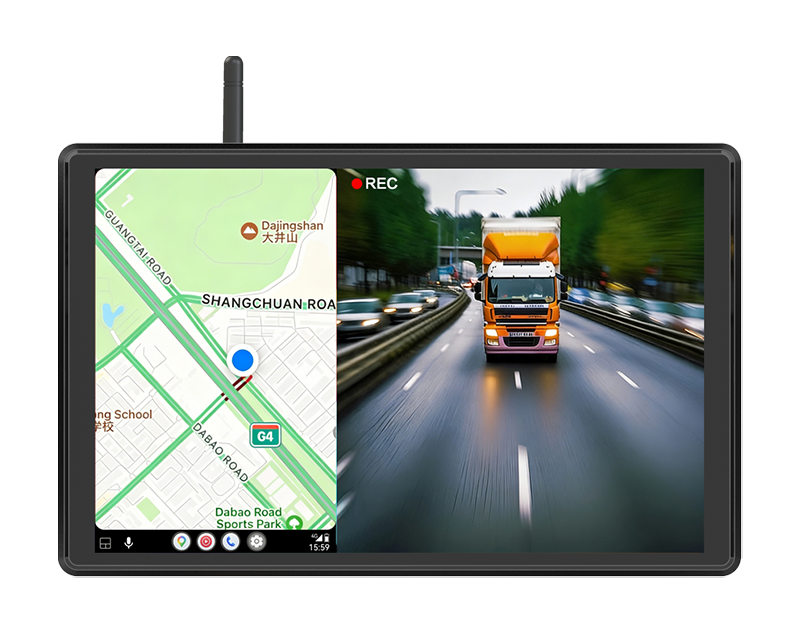

CarPlay PND 803W
Wireless CarPlay and Android Auto
803W-a cutting-edge device designed to enhance your driving experience.
With 8.0" IPS touch screen display, CarPlay, Android Auto, FM transmitter and AUX, wireless rear camera system and light sensor.
This monitor delivers crystal-clear images and effortless navigation at your fingertips.
This product features an exclusive custom design for off-road vehicles, RVs and trucks. It is equipped with an 8-inch IPS high-definition screen, supports wireless CarPlay and Android Auto, and is compatible with both external cameras and wireless cameras.
USP
-
01
Exclusive private mode and design
-
02
8-inch IPS high-definition screen
-
03
with both external camera and wireless camera
GUI
SPECIFICATION
| 803W Specifications | |||
| General | |||
| Processor: | Dual core A53-1.2Ghz | ||
| FLASH： | 128MB | ||
| DDR: | 256MB | ||
| Display type: | Glass capacitive multi-touch IPS | ||
| Display size&resolution: | 8.0inch, 1280*800 | ||
| Display brightness: | 450Nit | ||
| Battery： | Cell battery（for RTC） | ||
| Camera Parameters | |||
| Front Camera | Optical Sensor | GC2053 | |
| Resolution/FPS | Onboard type, 1080p/25fps | ||
| Aperture/construction: | F2.0/2G2P | ||
| Wireless Rear Camera | BASEBAND SPEC | Power On | 3S Max |
| Latency | 150ms Max | ||
| Resolution/FPS | 1920*1080,30fps | ||
| CMOS Sensor | GC2053 (TBD) | ||
| voice sample rate | 16KHz/8KHz ADPCM/PCM | ||
| video frequency band | 20Hz~20kHz | ||
| system architecture | RISC (32Bit) SOC | ||
| RF SPEC | Operation frequency | 2406 ~ 2476MHz & 5250~5350MHz | |
| Impedance | 50Ω, Typ. | ||
| RF Bit Rate | Max 20Mbps | ||
| Modulation | OFDM/CCK | ||
| Hopping Channel | 4(2.4G)+24(5G) | ||
| Hopping Rate | 1200/S | ||
| Line of Sight Range | 300m | ||
| Receiving sensitivity | -86dBm | ||
| Loop recording | Front Camera:1min/3min/5min | ||
| Parking monitor: | N/A | ||
| Wireless connections&sensors | |||
| WiFi: | Support carplay or Android Auto | ||
| BT: | 4.2 | ||
| FM transmitter: | Yes | ||
| GPS: | N/A | ||
| G-sensor: | N/A | ||
| I/O Ports | |||
| Mic: | Yes-Electret MIC-1.5*4MM, -34DB | ||
| Speaker: | 8ohm,2W | ||
| Voice command: | Via Siri/Google assistant | ||
| AUX socket | Yes, 3.5mm | ||
| Rear Camera connector: | 2.5mm socket | ||
| Micro SD card slot: | Yes, up to 256GB | ||
| External GPS antenna socket | N/A | ||
| Power input： | Type C | ||
| Physical Buttons: | Power, Reset | ||
| Advanced features | |||
| Light sensor | Yes | ||
| ADAS | N/A | ||
| Power consumption: | |||
| Working voltage： | DC5V | ||
| Working current： | <1A | ||
| Quiescent current： | <10MA | ||
| Power supply: | Car charger or hardwire kit(optional) | ||
| Software and update | |||
| OS: | LINUX 4.9 | ||
| Firmware update: | Through Micro SD card, OTA will be available in future | ||
| Environment | |||
| Operating Temp： | （-10℃-70℃） | ||
| Storage Temp： | （-20℃-80℃） | ||
| Mechanical; | |||
| Product dimensions: | |||
| Product weigiht: | |||
| Install method: | Dashboard mount | ||
| Remark: If the wireless camera's power is connected to the reverse lamp cord，only rear view, no recording | |||
In The Box
Main device

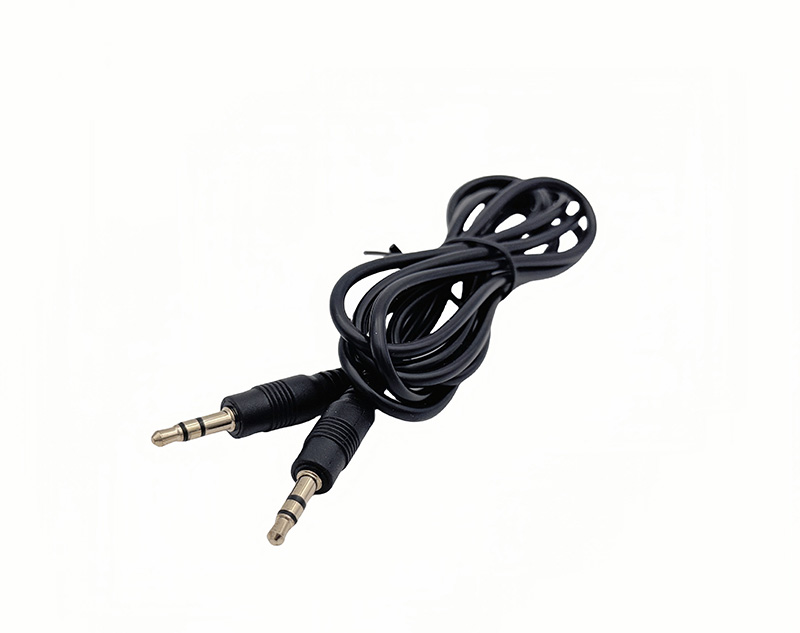

AUX cable
Car Charger

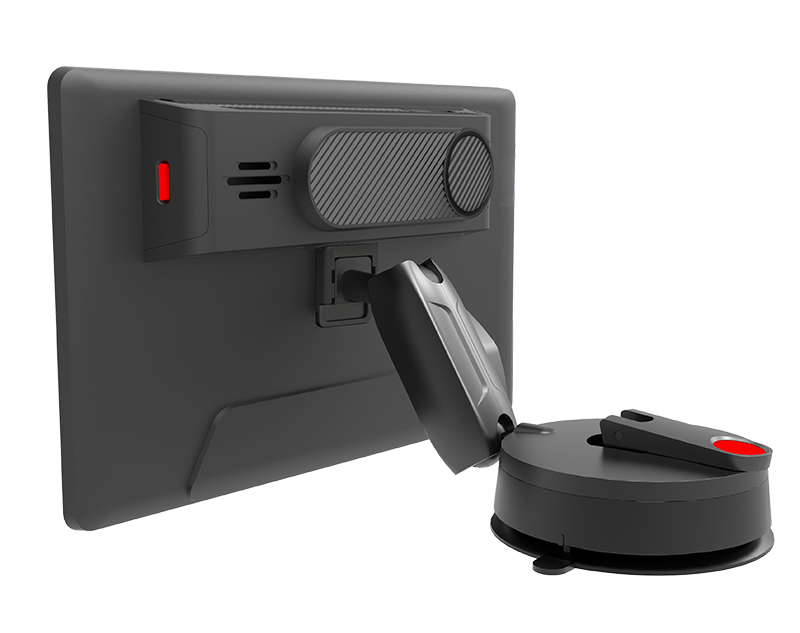

Suction Mount
User Manual
Wireless Rear Camera
Front Cam (Optional)
In Car Multi-Port Charger (Optional)
Accessories

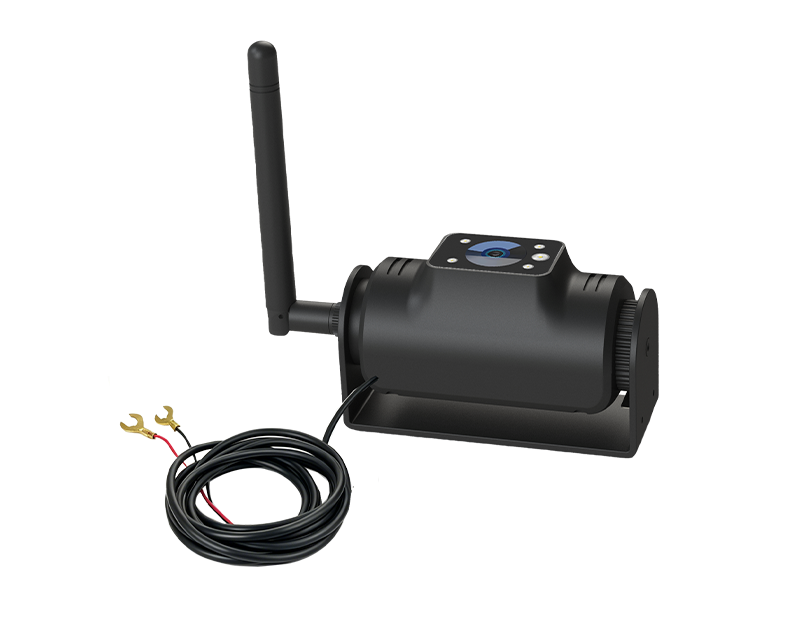

Wireless Rear Camera

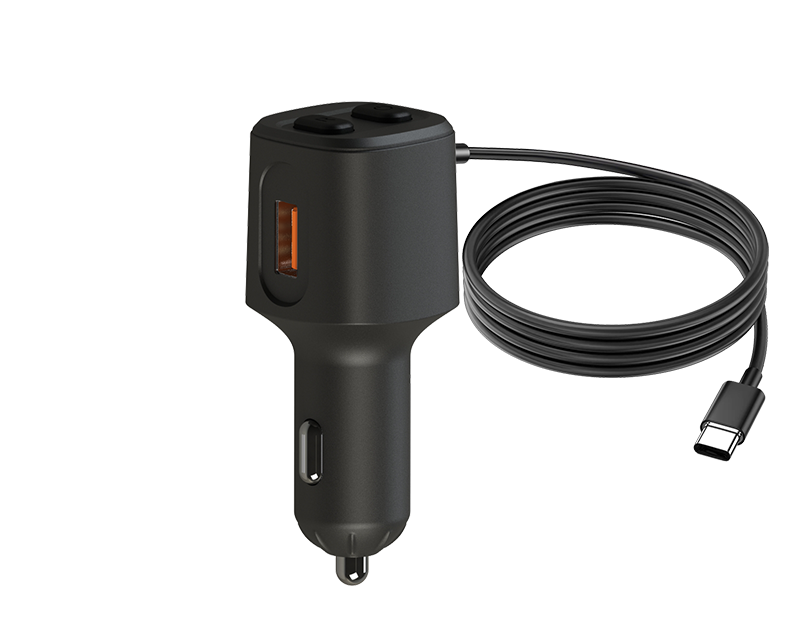

Car Charger

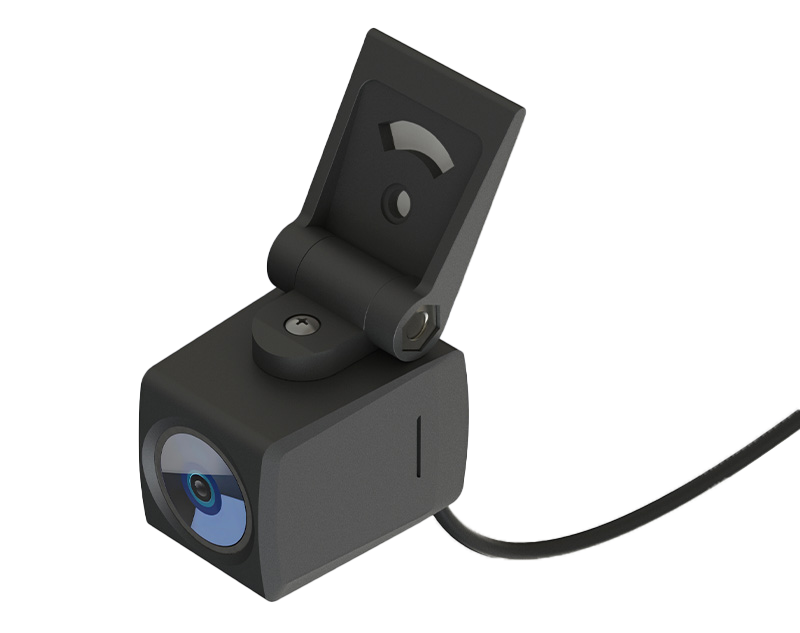

Front Cam (Optional)
AUX cable

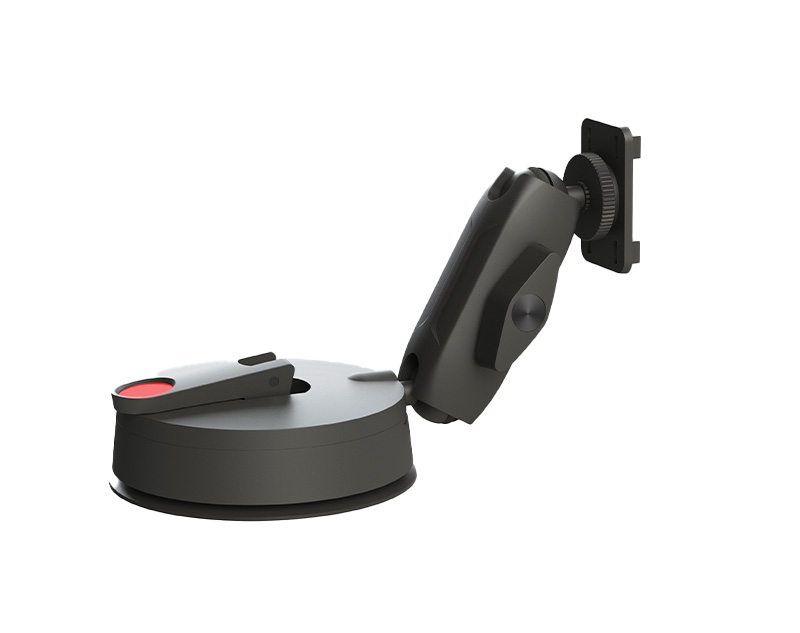

Suction Mount
Related Products
This product is specially designed for off-road, caravan and truck vehicles, offering a plug-and-play experience that quickly connects with your phone. Featuring an exclusive private mold design, with an 8-inch IPS high-definition display. Featuring built-in GPS and supporting wireless CarPlay/Android Auto.
This product is specially designed for off-road, caravan and truck, boasting an exclusive, private mold design. With an 8-inch IPS high-definition display, offering a vibrant and crisp visual experience , also it features built-in GPS and supports wireless CarPlay/Android Auto, seperated camera

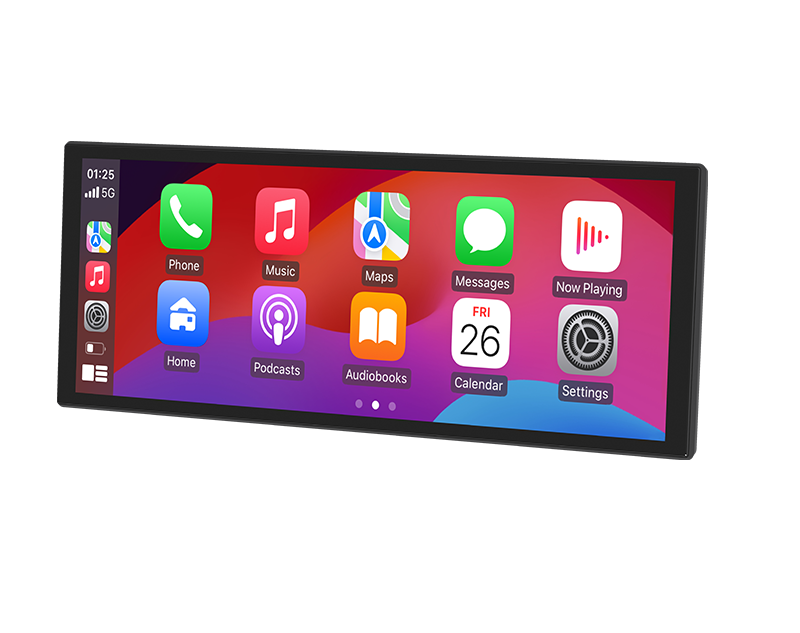

Featuring an exclusive private mold design, with an 10.25-inch IPS high-definition display, it provides a vibrant and clear visual experience. Featuring built-in GPS and supporting wireless CarPlay/Android Auto.

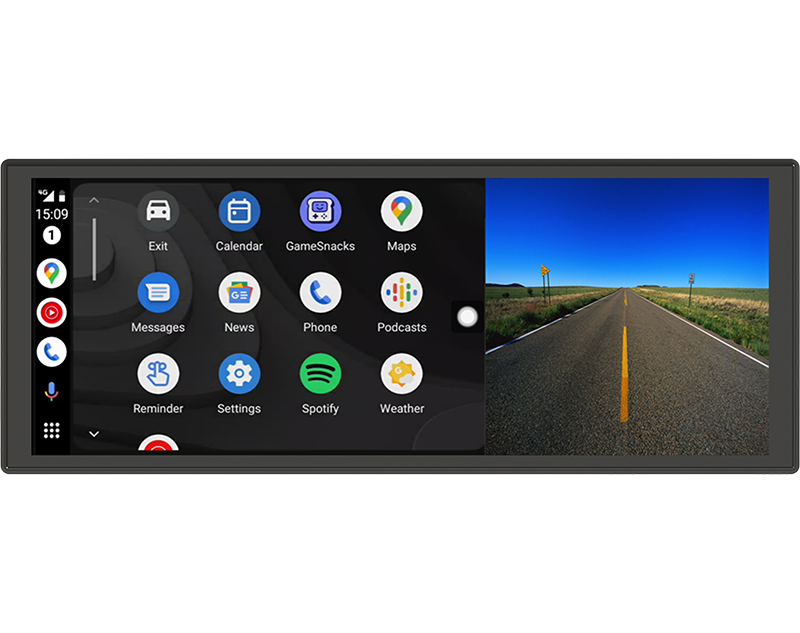

Featuring an 10.25-inch IPS high-definition display, it delivers a vibrant and crisp visual experience. Featuring built-in GPS and supporting wireless CarPlay/Android Auto.
